11

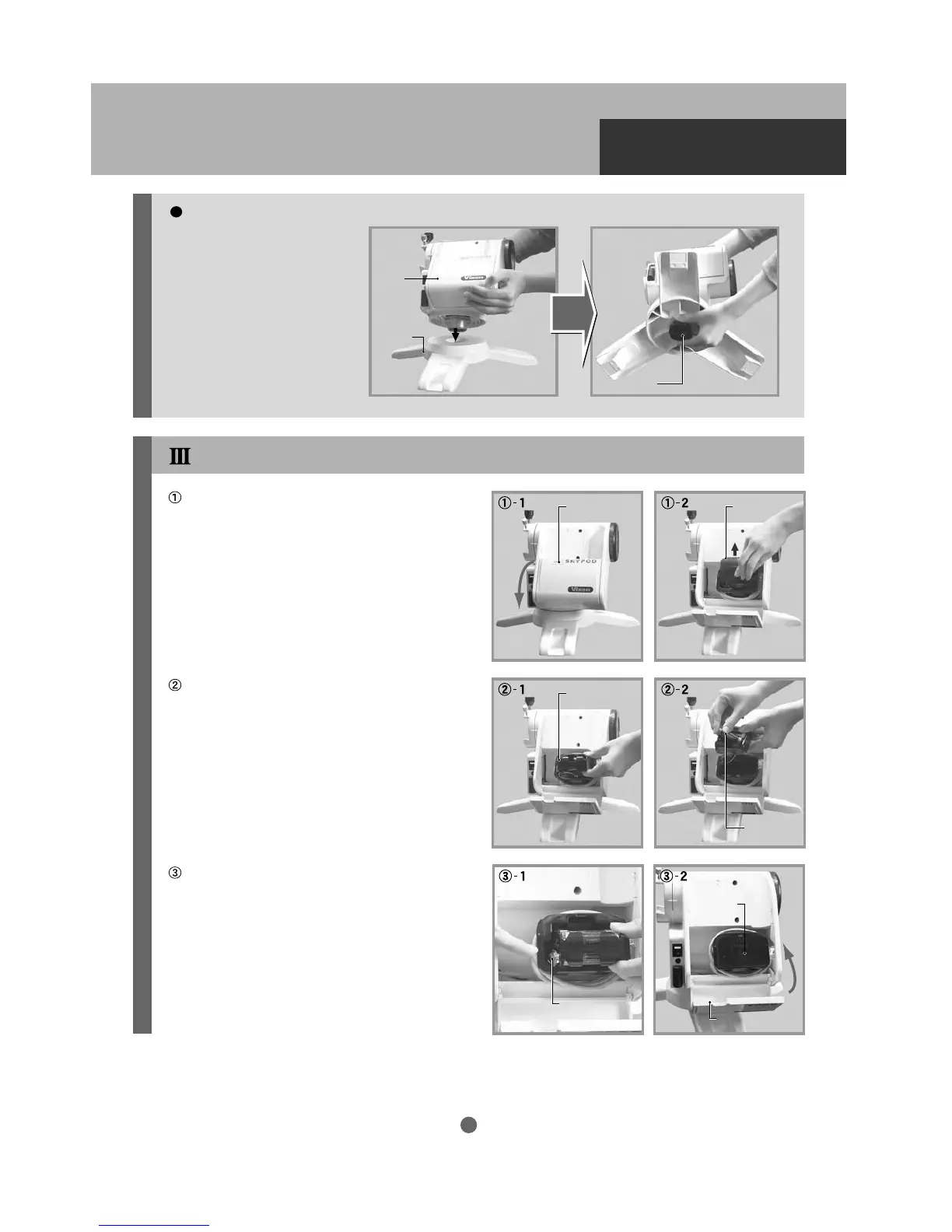

Hold the SKYPOD Mount over
the tabletop tripod head so that
the center shaft is above the
matching hole.
Place the SKYPOD Mount on
the tabletop tripod head so that
the two are flush. Tighten the
knob on the underside of the
tripod head firmly.
Attaching to the Tabletop Tripod
Install batteries into the battery pack on the SKYPOD Mount.
Locking KnobLocking Knob
PERPARATION
Setting up the telescope
SKYPOD
Mount
Tabletop
Tripod
SKYPOD
Mount
Tabletop
Tripod
Open the front cover to access the inner blue
battery case as shown in the figure. Open the
battery case by sliding off its top cover.
Take out the battery pack and insert the fresh
batteries into it. Do not mix up the polarity as
this may cause a failure.
Put the battery pack back into the blue battery
case. Turn the projection on the battery pack
so that it fits into the recess of the battery case
as shown in the figure below. Close the cover
as it was
Compartment
Cover
Battery Pack
Slide Cover
Compartment
Cover
Slide Cover
Projection on the
Battery Pack
Batteries
(AA x 8)
Compartment
Cover
Battery Pack
Slide Cover
Compartment
Cover
Slide Cover
Projection on the
Battery Pack
Batteries
(AA x 8)
