Vixen Skypod User Manual

14
PREPARATION
Back out the adjust-
ment screws on the
finder bracket to allow
passage of the finder
scope. (Make sure the
adjustment screws do
not fall off the bracket.)
Pull up the fixed stud
on the bracket ring so
that the finder tube can
slide into the bracket
ring from its eyepiece
end. Release the fixed
stud into the wide groo-
ve on the finder tube.
Loosen the finder brac-
ket lock screw on the
telescope.
Remove the two finder
bracket attaching screws
from the telescope.
Attach the bracket on
the finder scope as
shown in the figure.
Tighten the finder brac-
ket attaching screws
securely.
Attach the finder bracket
as shown in the figure.
Tighten the finder brac-
ket lock screw securely.
Tighten the two adjust-
ment screws so that the
finder scope is aligned
as shown in the figure.
Slide the rubber O-ring onto the eyepiece end
of the finder. There are two grooves on the
finder tube. Position the O-ring on the narrow
groove at the middle of the finder scope.

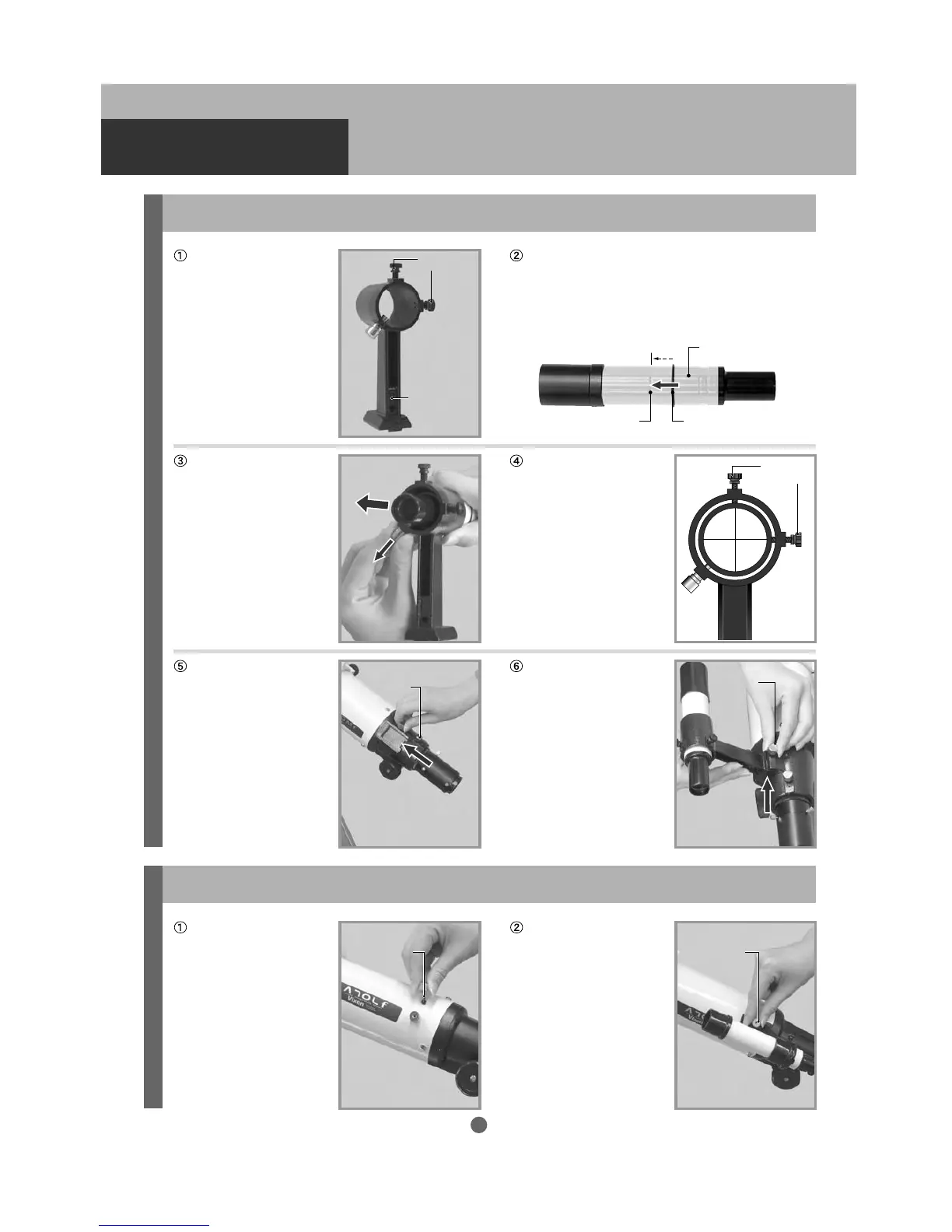

Attaching the Finder Scope (A80Mf or R130Sf)
Attaching the Finder Scope (A70Lf)
O-ringGroove
Fonder Scope
Adjustment
Screw
Finder Bracket
Lock Screw
Finder Bracket
Attaching
Screws
Finder Bracket
Attaching
Screws
Finder Bracket
Attaching
Screws
Finder Bracket
Attaching
Screws
Finder Bracket
Lock Screw
Finder Bracket
Adjustment
Screw
Finder Bracket
Lock Screw
Finder Bracket
Lock Screw
Finder Bracket
Adjustment
Screw
