Connecting Your VCR or Video Camera
Note: Refer to your VCR or Video Camera user manual for more information about the
video output requirements of the product.
1. Turn off the power to your HDTV and VCR or video camera.

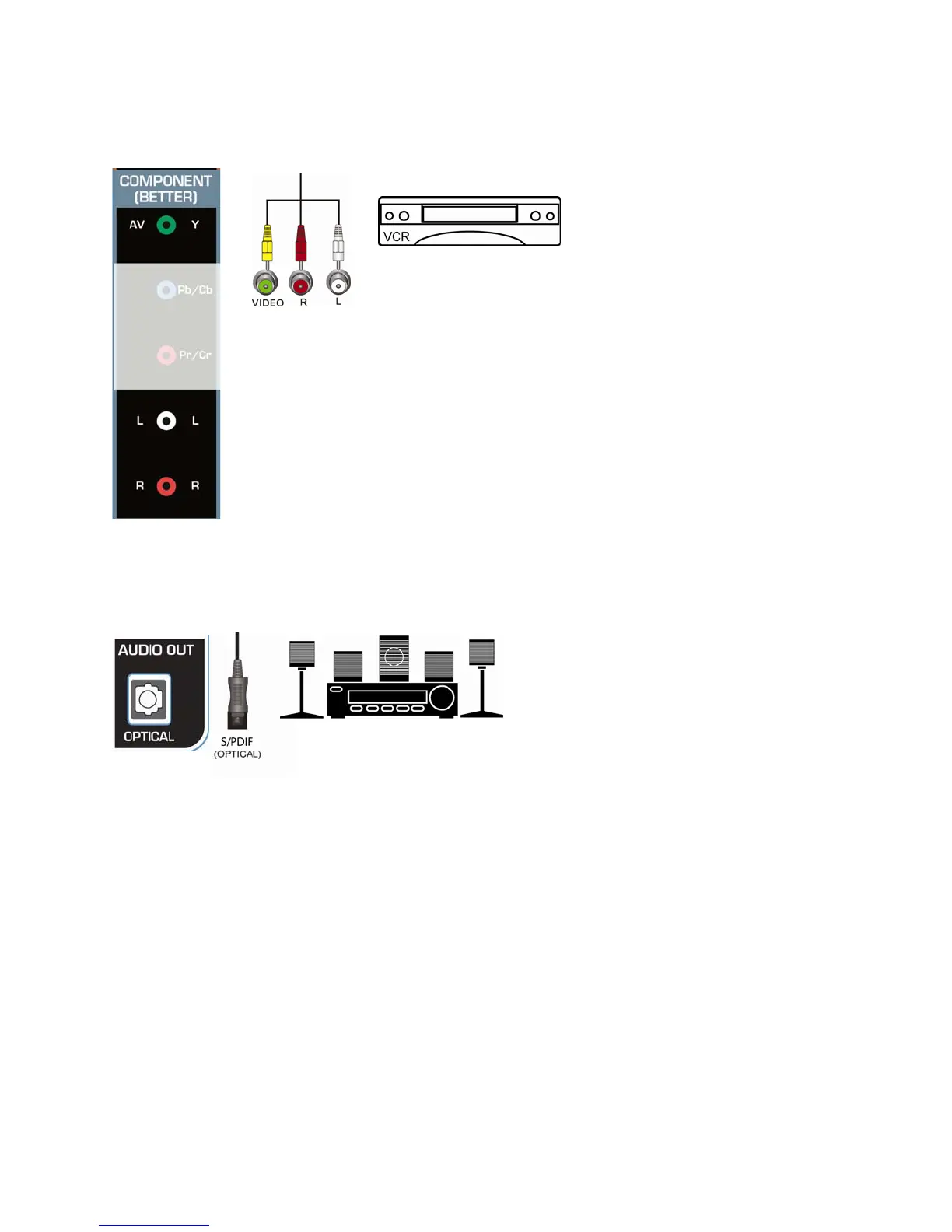

2. Connect the yellow video cable connector from your VCR or video camera to the
green Component Y jack on the side of your HDTV.
3. Connect the audio cables (white and red) from your VCR or video camera to the
COMPONENT L and R AUDIO jacks on your HDTV.
4. Turn on the power to your HDTV and VCR or video camera.
5. Select Comp/AV using the INPUT button on the remote control or side of your
HDTV.
Connecting a Home Theater System
If your sound system has an S/PDIF (optical) digital audio input you can connect it from your sound
system to the OPTICAL digital audio out on your HDTV. This is active when receiving audio with the
programs being viewed no matter what input is being used.
1. Connect one end of the optical cable to optical connectors on the Home Theater and the other end to
the OPTICAL jack on your HDTV.
2. Turn on the power to your HDTV and home theater.
3. Change the input on your Home Theater to optical. See your Home Theater user manual for more
information.

Vizio E320VP Specifications

General

Response time	9 ms
Display diagonal	32 \
Progressive scan	No
Display resolution	1366 x 768 pixels
Display technology	LCD
Supported video modes	1080i, 480i, 480p, 720p
Contrast ratio (dynamic)	100000:1
Display number of colors	1.073 billion colors
Supported graphics resolutions	1024 x 768 (XGA), 1360 x 768 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Certification	CSA, CSA-US, FCC Class B
HDCP	Yes
RF ports quantity	1
SCART ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
Panel mounting interface	100 x 100 mm
Power consumption (typical)	58 W
Power consumption (PowerSave)	1 W
Image formats supported	JPG
RMS rated power	10 W
Analog signal format system	NTSC
Digital signal format system	ATSC

Weight and Dimensions

Depth (with stand)	186.6 mm
Width (with stand)	770 mm
Height (with stand)	547.4 mm
Weight (with stand)	6400 g
Depth (without stand)	33.7 mm
Weight (without stand)	6000 g
