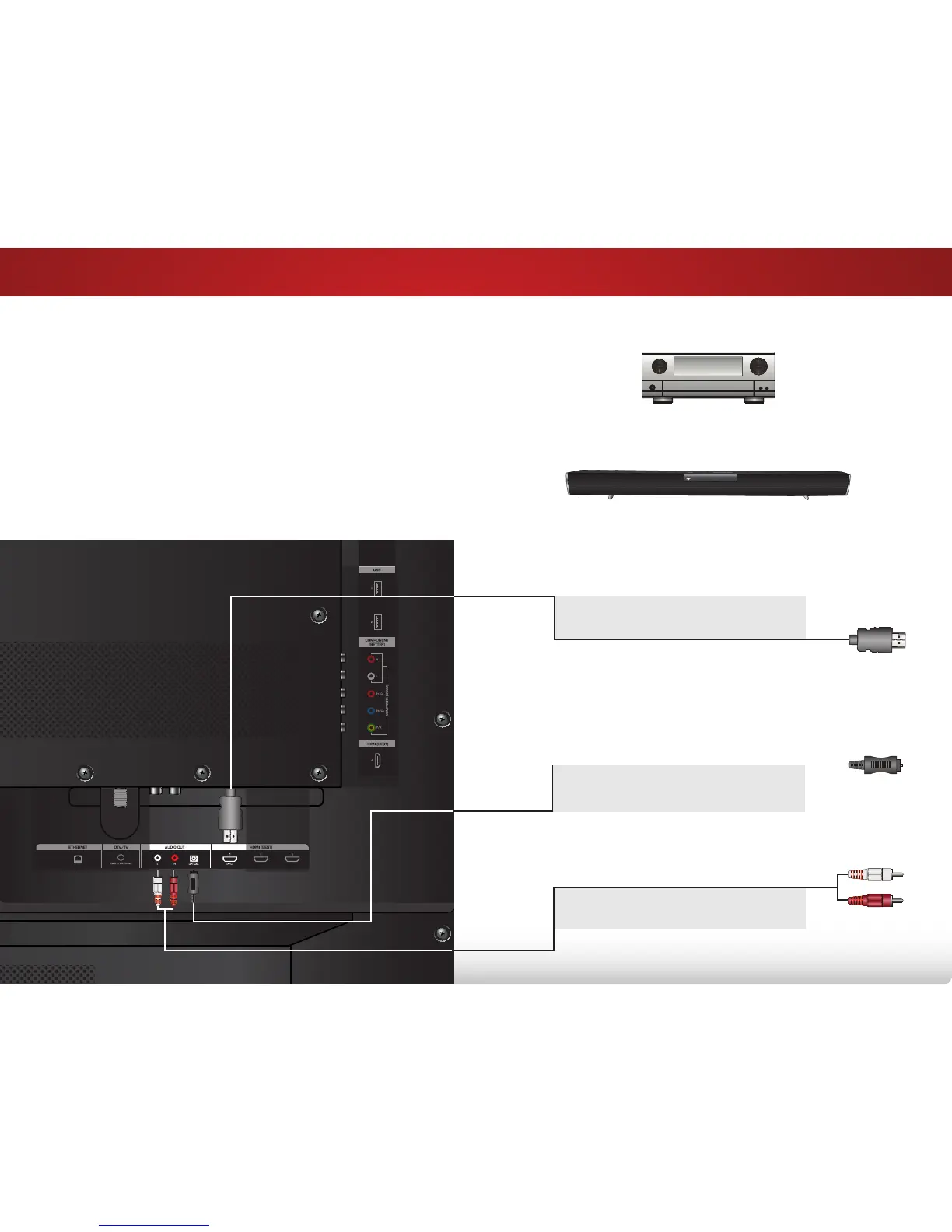

ConneCting An AuDio DeviCe
Home Audio Receiver
VIZIO Sound Bar
Your TV can output sound to an audio device, such as a receiver
or sound bar.
1. Verify that your device has an audio port that matches an
available port on the TV (Optical, RCA, etc).
2. Turn the TV and your audio device off.
3. Connect the appropriate cable (not included) to the TV and
the device.
4. Turn the TV and your device on.
BETTER
OPTICAL/SPDIF CABLE
• PCM STREAM
• DOLBY DIGITAL 5.1 CHANNEL
BEST
HDMI CABLE
• ARC 2-WAY COMMUNICATION
• 2.0-5.1 DIGITAL AUDIO
• PCM, DOLBY DIGITAL
GOOD
RCA CABLE
• ANALOG STEREO CONNECTION
• 2.0 CHANNEL

Vizio M551d-A2R Specifications

General

Display diagonal	55 \
LED backlighting type	-
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	Yes
3D glasses quantity	8
RMS rated power	15 W
Number of speakers	2
PC in (D-Sub)	No
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Product color	Black
Panel mounting interface	400 x 400 mm
Power consumption (standby)	1 W
Power consumption (typical)	91 W
Sustainability certificates	ENERGY STAR
Package depth	137.9 mm
Package width	1407 mm
Package height	915.9 mm
Package weight	27500 g

Weight and Dimensions

Depth (with stand)	257.05 mm
Height (with stand)	776.2 mm
Weight (with stand)	22730 g
Depth (without stand)	44.45 mm
Width (without stand)	1253 mm
Height (without stand)	723.9 mm
Weight (without stand)	20210 g
