Vizio M551d-A2R User Manual

3
14

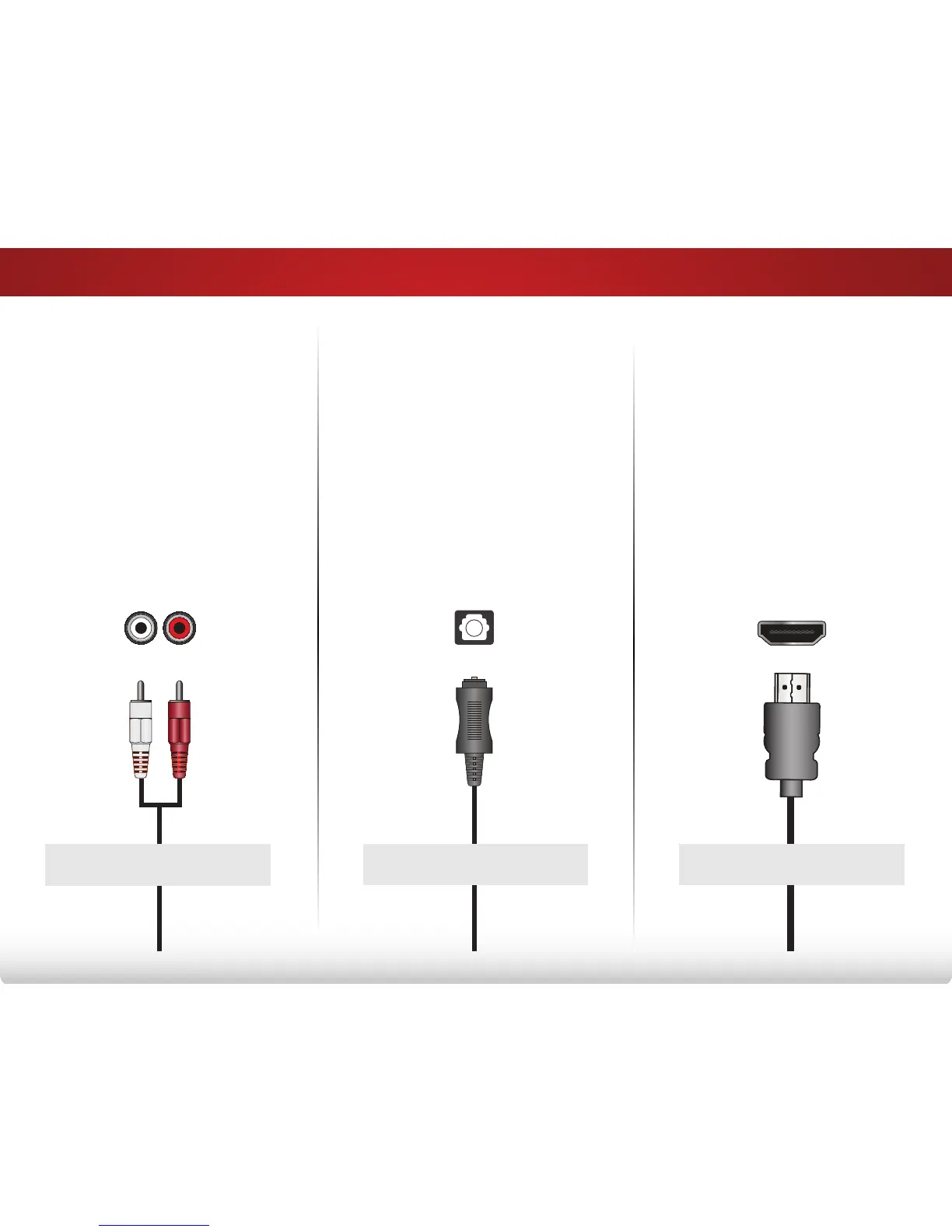

HDMI CABLE
HDMI technology transmits crystal-clear digital
multi-channel surround audio through a single
HDMI cable. Audio Return Channel-enabled
(ARC) TVs allow audio to be sent over an already
connected HDMI cable, eliminating the need
for a separate audio cable. See Connecting an
Audio Device - ARC on page 15.
OPTICAL/SPDIF CABLE
Optical/SPDIF cables transmit audio signals as
pulses of light through a cable made of plastic
fibers. Audio signals are digitally transmitted
between devices.
RCA CABLE
AV cables (or Composite cables) are the
traditional way of connecting your devices to
your audio device. Audio signals are sent over
the red and white connectors.
GOOD BETTER
• ARC 2-way Communication
(Auto setup)
• PCM, Dolby Digital
• 2.0-5.1 Scaleable Lossless
Digital Audio Connection
• Audio and Video Signals
• PCM Stream (Lossless)
• Dolby Digital 5.1 Channel
• Digital Connection
• Audio Signal Only
• Quality Stereo Connection
• 2.0 Channel
• Analog Connection
• Audio Signal Only
BEST
HDMI
COMPONENT VIDEO
L R
Optical/SPDIF HDMI
DIGITAL OPTICAL AUDIO
CONNECTING AN AUDIO DEVICE - AUDIO CABLE TYPES

Vizio M551d-A2R Specifications

General

Display diagonal	55 \
LED backlighting type	-
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	Yes
3D glasses quantity	8
RMS rated power	15 W
Number of speakers	2
PC in (D-Sub)	No
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Product color	Black
Panel mounting interface	400 x 400 mm
Power consumption (standby)	1 W
Power consumption (typical)	91 W
Sustainability certificates	ENERGY STAR
Package depth	137.9 mm
Package width	1407 mm
Package height	915.9 mm
Package weight	27500 g

Weight and Dimensions

Depth (with stand)	257.05 mm
Height (with stand)	776.2 mm
Weight (with stand)	22730 g
Depth (without stand)	44.45 mm
Width (without stand)	1253 mm
Height (without stand)	723.9 mm
Weight (without stand)	20210 g
