VIZIO VOJ320F1A User Manual
Version 8/25/2008 25
www.VIZIO.com

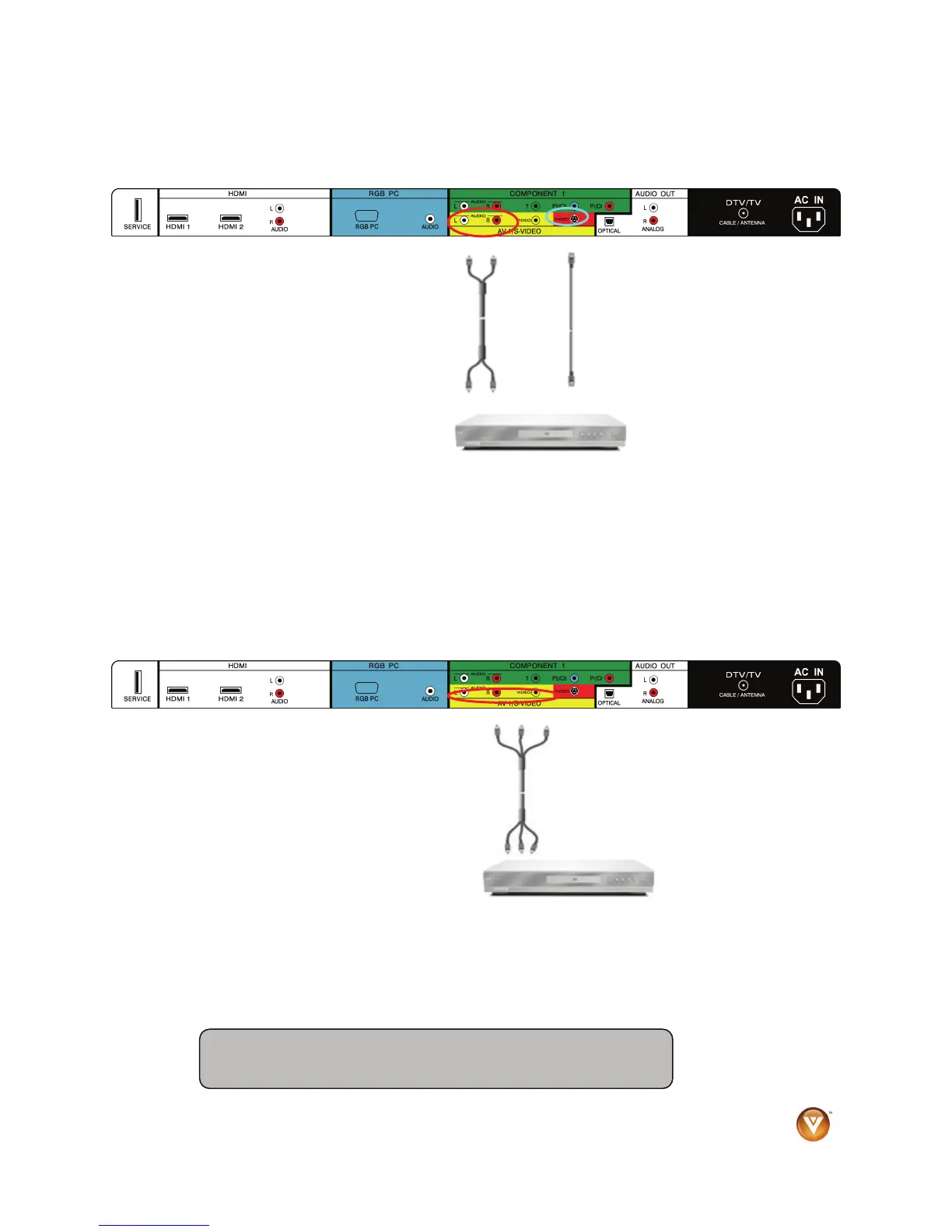

2.5.3 Using S-Video (AV1/S-VIDEO)
Connecting your DVD Player (Good):
1. Turn off the power to the HDTV
and DVD player.
2. Connect the S-Video jack on the
rear of your DVD player to the S-
Video jack in the AV1/S-VIDEO
input (yellow/red area) at the rear
of the HDTV.
3. Connect an audio cable (white
and red connectors) to the audio output connectors associated with the S-Video output on
your DVD player and connect the other end to the audio connectors associated with the AV
input (yellow/red area) at the rear of the HDTV.
4. Turn on the power to the HDTV and DVD player.
5. Select AV using the INPUT button on the remote or side of the HDTV, or directly by pressing
the AV button on the Remote Control.
2.5.4 Using Composite (AV) Video Input
Connecting your DVD Player (Good) :
Turn off the power to the HDTV and DVD player.
1. Connect the Video (yellow color)
connector on your DVD player to the
Video (yellow color) connector in the
AV1/S-VIDEO input (yellow/red color
area - row of connectors furthest from
you when viewing from the rear of the
HDTV) at the rear of the HDTV.
2. Connect the R (red color) and L (white
color) audio connectors on your DVD player to the corresponding R (red color) and L (white
color) audio input connectors in the AV1 input (yellow/red color area - row of connectors
furthest from you when viewing from the rear of the TV) on the rear of the HDTV.
3. Turn on the power to the HDTV and DVD Player.
4. Select AV using the INPUT button on the remote or side of the HDTV, or directly by pressing
the AV button on the Remote Control.
Note: Refer to your DVD player user manual for more
information about the video output requirements of the product.
