Vizio VX32L User Manual

VlZlOVX32LHDTVUserManual

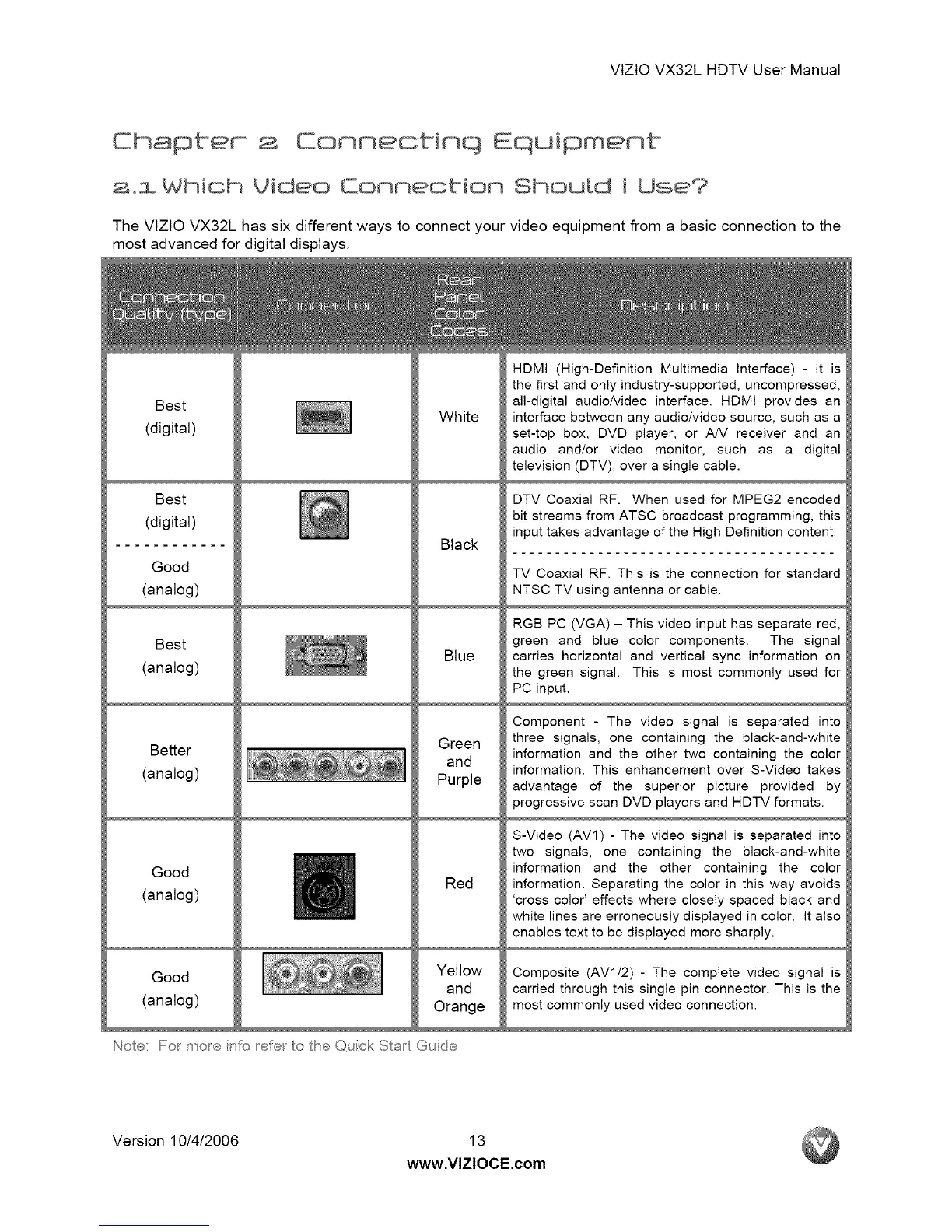

Chapter 2 Connectinq Equipment
a°i Which Video Connection Should I Use?
The VlZlO VX32L has six different ways to connect your video equipment from a basic connection to the
most advanced for digital displays.
Best
(digital)
Best
(digital)
Good
(analog)
Best
(analog)
Better
(analog)
Good
(analog)
Good
(analog)
White
Black
Blue
Green
and
Purple
Red
Yellow
and
Orange
Noe: Fo_ mole intY_re/b_ to the Quick Sta/ Guide
HDMI (High-Definition Multimedia Interface) - It is
the first and only industry-supported, uncompressed,
all-digital audio/video interface. HDMI provides an
interface between any audio/video source, such as a
set-top box, DVD player, or A/V receiver and an
audio and/or video monitor, such as a digital
television (DTV), over a single cable.
DTV Coaxial RF. When used for MPEG2 encoded
bit streams from ATSC broadcast programming, this
input takes advantage of the High Definition content.
TV Coaxial RF. This is the connection for standard
NTSC TV using antenna or cable.
RGB PC (VGA) - This video input has separate red,
green and blue color components. The signal
carries horizontal and vertical sync information on
the green signal. This is most commonly used for
PC input.
i
Component - The video signal is separated into
three signals, one containing the black-and-white
information and the other two containing the color
information. This enhancement over S-Video takes
advantage of the superior picture provided by
progressive scan DVD players and HDTV formats.
S-Video (AVl) - The video signal is separated into
two signals, one containing the black-and-white
information and the other containing the color
information. Separating the color in this way avoids
'cross color' effects where closely spaced black and
white lines are erroneously displayed in color. It also
enables text to be displayed more sharply.
Composite (AVli2) - The complete video signal is
carried through this single pin connector. This is the
most commonly used video connection.
Version 10/4/2006 13
www.VlZlOCE.com

Vizio VX32L Specifications

Display

native resolution	1366 x 768
brightness	500 cd/m2
contrast ratio	1200:1
response time	8 ms

Connectivity

HDMI inputs	2
component inputs	2
S-Video inputs	1
composite video inputs	2
RGB (PC) inputs	1

Weight and Dimensions

diagonal screen size	32 inches
width with stand	31.4 inches
height with stand	23.3 inches
depth with stand	8.6 inches
width without stand	31.4 inches
height without stand	22.1 inches
depth without stand	3.9 inches
weight with stand	32 lbs
weight without stand	31 lbs
