VlZlO VX32L HDTV User Manual

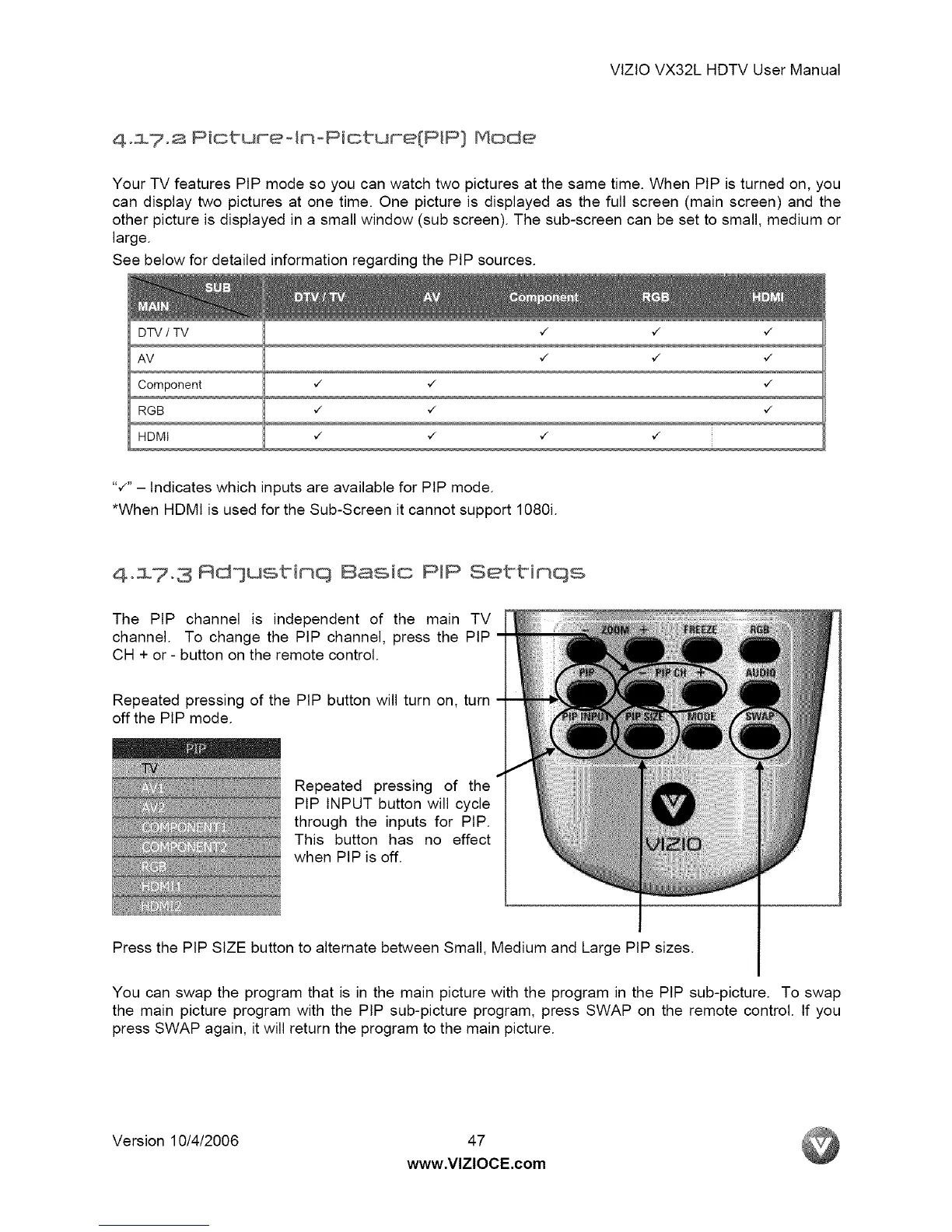

4.17._ Pictureolnopicture{PIP] Mode
Your TV features PIP mode so you can watch two pictures at the same time. When PIP is turned on, you
can display two pictures at one time. One picture is displayed as the full screen (main screen) and the
other picture is displayed in a small window (sub screen). The sub-screen can be set to small, medium or
large.
See below for detailed information regarding the PIP sources.
DTV / TV ,/ ,/ ,/
AV "/ "/ "/
Component ./ ./ ./
RGB ,/ ,/ ,/
HDMI ,/ ,/ ,/ ,/
"¢" - Indicates which inputs are available for PIP mode.
*When HDMt is used for the Sub-Screen it cannot support 1080i.
4.17.3 Adjusting Basic PMP Settinqs
The PIP channel is independent of the main TV
channel. To change the PIP channel, press the PIP
CH + or - button on the remote control.
Repeated pressing of the PIP button will turn on, turn
off the PIP mode.
Repeated pressing of the
PIP INPUT button will cycle
through the inputs for PIP.
This button has no effect
when PIP is off.
Press the PIP SIZE button to alternate between Small, Medium and Large PIP sizes.
You can swap the program that is in the main picture with the program in the PIP sub-picture. To swap
the main picture program with the PIP sub-picture program, press SWAP on the remote control. If you
press SWAP again, it will return the program to the main picture.
Version 10/4/2006 47
www.VlZlOCE.com

Vizio VX32L Specifications

Display

native resolution	1366 x 768
brightness	500 cd/m2
contrast ratio	1200:1
response time	8 ms

Connectivity

HDMI inputs	2
component inputs	2
S-Video inputs	1
composite video inputs	2
RGB (PC) inputs	1

Weight and Dimensions

diagonal screen size	32 inches
width with stand	31.4 inches
height with stand	23.3 inches
depth with stand	8.6 inches
width without stand	31.4 inches
height without stand	22.1 inches
depth without stand	3.9 inches
weight with stand	32 lbs
weight without stand	31 lbs
