VlZlOVX32LHDTVUserManual

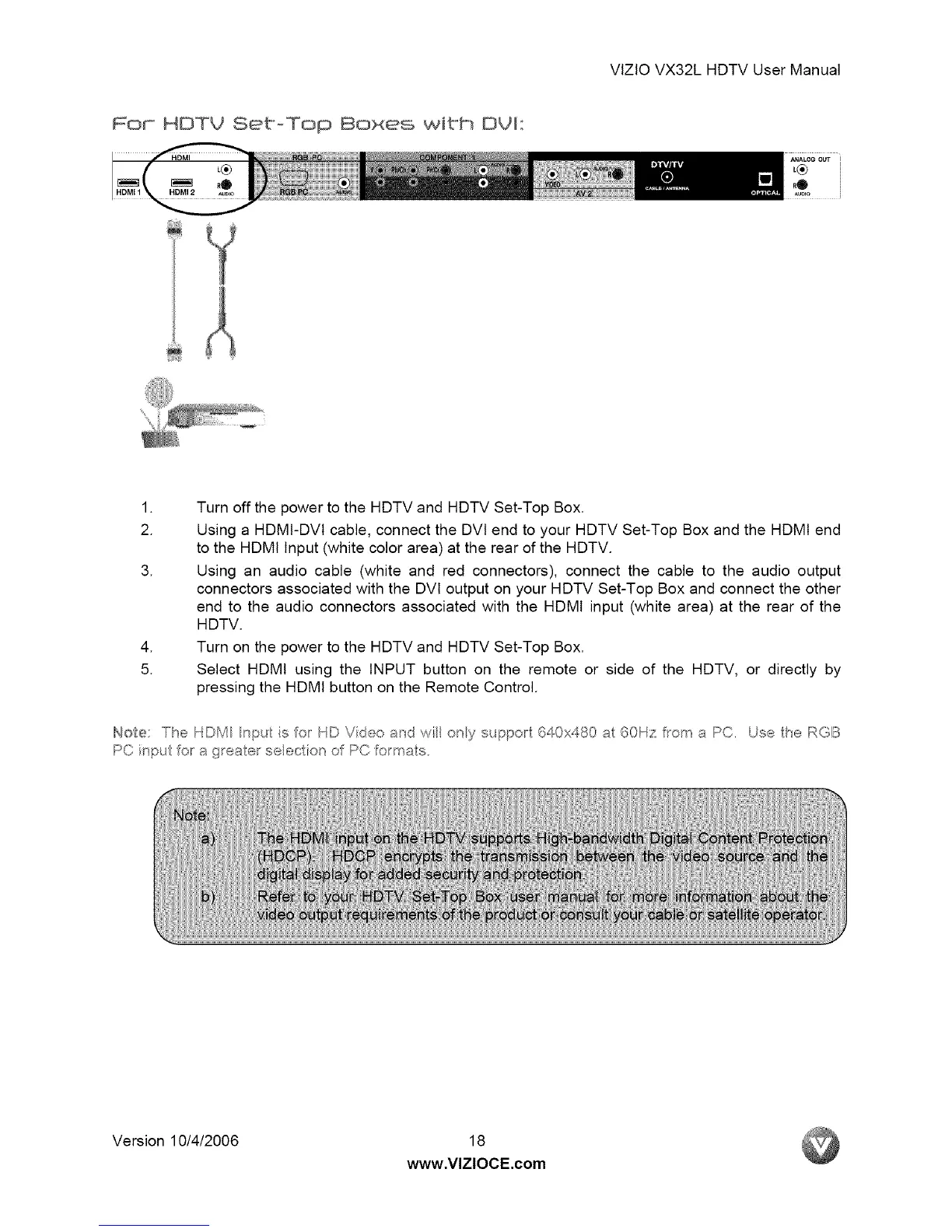

Fore HDTV Set-Top Boxes with OV_ _
I.
2.
.
.
5.
Turn off the power to the HDTV and HDTV Set-Top Box.
Using a HDMI-DVl cable, connect the DVl end to your HDTV Set-Top Box and the HDMI end
to the HDMI Input (white color area) at the rear of the HDTV.
Using an audio cable (white and red connectors), connect the cable to the audio output
connectors associated with the DVl output on your HDTV Set-Top Box and connect the other
end to the audio connectors associated with the HDMI input (white area) at the rear of the
HDTV.
Turn on the power to the HDTV and HDTV Set-Top Box.
Select HDMI using the INPUT button on the remote or side of the HDTV, or directly by
pressing the HDMt button on the Remote Control.
Hote: The HDM npu[ is [or HD Video and wi o_y suppo_ 640x480 a[ 60Hz [ro__ a PC. Use fie RGB
PC inpu or a g_eae_seeclio_ _ o PC [o_mas.
_iiii
Version 10/4/2006 18
www,VlZlOCE,com

Other manuals for Vizio VX32L

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Vizio VX32L and is the answer not in the manual?

Vizio VX32L Specifications

Display IconDisplay
native resolution1366 x 768
brightness500 cd/m2
contrast ratio1200:1
response time8 ms
Connectivity IconConnectivity
HDMI inputs2
component inputs2
S-Video inputs1
composite video inputs2
RGB (PC) inputs1
Weight and Dimensions IconWeight and Dimensions
diagonal screen size32 inches
width with stand31.4 inches
height with stand23.3 inches
depth with stand8.6 inches
width without stand31.4 inches
height without stand22.1 inches
depth without stand3.9 inches
weight with stand32 lbs
weight without stand31 lbs
