Vizio VX32L User Manual

VlZlOVX32LHDTVUserManual

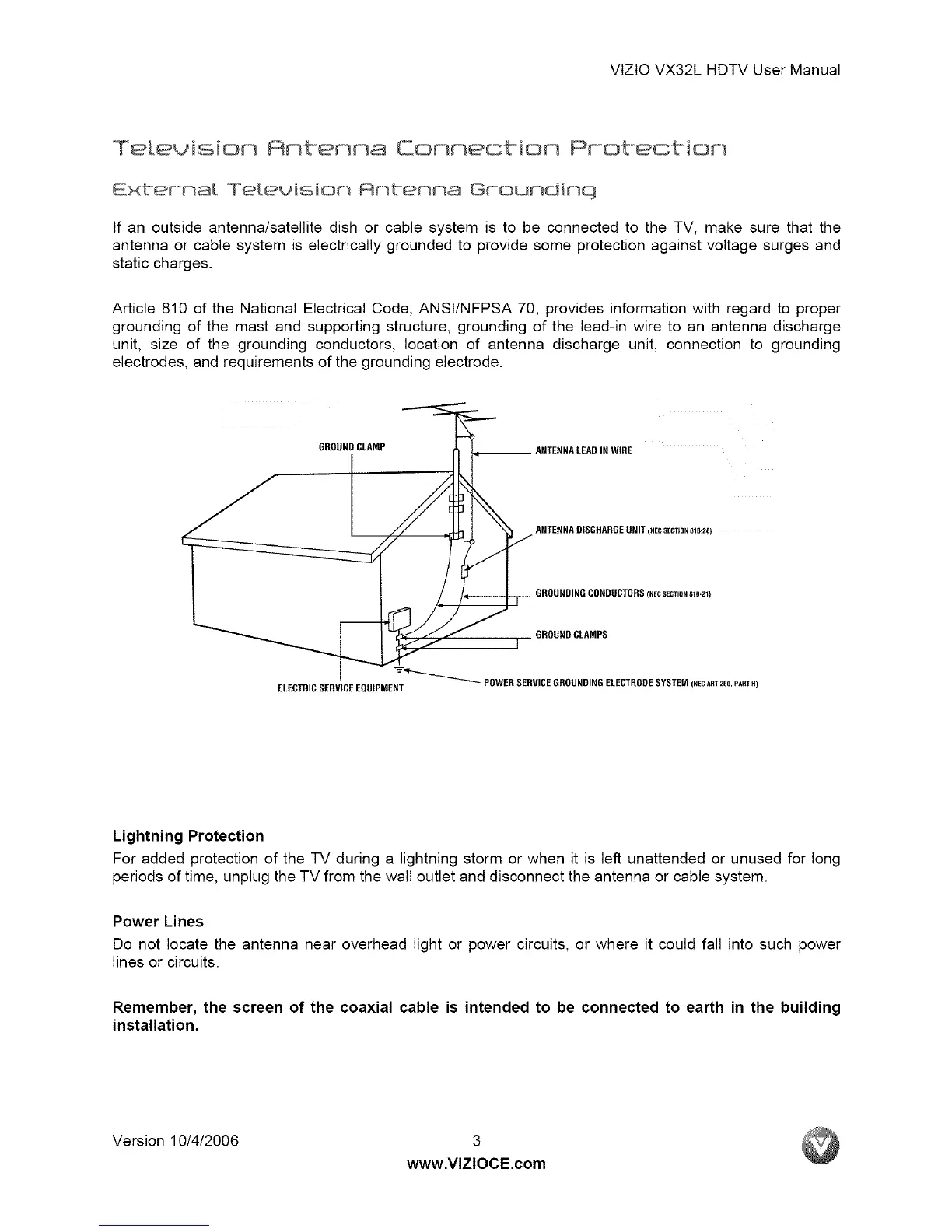

Tetevision Antenna Connection Protection
External Television Antenna Groundinq
If an outside antenna/satellite dish or cable system is to be connected to the TV, make sure that the
antenna or cable system is electrically grounded to provide some protection against voltage surges and
static charges.
Article 810 of the National Electrical Code, ANSt/NFPSA 70, provides information with regard to proper
grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge
unit, size of the grounding conductors, location of antenna discharge unit, connection to grounding
electrodes, and requirements of the grounding electrode.
GROUNDCLAMP ANTENNALEADINWIRE
__ ANTENNA DISCHARGE UNIT (NECSECTI_N81_20}
GROUNDING CONDUCTORS (NEC SECTION BID_21}
GROUND CLAMPS
I
ELECTRIC SERVICE EQUIPMENT
POWER SERVICE GROUNDING ELECTRODE SYSTEM (NE¢,_'r_o, P_ X)
Lightning Protection
For added protection of the TV during a lightning storm or when it is left unattended or unused for long
periods of time, unplug the TV from the wall outlet and disconnect the antenna or cable system.
Power Lines
Do not locate the antenna near overhead light or power circuits, or where it could fall into such power
lines or circuits.
Remember, the screen of the coaxial cable is intended to be connected to earth in the building
installation.
Version 10/4/2006 3
www.VlZlOCE.com

Vizio VX32L Specifications

Display

native resolution	1366 x 768
brightness	500 cd/m2
contrast ratio	1200:1
response time	8 ms

Connectivity

HDMI inputs	2
component inputs	2
S-Video inputs	1
composite video inputs	2
RGB (PC) inputs	1

Weight and Dimensions

diagonal screen size	32 inches
width with stand	31.4 inches
height with stand	23.3 inches
depth with stand	8.6 inches
width without stand	31.4 inches
height without stand	22.1 inches
depth without stand	3.9 inches
weight with stand	32 lbs
weight without stand	31 lbs
