VIZIO VX37L HDTV10A User Manual
Version 1/25/2007 16
www.VIZIO.com

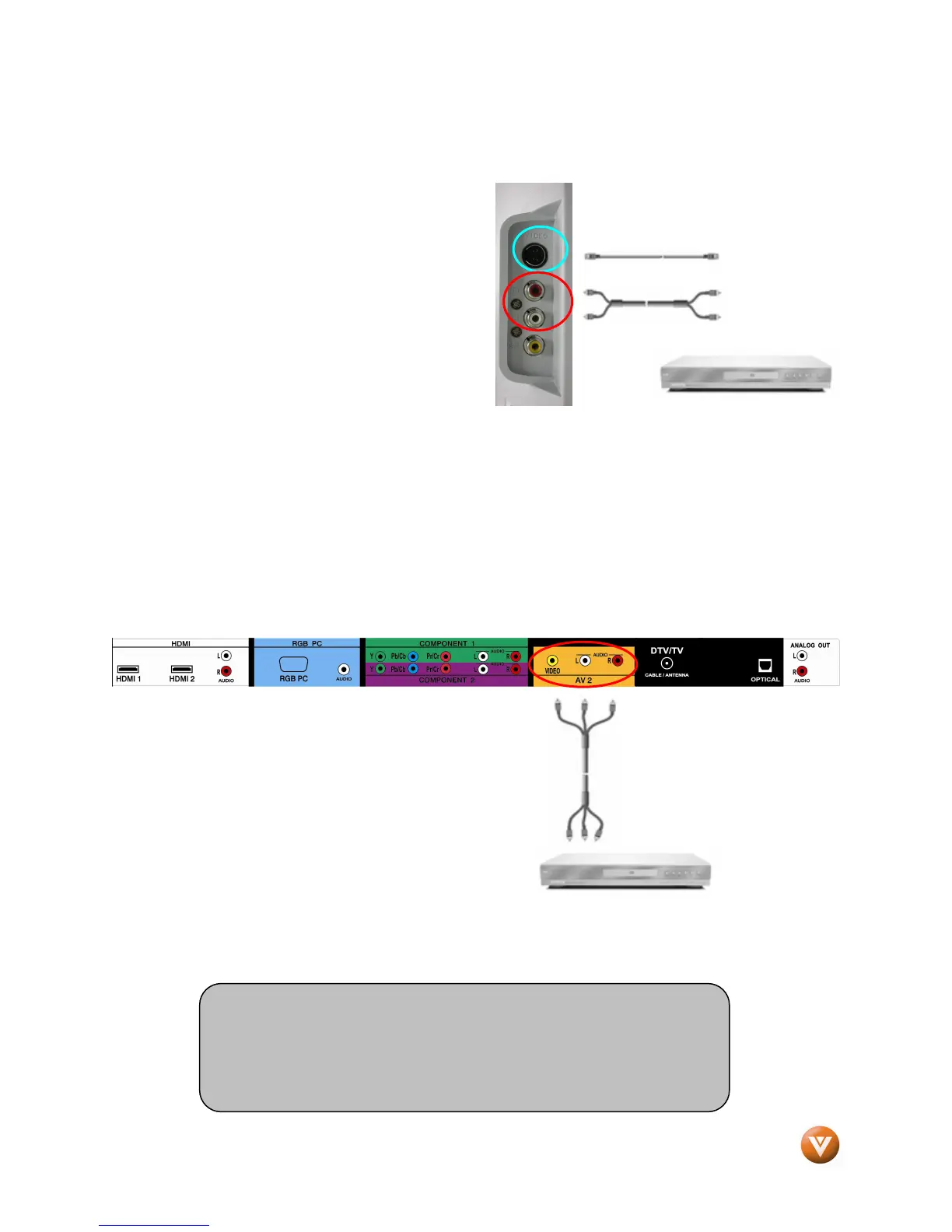

2.2.3 Using S-Video (AV1)
Connecting your DVD Player (Good):
1. Turn off the power to the HDTV and DVD
player.
2. Connect the S-Video jack on the rear of
your DVD player to the S-Video jack in
the AV1 group on the side of the HDTV.
3. Connect an audio cable (white and red
connectors) to the audio output
connectors associated with the S-Video
output on your DVD player and connect
the other end to the audio connectors associated with the AV1 input on the side of the HDTV.
4. Turn on the power to the HDTV and DVD player.
5. Select AV1 using the INPUT button on the remote or side of the HDTV, or directly by
pressing the AV button on the Remote Control.
2.2.4 Using Composite (AV) Video
Connecting your DVD Player (Good) :
1. Turn off the power to the HDTV and DVD
player.
2. Connect the Video (yellow color) connector on
your DVD player to the Video (yellow color)
connector in the AV2 group (yellow color area).
3. Connect the R (red color) and L (white color)
audio connectors on your DVD player to the
corresponding R (red color) and L (white color)
audio input connectors in the AV2 group
(yellow color area).
4. Turn on the power to the HDTV and DVD Player.
5. Select AV2 using the INPUT button on the remote or side of the HDTV, or directly by
pressing the AV button on the Remote Control.
Note:
a) You may use the AV1 input on the side if you wish, as long
as you are not already using it for the S-Video input.
b) Refer to your DVD player user manual for more information
about the video output requirements of the product.
To Next Page
