22”
24”
With back ventilation Without back ventilation

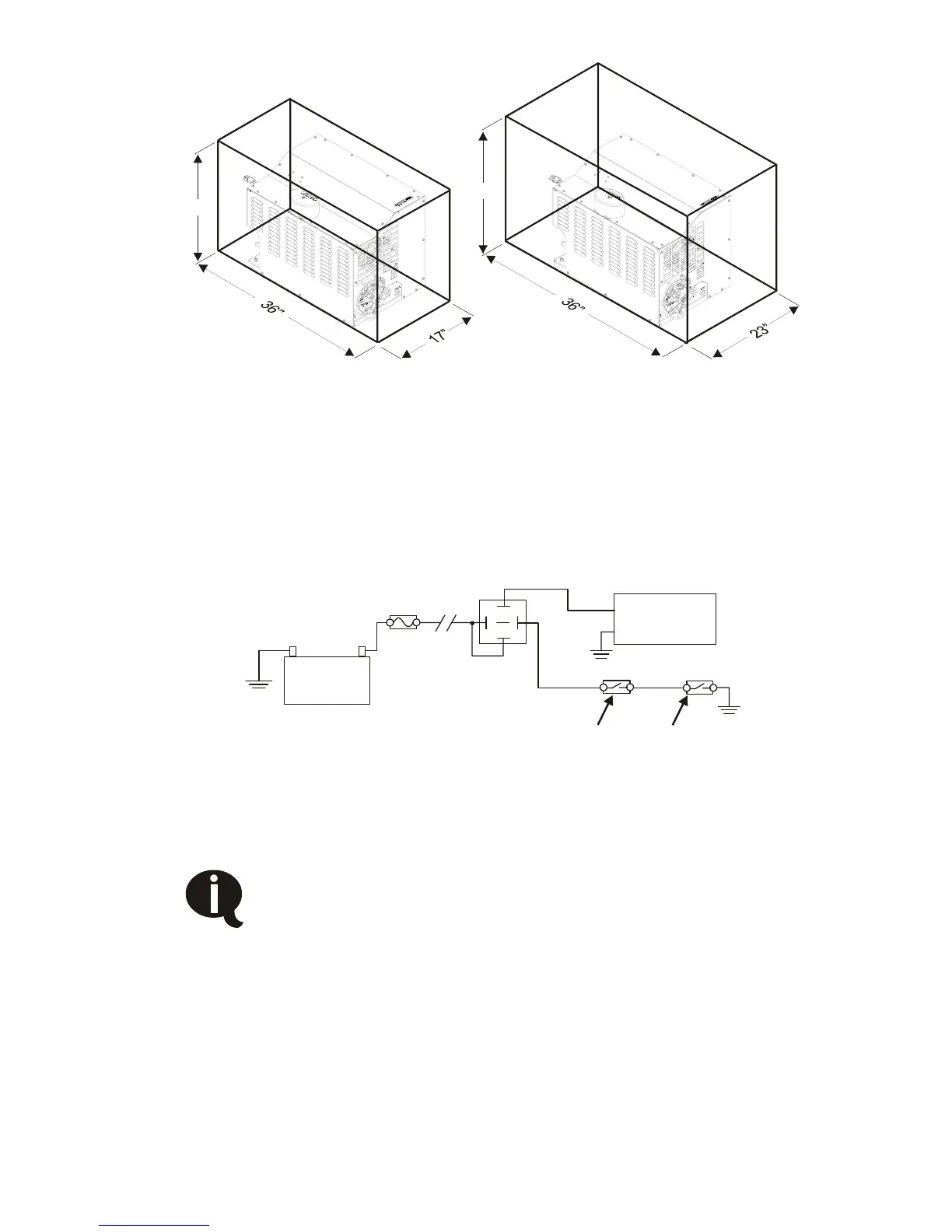

Figure 8 – Recommended enclosure size
If the PREDATAIR60 is mounted inside a service body with a door
that needs to be manually opened to provide ventilation, install a
switch on the door so that the compressor will only operate when the
door is open (Figure 9).
Battery
Relay
PREDATAIR60
R
e
m
o
t
e
s
wit
c
h
Door switch
Figure 9 – Door switch
2.2 Hydraulic Requirements
If the compressor is being installed on a truck that does
not have a hydraulic system, you will find information
on selecting and installing hydraulic components in
section 6.0 Hydraulic System Data.
Compressor capacity depends on hydraulic flow. For single speed
operation a minimum of 14 GPM and a maximum of 20 GPM
hydraulic oil flow is required. For two speed operation, a minimum of
12 GPM and a maximum of 22 GPM hydraulic oil flow is required.
