Compressor air filter
(must have proper ventilation)
Oil cooler (inside cover,
must have proper ventilation
)
Air discharge port
with check valve
Hydraulic fluid inlet
Hydraulic fluid return
Blowdown cap with
internal coalescing filter
Minimum clearance
for servicing - 6 inches
Compressor oil fill
(shipped full from
the factory)
Oil level sight glass
(make sure this can be easily
accessed for daily inspection)
Compressor oil drain
Oil filter
Cooling fan
Regulator on
inlet valve
(inside cover)
Minimum clearance
for servicing - 6 inches

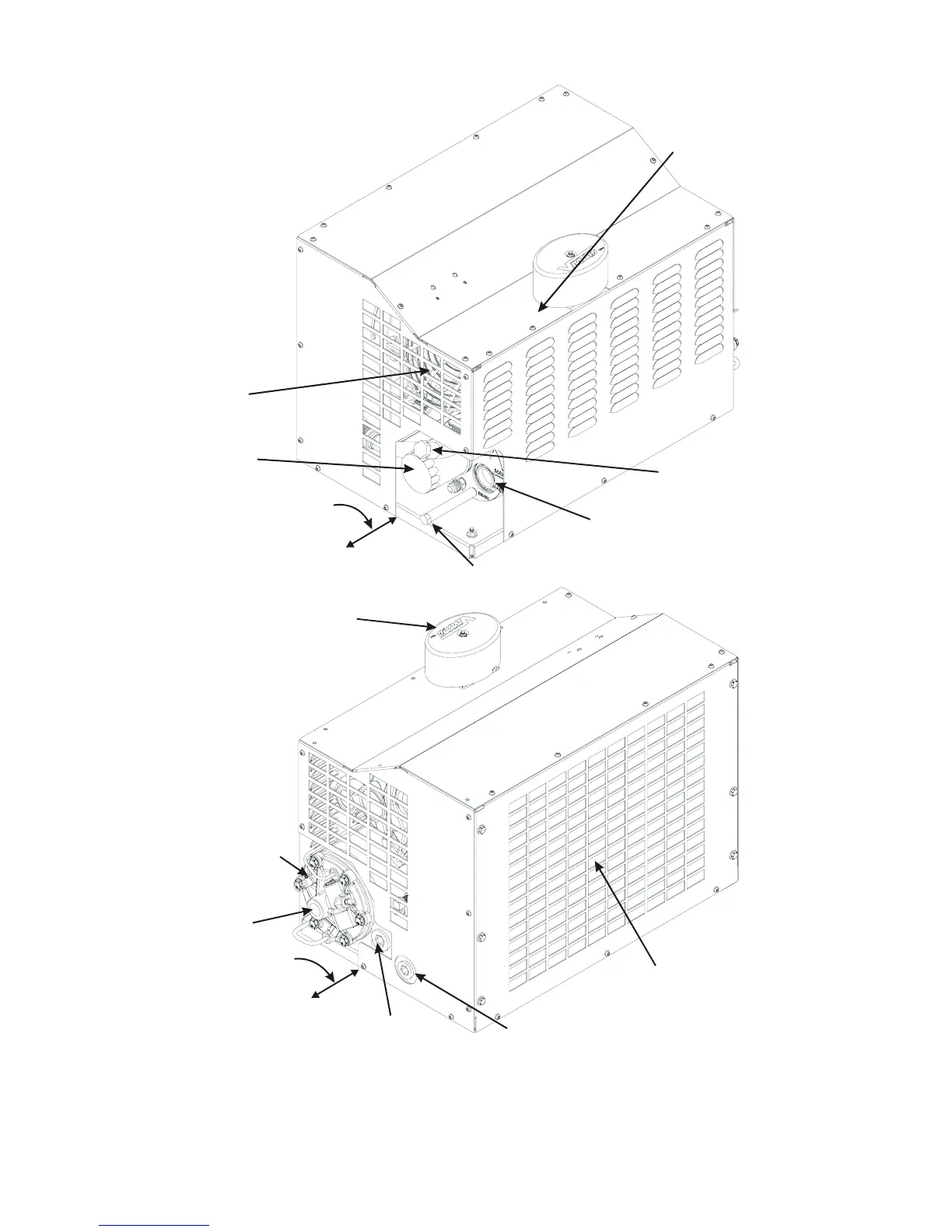

Figure 1 – System components
