8

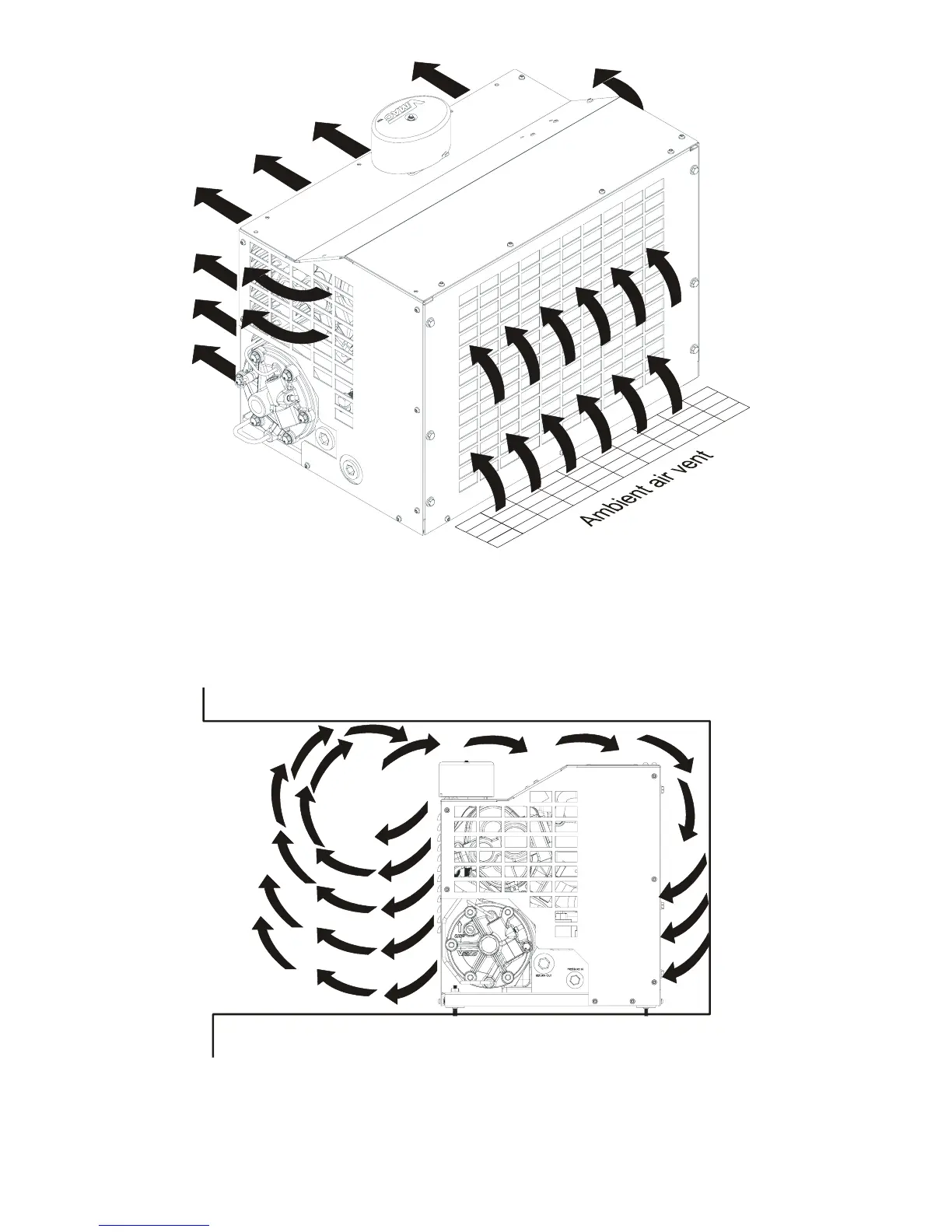

Figure 4 – Ideal ventilation with ambient air vent of a suitable
size for the application
Avoid installing deep into enclosures that will not permit adequate air
circulation (Figure 5).
Enclosure
Enclosure
Figure 5 – Avoid deep installation
