WBV.PU.002.EN VX186QD V2.0
Risk of injury due to rotating, exposed speed measurement (cam wheel) on the hydraulic motor!
Accidental contact with the speed measurement when the machine is running can result in injuries caused
by being trapped on or crushed by the rotating cam wheel.
The machine may only be started up if the cam wheel is protected from contact by a fixed cover. Standard
DIN EN ISO 13857 defines safety distances that should be observed when designing the contact protection.

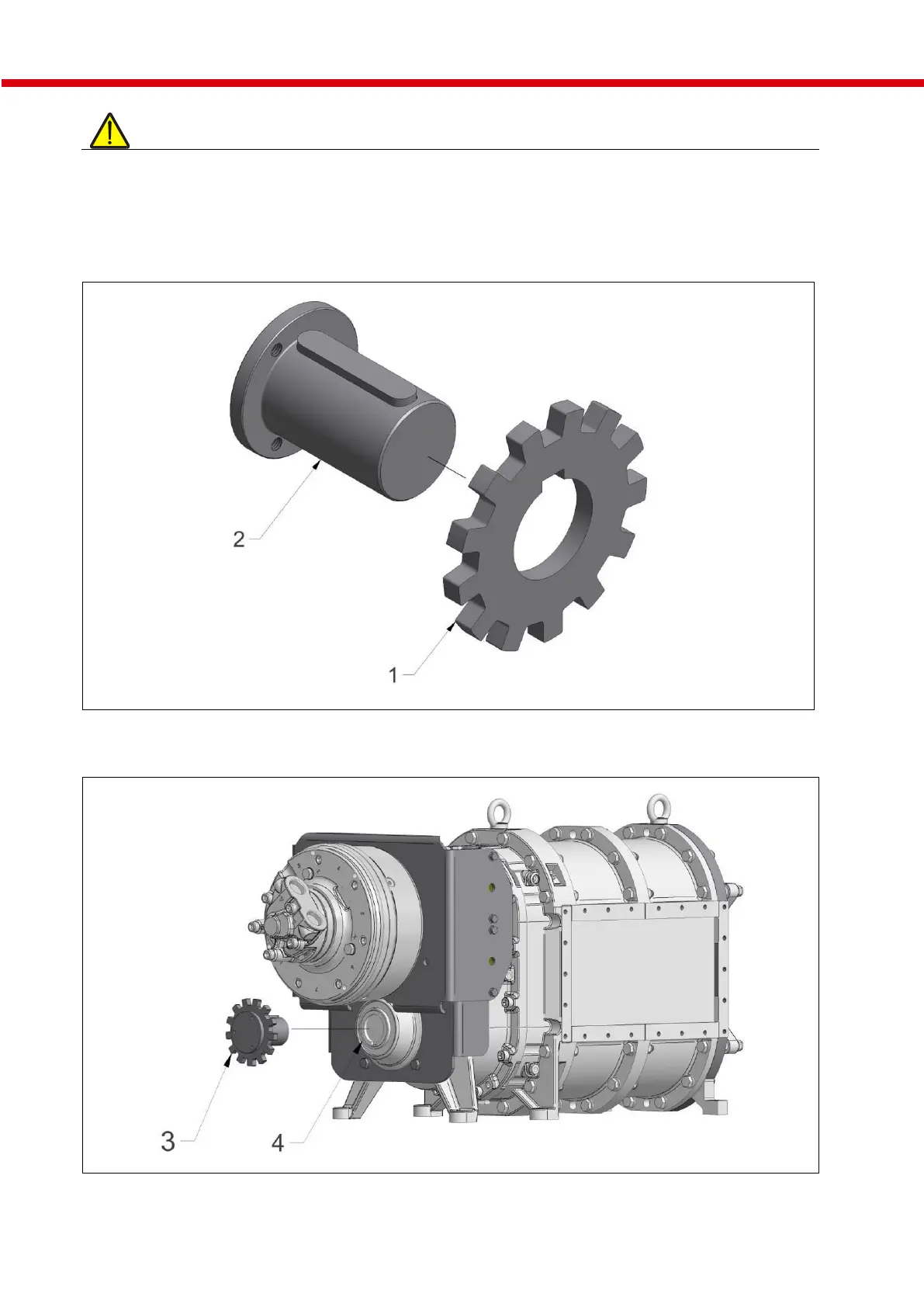

Fig. 1: Place the cam wheel on the shaft end
Fig. 2: Press the speed measurement into the hollow shaft
