Maintenance
43
Upright installation
Horizontal installation
Vertical installation
Suspended installation

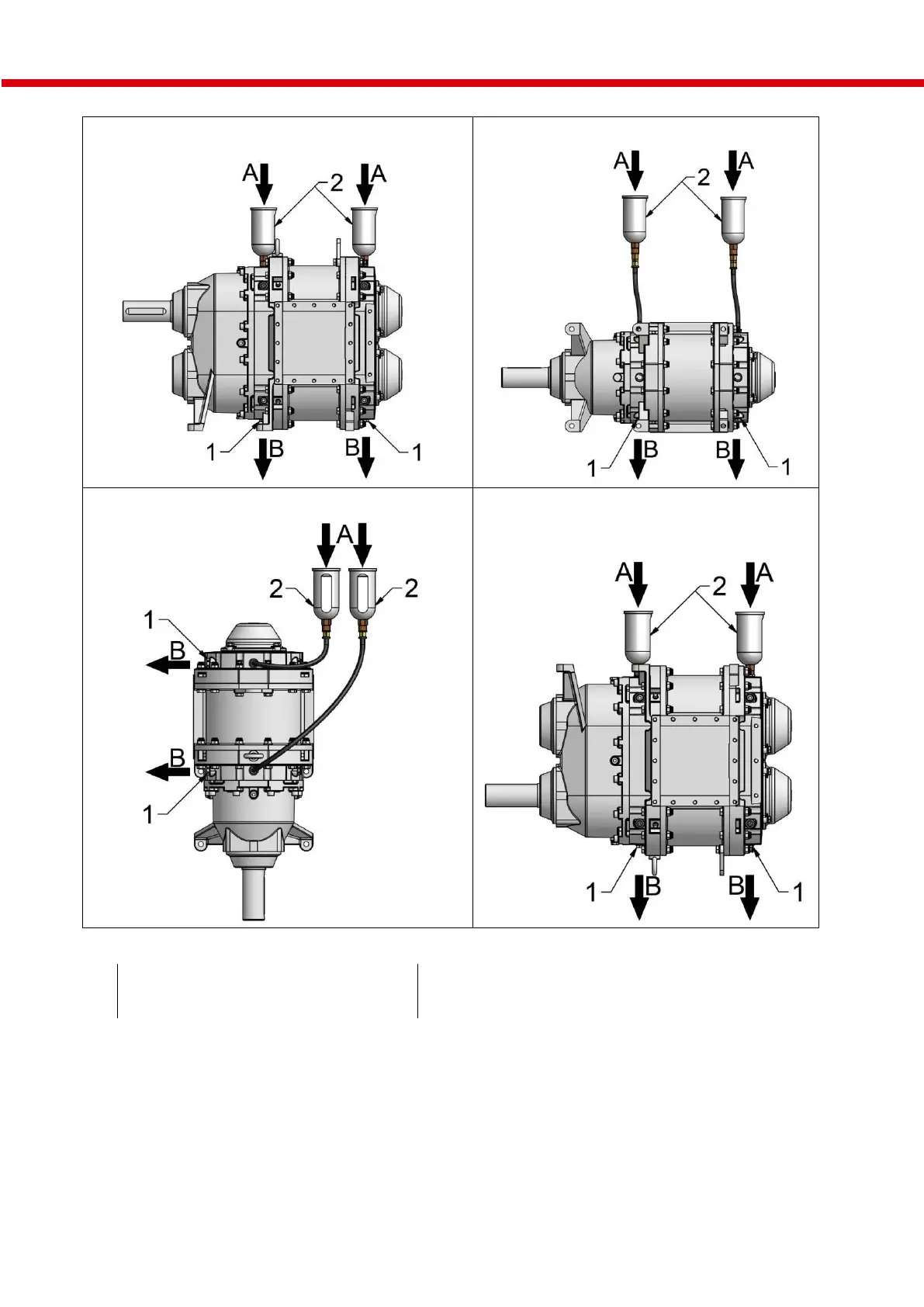

Fig. 15: Filling/draining the buffer chamber
1
Screw plug
A
Filling
2
Buffer fluid tank
B
Draining
