Vogt VT40 Service Manual

2-8 Vogt
®
VT Service Manual
Installation Instructions
Teflon Seal
12A2600T01 (for 1 1/4”-12 thread fitting)
12A2600T03 (for 1 3/4”-12 thread fitting)

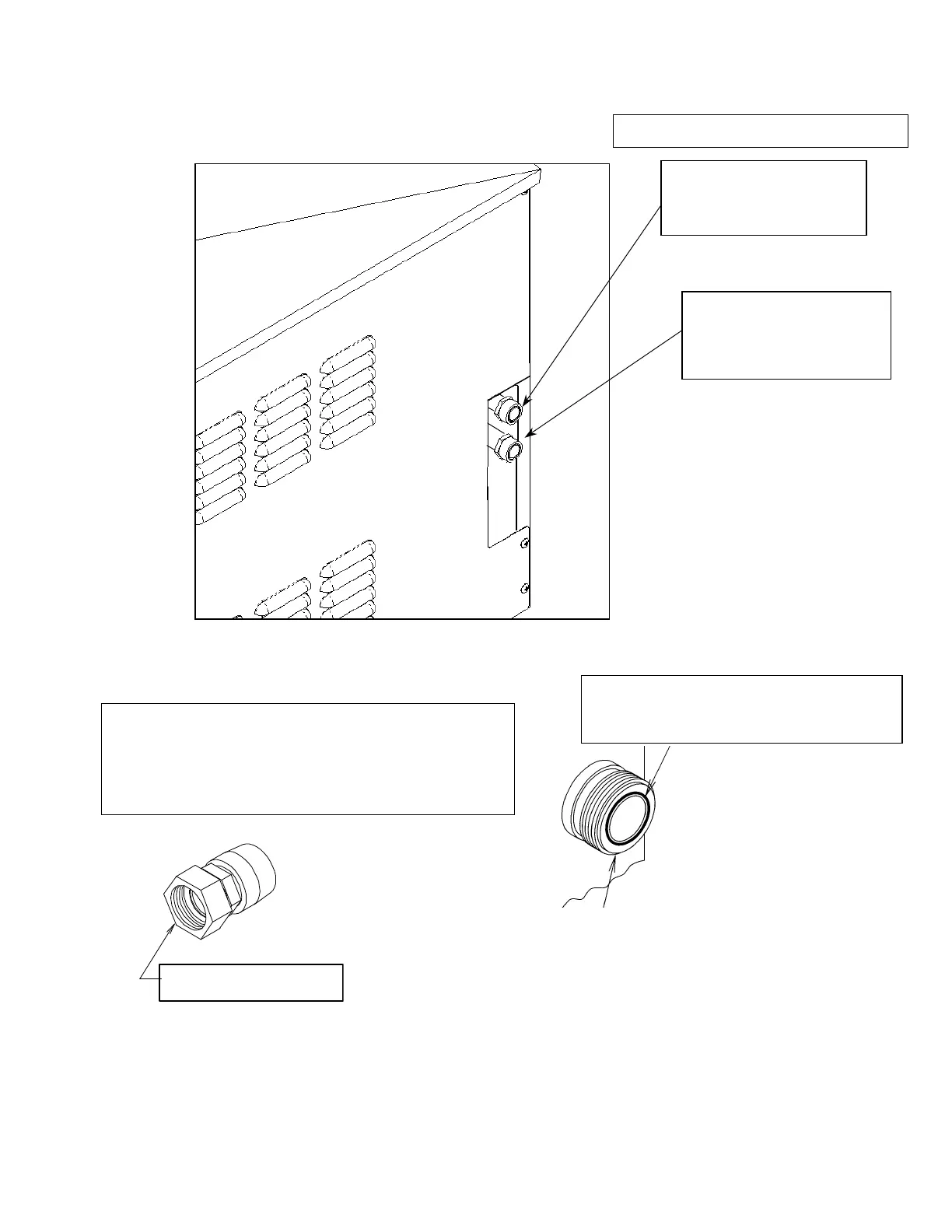

FIGURE 2-10
VT80 & VT100 Condenser Refrigerant Line Connections
Rota-lock Adapter
Note: Rota
-lock adapters
supplied with machine
Note: Rota
-lock male
adapter on ice machine
Must solder with 45% silver solder
Liquid return from
Air Cooled Condenser
(7/8” line)
Discharge gas to
Air Cooled Condenser
VT80 - 1 1/8”
VT100 – 1 3/8”
Female Rota-lock Adapters:
12A2396A0701 – for 1 ¼”-
12 F x 7/8” Sweat (Solder)
(Return Line from condenser)
12A2396A0601 – for 1 ¾”-12 F x 1 3/8” Sweat (Solder)
(Discharge to condenser)
