Vogt VT40 Service Manual

5-4 Vogt
®
VT Service Manual
Electrical Controls
PLC Inputs PLC Outputs
#
Description #
Description
0 Current Sensing Relay (CSR) for cutter motor 0 Machine Fault Indicator Light
1 “On” Switch & Bin control (in series) 1 Liquid Feed Solenoid (R404A machine only)
2 Harvest Hold (HH) Pressure Switch 2 Compressor
3 Start / Manual Harvest Switch 3 N/A
4 “Clean” Switch 4 Water Pump
5 High Pressure safety (“off” when tripped) 5 Cutter / "D" valve / Defrost loop valve or
6 Low Pressure safety (“off” when tripped) Suction Stop valve (VT80 & VT100)
7 Oil Safety / Compressor OL (VT80 & VT100)

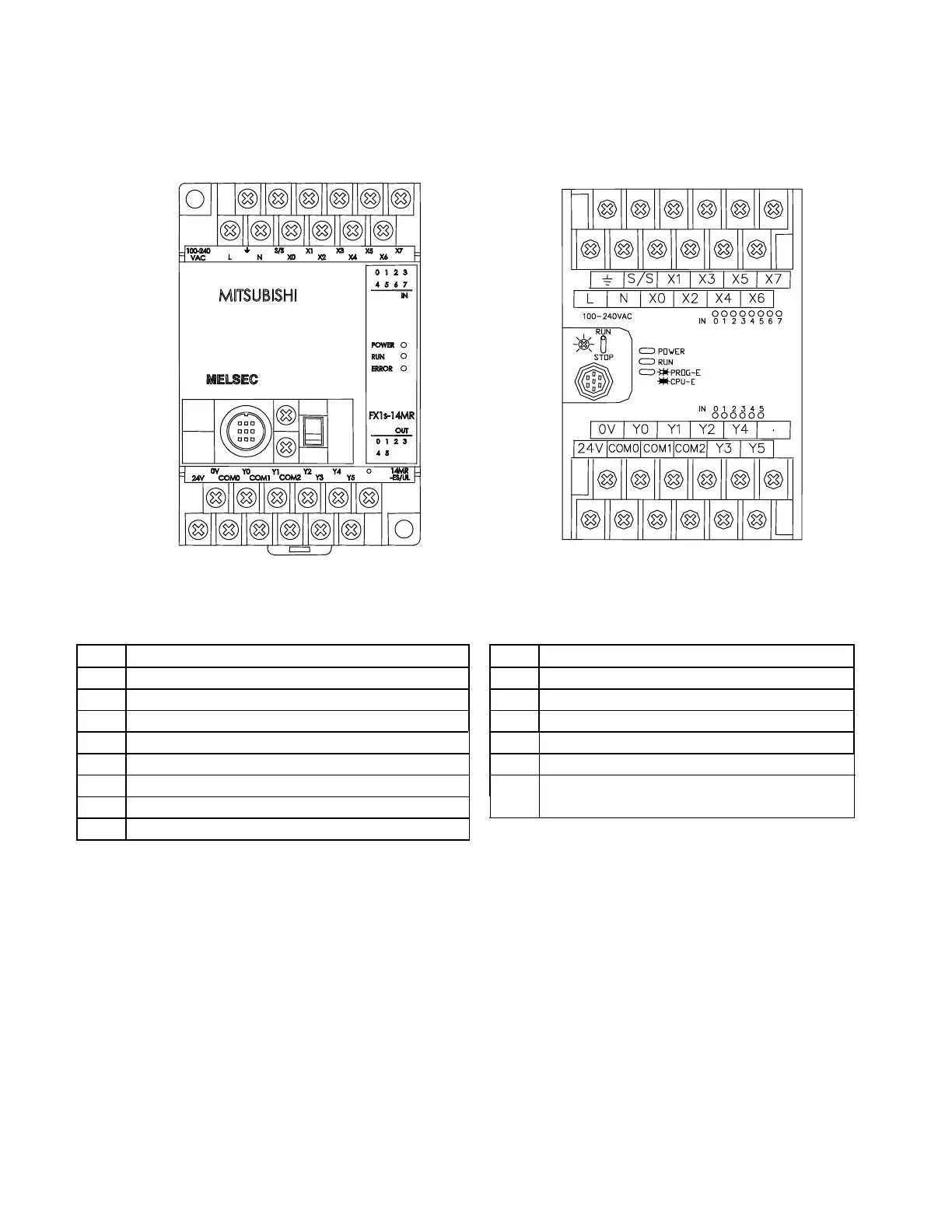

FIGURE 5-4
PLC Inputs & Outputs
PLC: FX
1
s
PLC: FXos
