Kryo Series Power Amplifiers
acoustics
1

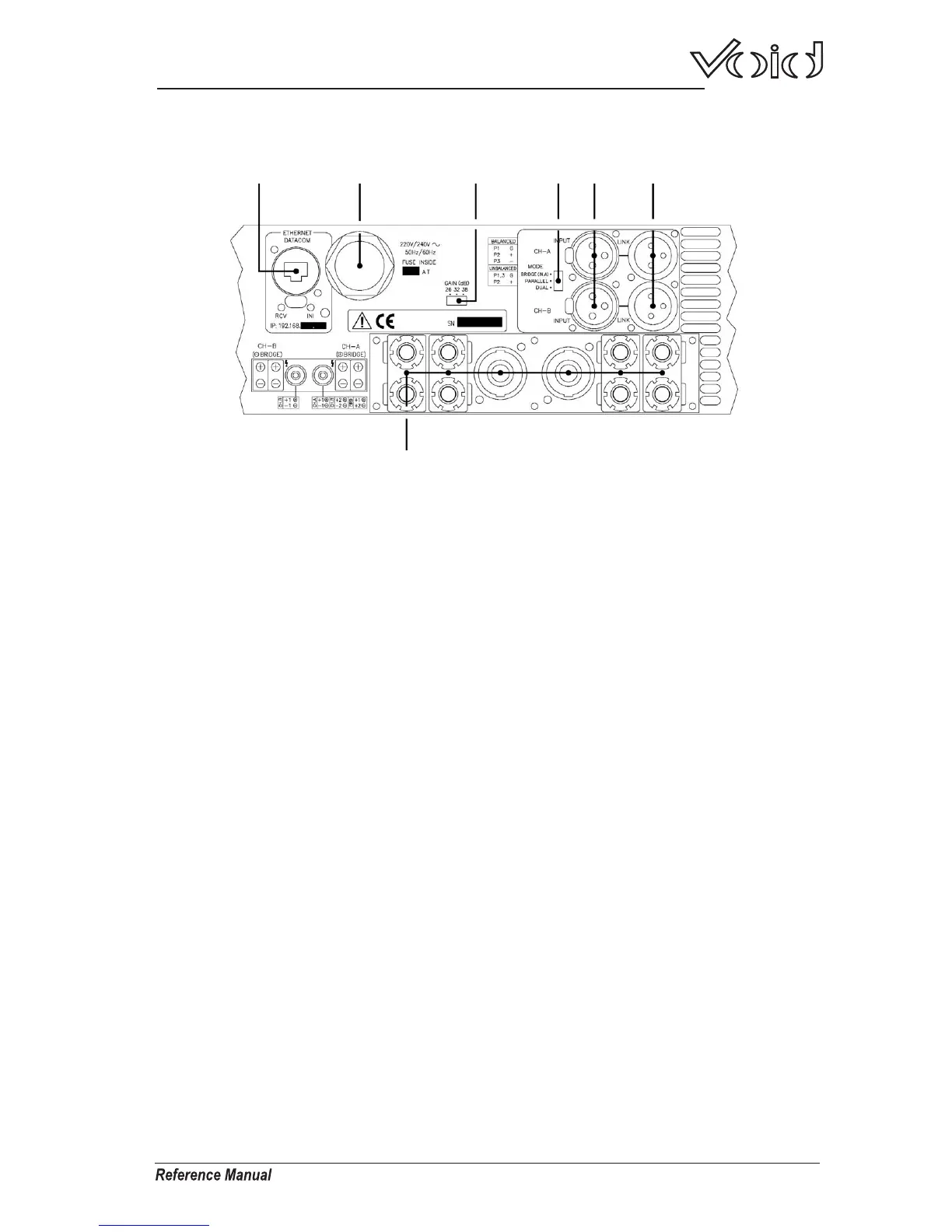

Rear Panel
1.Input XLR's
The input impedance of the balanced XLR's is 20KΩ. Pin 2 is signal +
2.Link Out XLR's
Linked outputs from the inputs.
3.Mode Switch
Selects Dual, Parallel or Bridge Mode. See page 8 for more details.
4.Gain Selection Switch
The three position switches select either 26, 32 or 38dB of gain.
The default setting is 32dB.
5.Power Cable
AC power in 230 VAC 50/60 Hz.
6.Ethernet Connector
Optional Ethernet module to allow remote control via a PC.
7.Output Connectors
In dual or parallel modes connect to pins +1 and -1 on out A or out B.
Out A/B is also wired so that channel A outputs on pins +1, -1 and
channel B outputs on pins +2, -2. In bridge mode use out A/B and
connect to pins +1, +2. The binding posts accept both 4 mm plugs
or bare wire.
