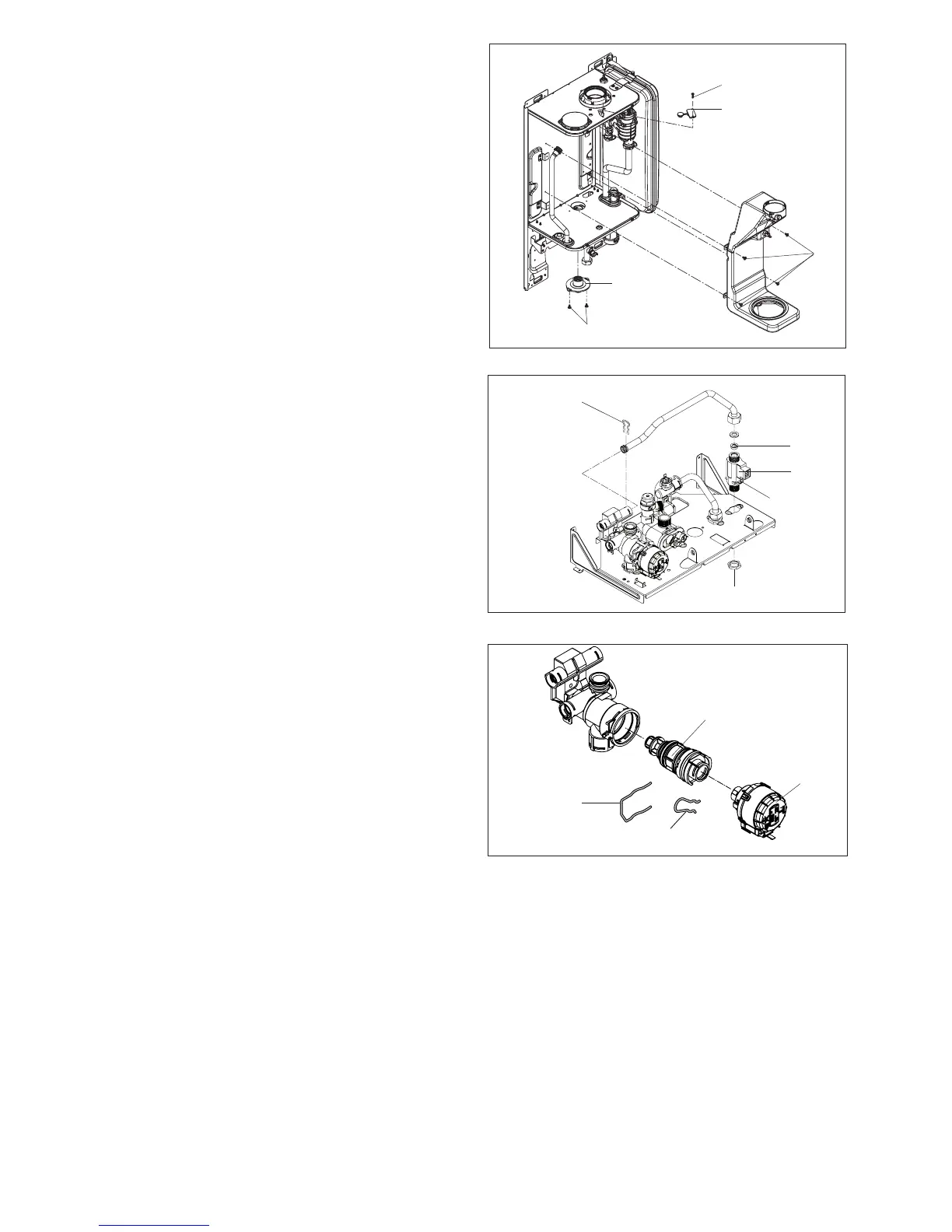

Carry out component removal procedure as described in 6.4.
Remove the air chamber front cover. Remove the heat exchang-
er as per 6.16. Locate and remove the screw (Y1) that secures
Z1
thermistor wiring connections. Locate and remove the 4 screws
(A2). Locate and remove the 2 screws (A3). Gently ease the
condensate collector (A4) out off its location. Gently ease the
Carry out the component removal procedure as described in
6.4.
(B2
(C2) from its seating. Replace in the reverse order. Ensure
all seals are in good condition, taking care to ensure they are
replaced correctly.
Carry out component removal procedure as described in 6.4.
Remove the locking pin (D2). Disconnect and remove the cold
-
and unscrew the inlet connection. Unscrew the nut (E2). Lift the
the locking pin (F2
inserted onto its seating. Ensure all seals are in good condition,
taking care to ensure they are replaced correctly.
Carry out component removal procedure as described in 6.4.
Remove the locking pin (G3) that secures the actuator (H2) to
the heating manifold. Disconnect the electrical plug from the
actuator. Replace in the reverse order.
Carry out component removal procedure as described in 6.4.
Locate and remove the thermistor locking pin (I2). Gently ease
the thermistor assembly (J2) from the hydraulic manifold. Re-
place in the reverse order.
Carry out component removal procedure as described in 6.4.
Remove the valve actuator as described in 6.20.3. Locate and
remove the locking pin (G2) that secures the valve housing
cover to the hydraulic manifold. Gently prise the valve as-
sembly from the manifold (K2). Replace in the reverse order
ensuring that the seating assembly is inserted properly. Ensure
all seals are in good condition, taking care to ensure they are
replaced correctly.
