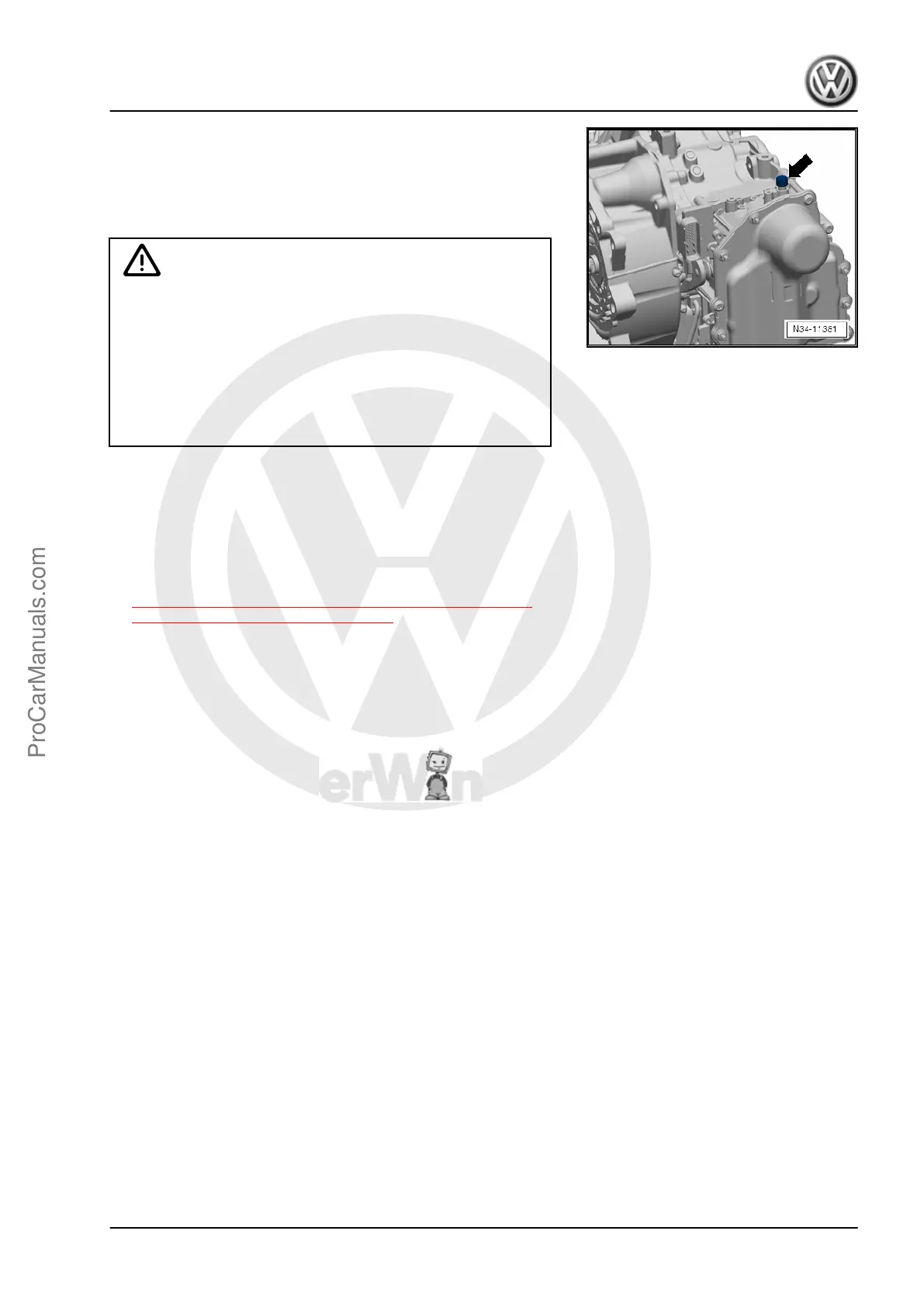

Pay attention to the vent when handling the Mechatronic.
– When doing assembly work on the Mechatronic, please re‐
move the cap -arrow- from the vent and seal the vent with a
suitable plug.
The Protective Cap - 0AM 325 120- is well suited for this.
Caution
On some transmissions, the breather cap on the Mechatronic
is destroyed during removal and must be replaced.
Checking the hydraulic fluid level for the Mechatronic is not
possible. The Mechatronic vent must be sealed oil-tight before
performing any assembly work.
Fluid that has leaked out of the Mechatronic hydraulic area may
not be refilled or checked. Replace the Mechatronic if fluid is
leaking.
3.3 DSG Transmission Mechatronic -
J743- , Removing with Transmission In‐
stalled
♦ Bring the DSG Transmission Mechatronic - J743- into the »re‐
moval position« by hand. Refer to
⇒ “3.4 DSG Transmission Mechatronic J743 , Moving into
Removal Position by Hand”, page 115 .
Special tools and workshop equipment required
♦ Assembly Lever - Mechatronic - T10407-
♦ Used Oil Collection and Extraction Unit - SMN372500-
♦ Engine Bung Set - VAS6122- , or Cap - 0AM 325 120 A-
♦ Vehicle Diagnostic Tester
Brief Description
The must be enough available space in front of the transmission
in order to remove the Mechatronic. Depending on the vehicle, it
is necessary to remove components that do not have anything to
do directly with the transmission. The air filter housing for exam‐
ple, and if equipped, the charge air hoses or coolant hoses.
If there are any brackets on the Mechatronic cover, these must
also be removed.
The Mechatronic is brought into the removal position using the
Vehicle Diagnostic Tester . All gear positions are »driven into
neutral«.
In this position, insert the Assembly Lever - Mechatronic -
T10407- between the engaging lever and transmission housing.
Now it is possible to relieve the Mechatronic plunger and remove
it by hand from the engaging lever sockets.
The Mechatronic can be removed and installed. Make sure the
clutch plunger is in the correct position in the engaging lever
socket during installation.
The following description must therefore be followed step by step.
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤
7-Speed Dual Clutch Transmission 0AM - Edition 09.2015
3. DSG Transmission Mechatronic J743 105
