– If removed, install the charge air or coolant hoses.
– Install the battery and the battery tray. Refer to ⇒ Electrical
Equipment; Rep. Gr. 27 ; Battery; Battery, Removing and In‐
stalling .
– Install the air filter housing:
♦ Gasoline engine. Refer to ⇒ Rep. Gr. 24 ; Air Filter; Overview
- Air Filter Housing .
♦ TDI engine. Refer to ⇒ Rep. Gr. 23 ; Diesel Direct Injection
System; Overview - Air Filter .
– Fill the coolant if necessary. Refer to ⇒ Rep. Gr. 19 ; Cooling
System Components .
– Install the noise insulation. Refer to ⇒ Body Exterior; Rep. Gr.
50 ; Noise Insulation .
– Connect the Vehicle Diagnostic Tester and Perform basic
measurement . Refer to
⇒ “7.3.3 Basic Measurement, Performing”, page 13 .
– If necessary, place the plug on the »removed« Mechatronic.
Now the Mechatronic can be sealed for shipping.

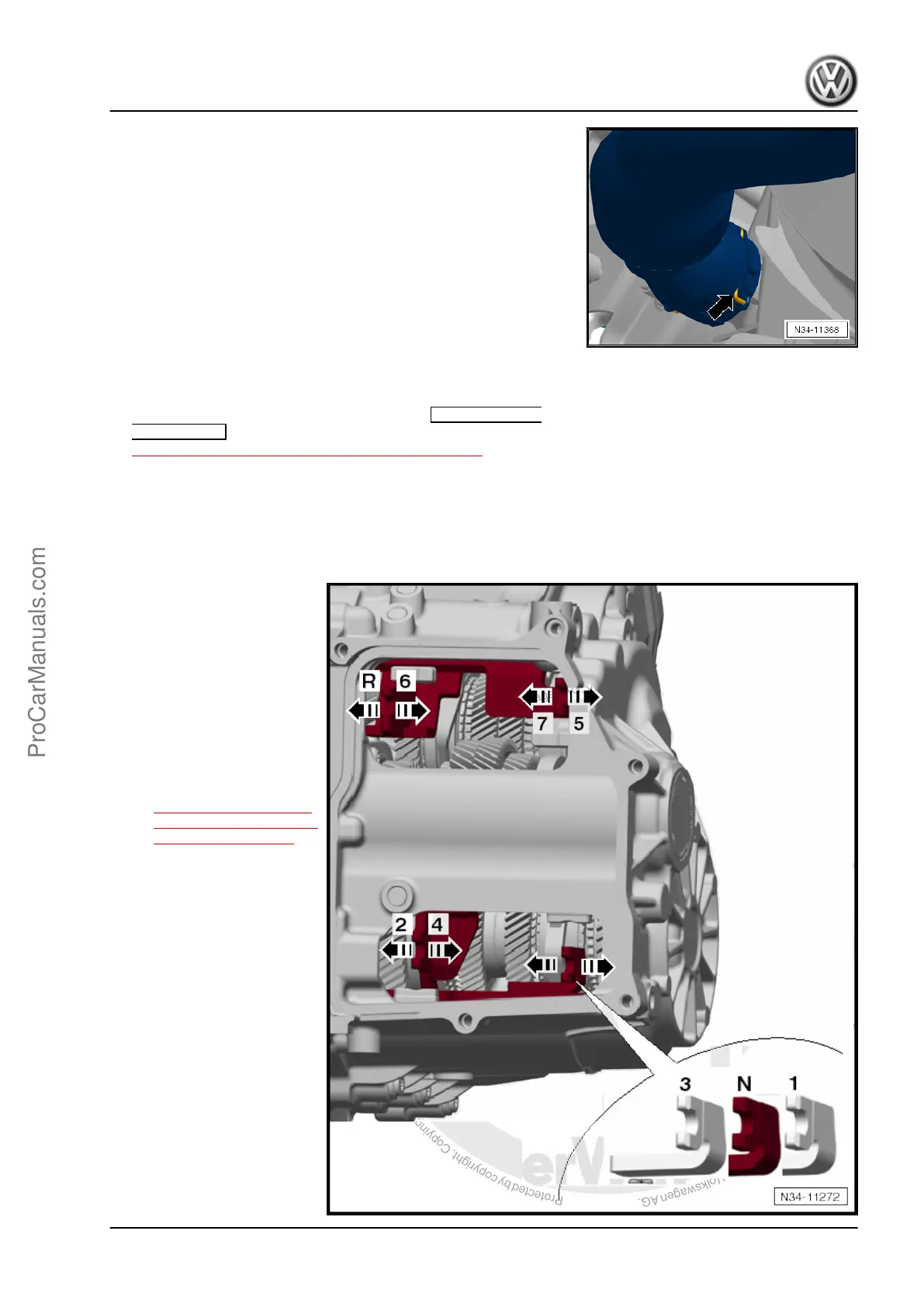

3.6 Overview - Shift Forks with Mechatronic Removed
N - Idle/Neutral Transmission
Position »in the Center«
R - Reverse Gear
❑ If reverse gear is engag‐
ed then the extended
Mechatronic plunger
gets caught behind the
transmission housing.
– For this reason, move
the Mechatronic by
hand into the removal
position. Refer to
⇒ “3.5 DSG Transmis‐
sion Mechatronic J743 ,
Installing”, page 119 .
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤
7-Speed Dual Clutch Transmission 0AM - Edition 09.2015
3. DSG Transmission Mechatronic J743 125
