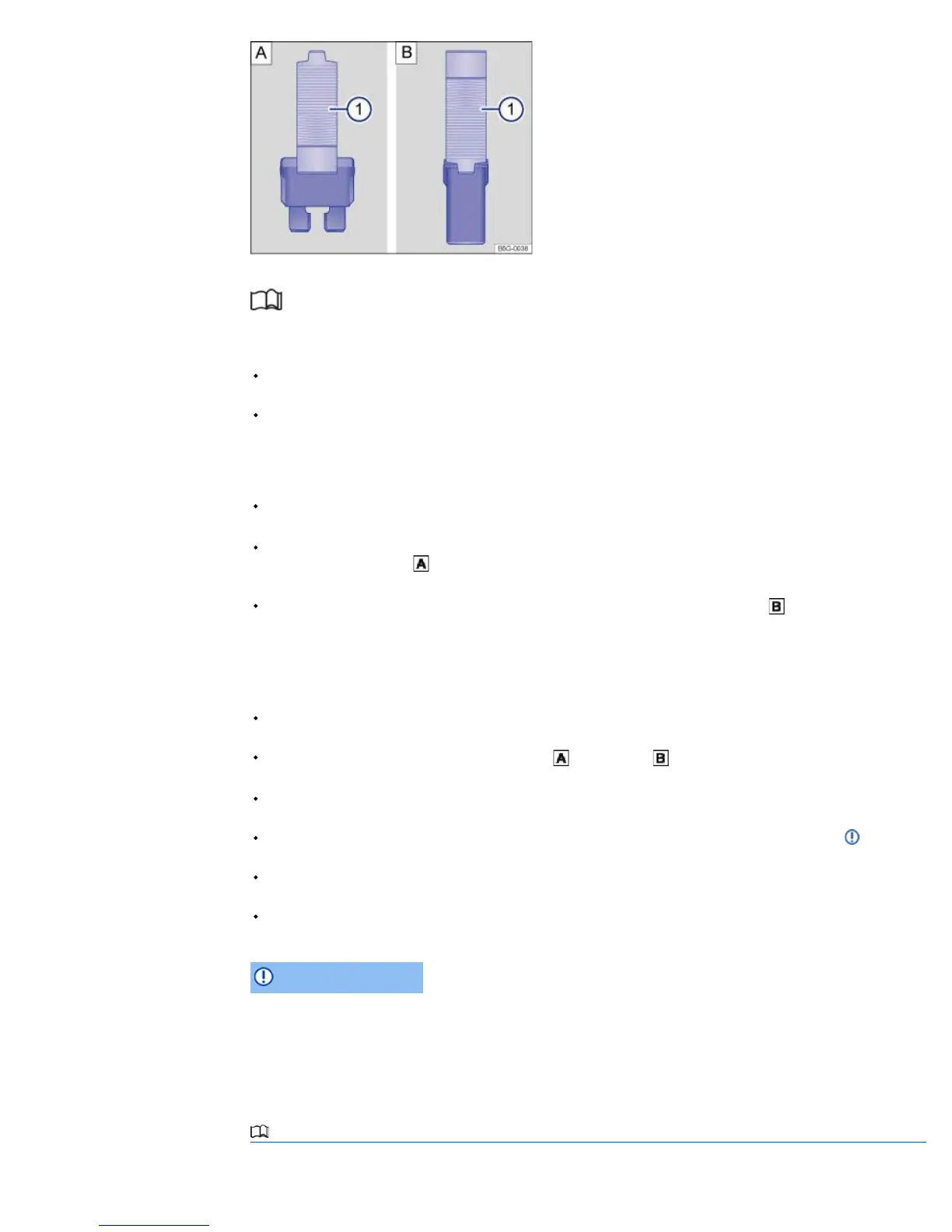

Fig. 244 Remove or insert fuse with plastic pliers: flat blade fuse, JCASE® fuse.
First read and observe the introductory information and safety warnings →
Introduction
Preparation
Switch off the ignition, the lights and all electrical consumers.
Open the appropriate fuse box → Changing fuses .
Detecting a blown fuse
Shine a torch onto the fuse. This will help you to spot the blown fuse more easily.
If a flat blade fuse (ATO
®
, MINI
®
) is blown, this can be recognised from the top and side through the transparent housing surrounding the
melted metal strips
→ Fig. 243 .
If a JCASE
®
fuse is blown, this can be recognised from the top through the transparent housing → Fig. 243 .
Changing a fuse
In some vehicles, there is a pair of plastic pliers for removing fuses on the inside of the cover of the fuse box in the engine compartment.
Open the fuse box cover in the engine compartment → Changing fuses and remove the plastic pliers.
Push the plastic pliers suitable to the fuse design → Fig. 244 ① or → Fig. 244 ① onto the fuse from the side.
Lift the fuse up and out.
If the fuse has blown, replace it with a new fuse of the same amp rating (same colour and same markings) and same size → .
Once the new fuse is inserted, clip the plastic pliers into the holder on the inside of the fuse box cover.
Fit the fuse box cover → Changing fuses .
Introduction
This chapter contains information on the following subjects:
You can damage another position in the electrical system by using a fuse with a higher amp rating.
NOTICE
Jump starting
