→ Jump lead connection point (positive terminal)
→ Jump start connection point (earth connection)
→ How to start the engine using jump leads
If the engine cannot be started because the vehicle battery is discharged, the battery can be connected to the battery of another vehicle to start
the engine.
Jump leads must comply with DIN 72553 (see manufacturer's documentation). The wire cross section must be at least 25 mm
2
for petrol engines
and at least 35 mm
2
for diesel engines.
In vehicles with a vehicle battery in the luggage compartment, the jump leads must be connected only to the designated connection points in the
engine compartment.
Jump lead connection point (positive terminal)

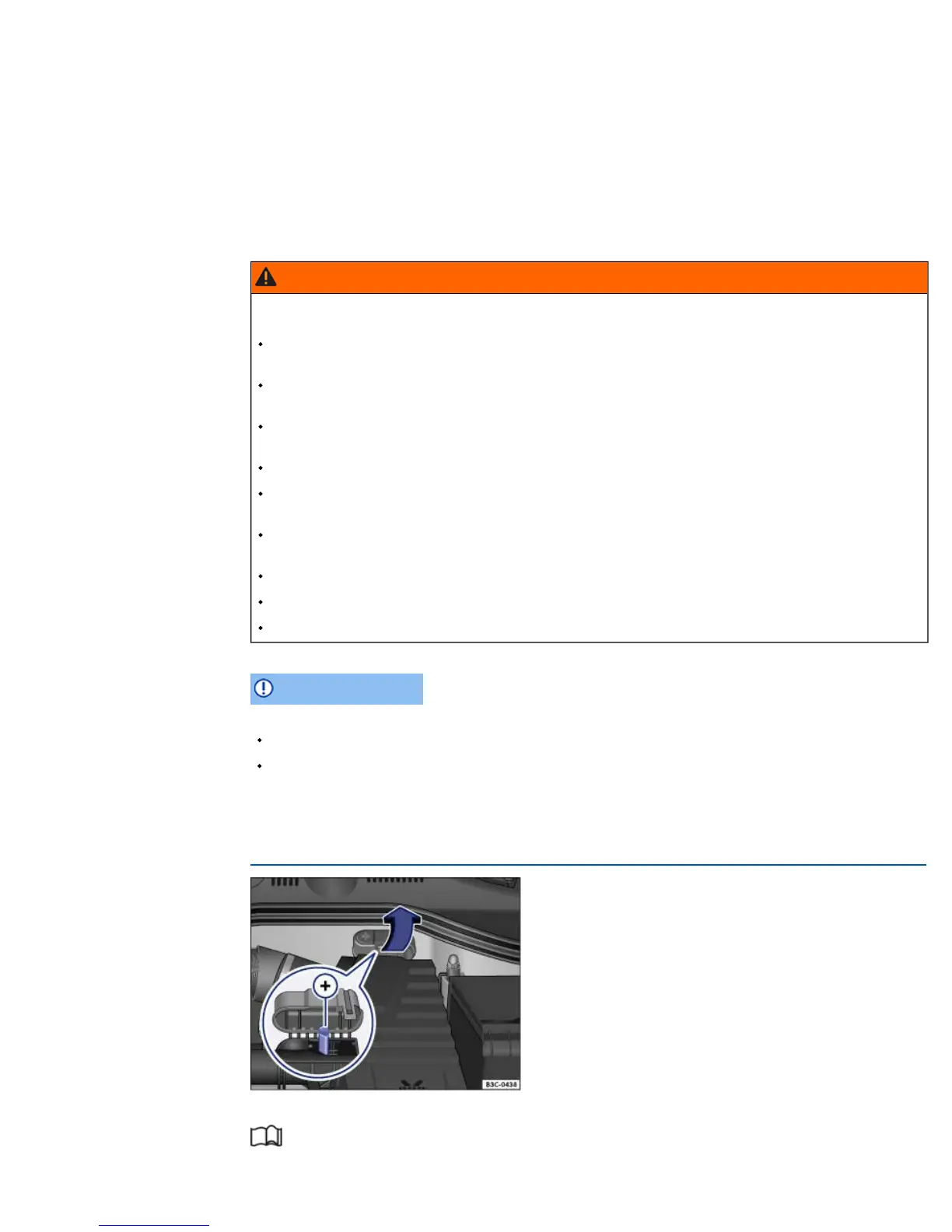

Fig. 245 In the engine compartment underneath a cover: jump lead connection point (positive terminal).
First read and observe the introductory information and safety warnings →
Introduction
In vehicles with a battery in the luggage compartment, there is a jump lead connection point (positive terminal)
→ Fig. 245 ⊕ under a cover in the
Using the jump leads incorrectly or completing the jump start procedure incorrectly can cause the battery to explode, which can lead to severe
injuries. Please note the following in order to reduce the risk of the battery exploding:
All work on the vehicle battery and the electrical system can cause serious chemical burns, fire or electric shocks. Always read the warnings
and safety information before carrying out any kind of work on the battery
→ Vehicle battery .
The vehicle battery providing assistance must have approximately the same voltage (12-volts) and approximately the same capacity (see
imprint on vehicle battery) as the flat vehicle battery.
Never charge a vehicle battery once it has been frozen. Discharged vehicle batteries can even freeze at temperatures of around
0°C (+32°F).
The battery should be replaced if it is or has ever been frozen.
A highly explosive mixture of gases is given off when the vehicle battery is jump started. Always keep fire, sparks, naked flames and lit
cigarettes away from the vehicle battery. Never use a mobile telephone when the jump leads are being connected or disconnected.
Only charge the battery in a well-ventilated space as the battery emits a highly explosive mixture of gases when the vehicle is being jump
started.
Position the jump leads so that they never come into contact with any moving parts in the engine compartment.
Never confuse the negative and positive terminals or connect the jump leads incorrectly.
Observe the jump lead manufacturer's instructions.
WARNING
Please note the following in order to avoid considerable damage to the vehicle electrical system:
A short circuit can be caused if the jump leads are wrongly connected.
The vehicles must not touch each other, as any contact could mean that electricity could flow as soon as the positive terminals are
connected.
NOTICE
