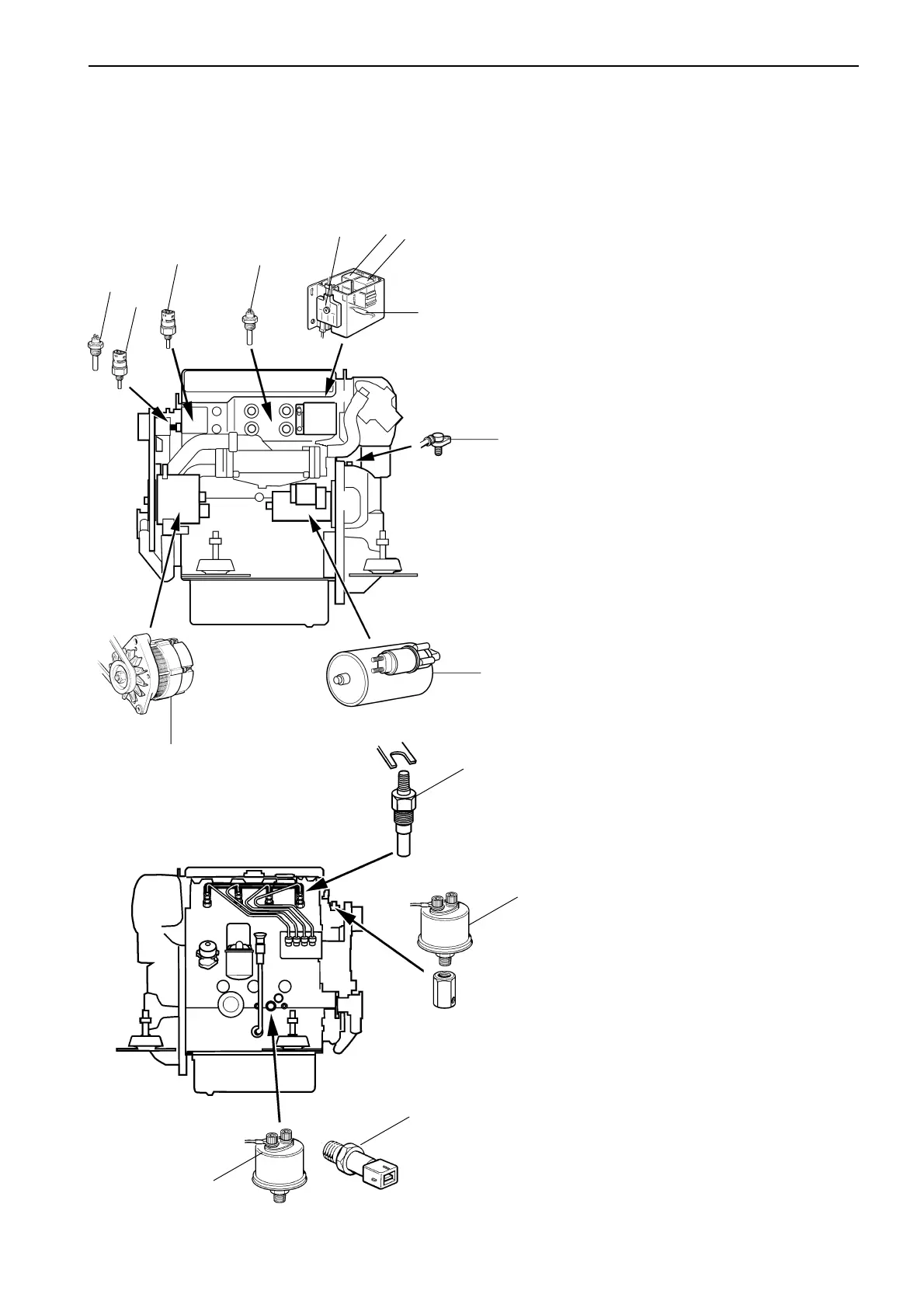

Electrical components diagram
1. Engine coolant temperature sensor D2-55
(optional extra)
2. Coolant temperature switch D2-55
3. Engine coolant temperature sensor D2-75
4. Coolant temperature switch D2-75
5. Fuses
6. Starter relay
7. Glow plug relay
8. Ballast resistor
9. Engine speed sensor
10. Starter motor
11. Generator
12. Glow plugs, 4 st
13. Oil pressure sensor D2-55 (optional extra)
14. Oil pressure switch D2-55
15. Combined oil pressure switch/sensor D2-75
Maintenance: Electrical components diagram
10
11 12
1
2
4
5
6
7
8
9
3
13
14
15
