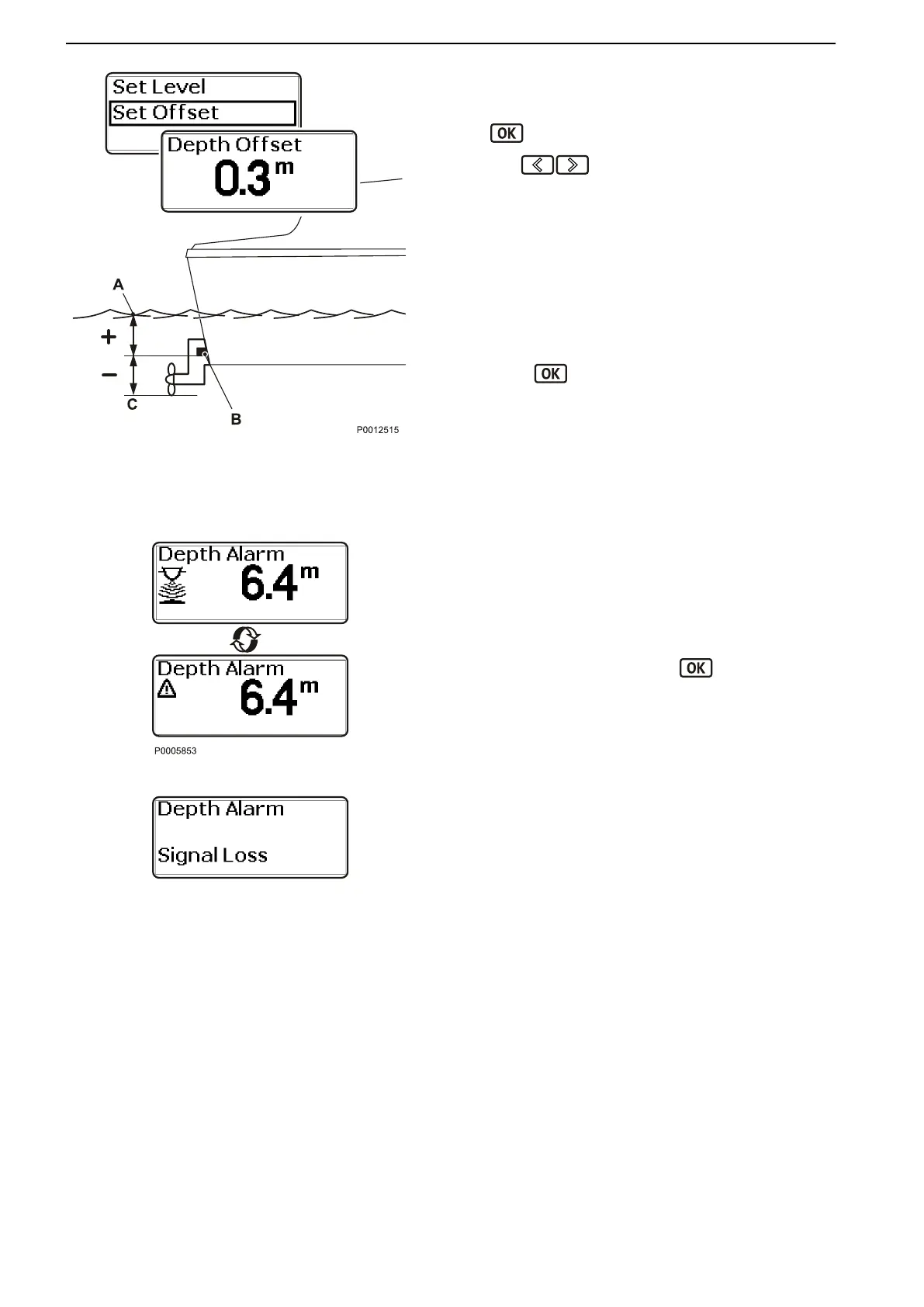

Set Offset
1 Go from
the settings menu to Set Offset and press
to reach the setting.
2
Use
to set the depth compensation value
so that it corresponds to the boat's lowest point or
the waterline. The echo-sounder can be placed
anywhere between these two points.
Set the echo-sounder/waterline or echo-sounder/
lowest point distance to the depth to be displayed.
The distance between the echo-sounder (B) and
the water line (A) has a positive (+) value.
The distance between the echo-sounder (B) and
the boat's
lowest point (C) has a negative (–) num-
ber.
Press
to confirm the setting.
Depth Alarm
When the depth is less than the alarm setting a mes-
sage will
be shown on the display, followed by an audi-
ble signal.
The message will be displayed every 30 seconds until
the depth exceeds the alarm level.
Confirm the alarm by pressing
.
Signal fault
If the signal from the depth alarm is lost, e.g. if the
sensor is not working, a message is displayed stating
that the signal has been lost.
Set Offset
A Waterline
B
Echo-sounder
C
Lowest point
Depth Alarm
Depth Alarm / Signal Loss
Calibration and Settings
116 47702599 12-2011
