Neutral position. The symbol shows that the drive/
reverse gear is disengaged.
7
The warning triangle lights up if the system discov-
ers a fault; refer to Fault Handling page 55 for
information.
The warning triangle lights up on the same side as
the driveline with the indicated fault.
8 This function is not available.
9 TRIM ASSIST
The Power Trim Assistant, PTA, adjusts the trim
angel automatically according to engine speed
(rpm), see Power Trim Assistant page 33 for infor-
mation.
10 TRIM
Trim the drive out//in.
For twin engine installations the adjustment of the
drives are synchronized. For further information
see Instruments and Controls page 31.

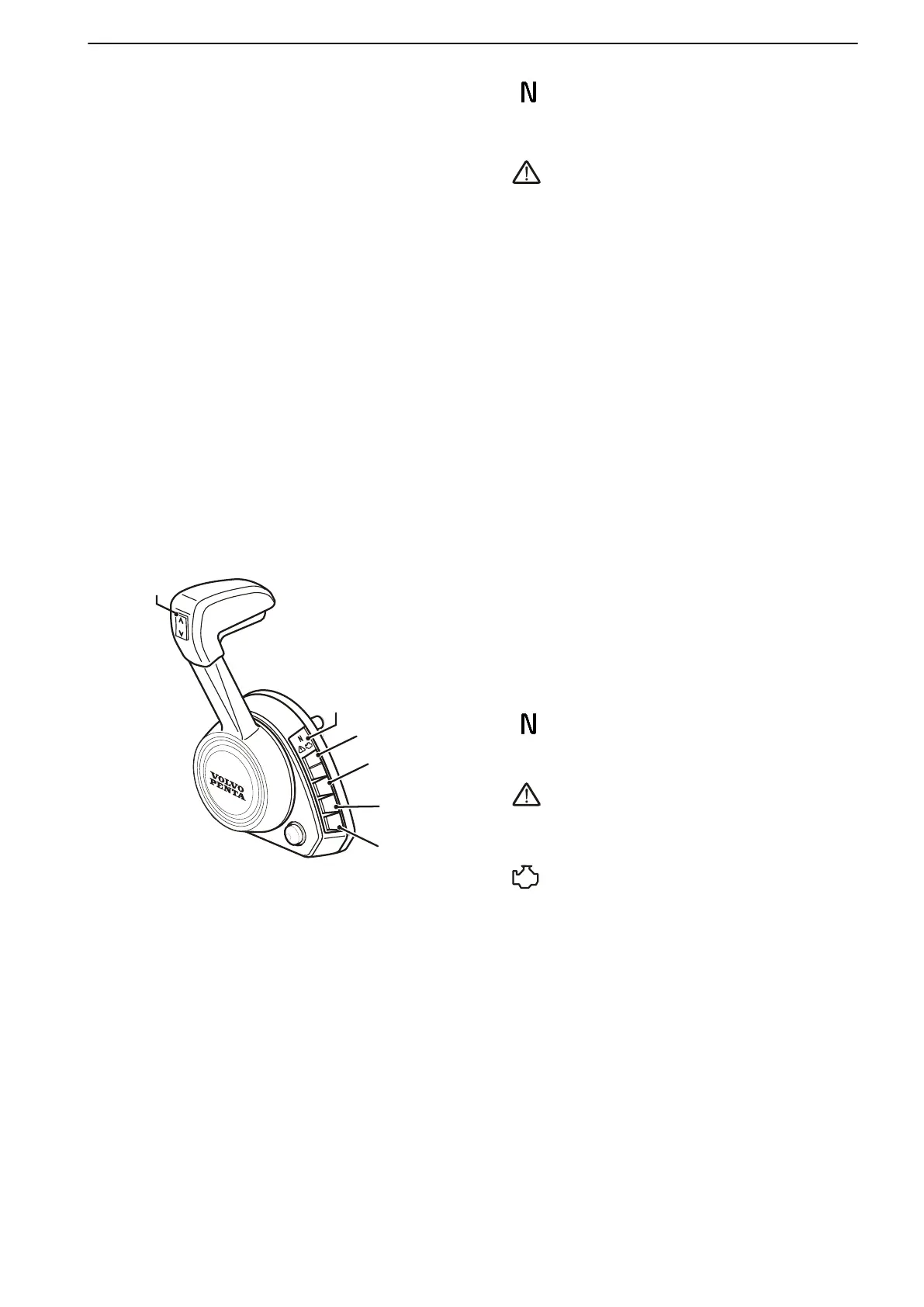

Side-mounted control
1 TRIM
Trim the drive out//in.
For twin engine installations the adjustment of the
drives are synchronized.
For further information on Power Trim see Instru-
ments and Controls page 31.
2
Neutral position. The symbol shows that the drive/
reverse gear is disengaged.
The warning triangle lights up if the system discov-
ers a fault; refer to Fault Handling page 55 for
information.
This function is not available.
3
+ / -
Fine tune the locked engine speed for tow mode
(
4) or cruise control (5) by increasing (+) or reducing
(-) engine rpm.
4 TOW MODE
Accelerates the boat to a preset rpm.
Switch on toe mode by pressing the button.
Fine tune the locked engine speed by increasing (+)
or reducing (-) engine rpm with button (3).
5 CRUISE CONTROL (optional)
Switch on cruise control by pressing the button.
Fine tune the locked engine speed by increasing (+)
or reducing (-) engine rpm with button (3).
TRIM
+
-
TOW
CRUISE
TRIM
ASSIST
1
2
3
4
5
6
P0013210
Instruments and Controls
47702599 12-2011 37
