Fuel System
Only use the grades of fuel recommended in the fuel
specification, see Technical Data, Fuel System.
Always observe the greatest cleanliness during re-
fuelling and work on the fuel system.
All work on the unit injectors of the engine must be
carried out by an authorized workshop.
WARNING!
Fire hazard.
When carrying out work on the fuel system
make sure the engine is cold. A fuel spill onto a hot
surface or an electrical component can cause a fire.
Store fuel soaked rags so that they can not cause fire.

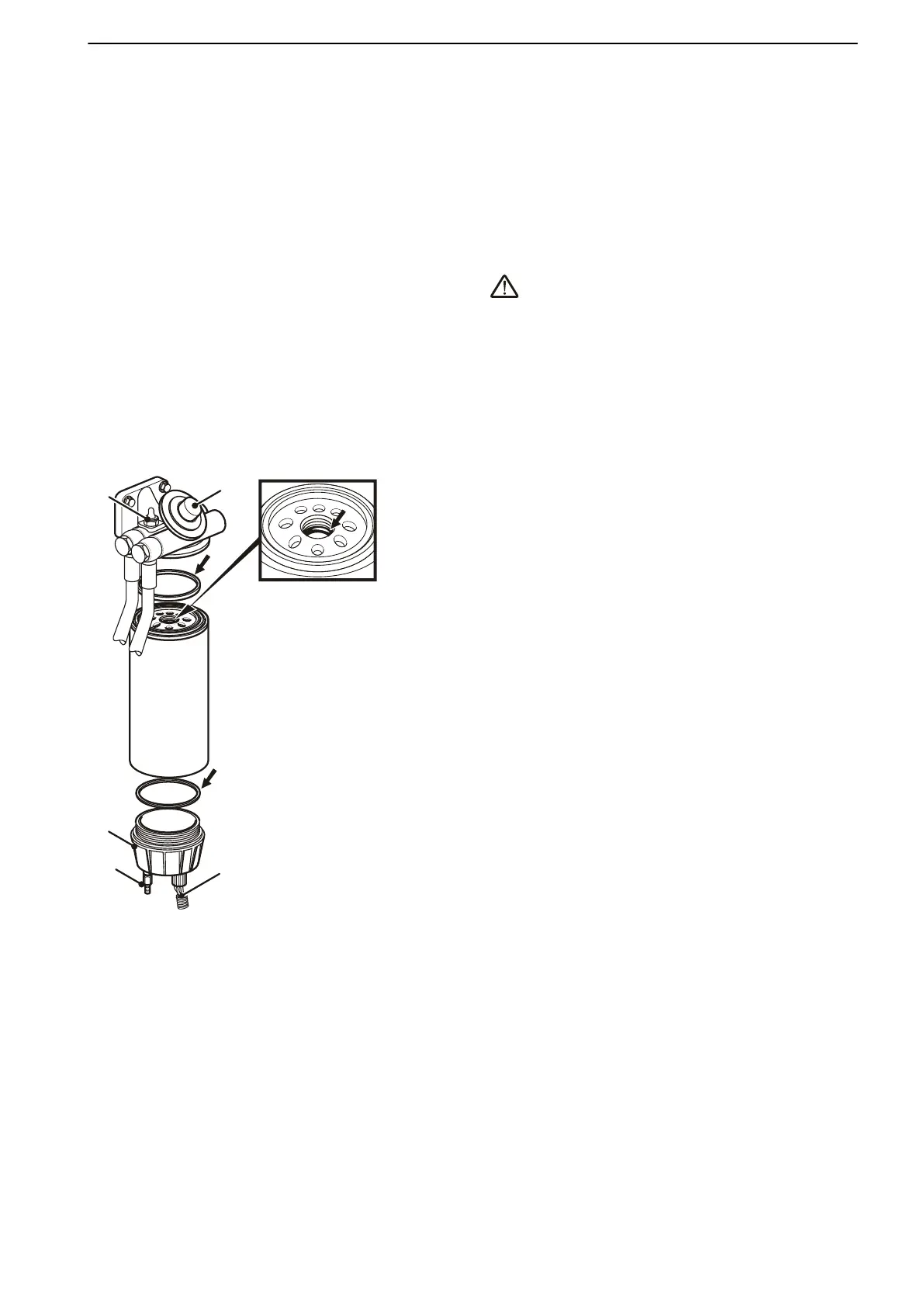

Engine Fuel Filter Replacement
1 Close the fuel tap(s).
2 Clean the filter holder and place a suitable vessel
under the fuel filter.
3 Release the pressure in the filter by first opening
the drain tap (1) on the bottom of the water sepa-
rator and then the bleeding nipple (2) so that the
filter is emptied of fuel.
4 Undo the union (3) from the water separator (4) and
unscrew the water separator from the filter.
5 Unscrew the filter. Use a filter wrench if necessary.
6 Clean the sealing surfaces on the filter holder.
Make sure that the filter is clean and that the sealing
rings are undamaged. Moisten the sealing rings
with engine oil, including the rubber seal located in
the thread in the center of the filter.
IMPORTANT!
Do not fill the new filter with fuel before installa-
tion. Dirt may get into the system and cause dam-
age and malfunctions.
7 Screw on the new filter by hand until the gasket just
bottoms on the sealing surface. Then tighten a fur-
ther 1/2 turn. Install the water separator and con-
nect the union. Close the drain tap.
8 Open the main fuel tap.
9 Open the bleeding nipple and pump fuel with the
hand pump (5) until the fuel is free from bubbles.
Close the bleeding nipple while fuel is flowing out.
10 Remove the hose and replace the protective cover
on the purging nipple.
11 Start the engine and check that there are no leaks.
Maintenance
47702095 04-2011 81
