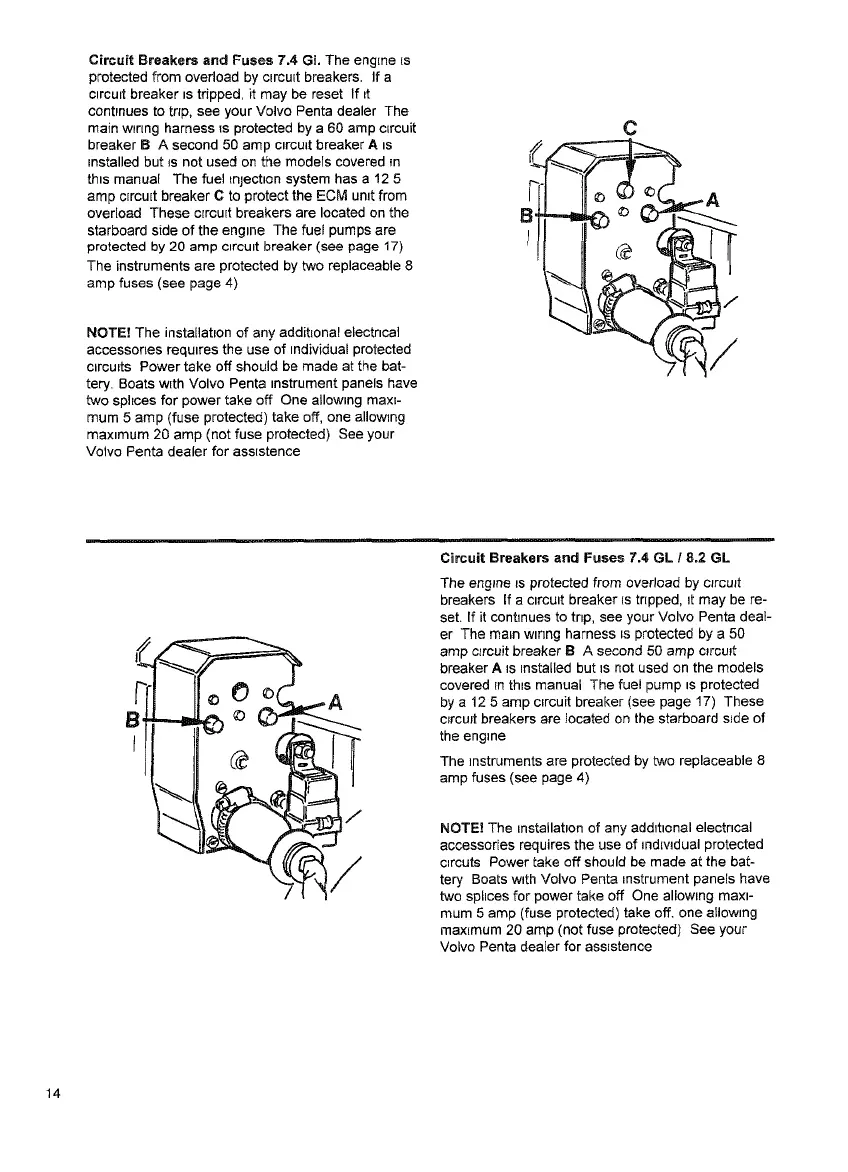

Circuit Breakers and Fuses 7.4 Gi. The engine is
protected from overload by circuit breakers. If a
circuit breaker is tripped, it may be reset If it
continues to tr~p, see your Volvo Penta dealer The
main wlnng harness ts protected by a 60 amp circuit
breaker B A second 50 amp circu=t breaker A is
installed but ~s not used on the models covered ~n
this manual The fuel tn]ectlon system has a 12 5
amp circuit breaker C to protect the ECM unit from
over[oad These circuit breakers are located on the
starboard side of the engine The fuel pumps are
protected by 20 amp circuit breaker (see page 17)
The instruments are protected by two replaceable 8
amp fuses (see page 4)
NOTE! The installation of any additional electrical
accessories requires the use of indMdual protected
circuits Power take off should be made at the bat-
tery. Boats with Volvo Penta instrument panels have
two splices for power take off One allowing maxi-
mum 5 amp (fuse protected) take off, one allowing
maximum 20 amp (not fuse protected) See your
Volvo Fenta dealer for assistence
C
, /
Circuit Breakers and Fuses 7.4 GL 1 8.2 GL
The engine is protected from overload by circuit
breakers If a ctrcult breaker is tripped, it may be re-
set. If it continues to trip, see your Volvo Penta deal-
er The ma=n wrong harness Js protected by a 50
amp c~rcuit breaker B A second 50 amp c~rcuJt
breaker A Is installed but is not used on the models
covered m this manual The fuel pump is protected
by a 12 5 amp circuit breaker (see page 17) These
c~rcuJt breakers are located on the starboard s~de of
the engine
The instruments are protected by two replaceable 8
amp fuses (see page 4)
NOTE! The installation of any addttional electrical
accessories requires the use of =ndEv~dual protected
c=rcuts Power take off should be made at the bat-
tery Boats with Volvo Penta instrument panels have
two sphces for power take off One allowing maxi-
mum 5 amp (fuse protected) take off. one atlowmg
maximum 20 amp (not fuse protected) See your
Volvo Penta dealer for ass[stence
