B

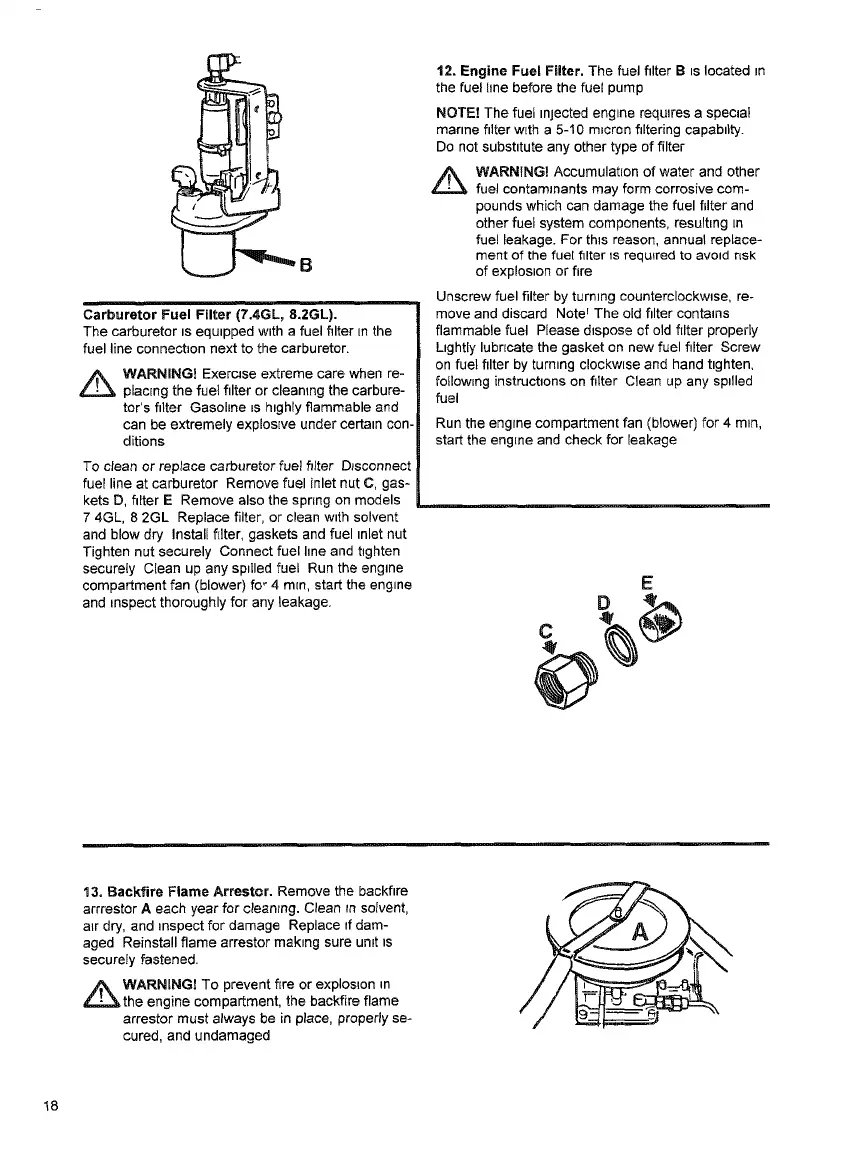

Carburetor Fuel Filter (7.4GL, 8.2GL).
The carburetor is equipped with a fuel filter m the
fuel line connect=on next to the carburetor.
A
WARNING! Exercise extreme care when re-
placing the fuel filter or cleaning the carbure-
tor’s filter Gasoline is highly flammable and
can be extremely explosive under certain con-
ditions
To clean or replace carburetor fue) filter D~sconnect
fuel line at carburetor Remove fuel inlet nut C, gas-
kets D, filter E Remove also the spnng on models
7 4GL, 8 2GL Replace filter, or clean wmth solvent
and blow dry Install filter, gaskets and fuel inlet nut
Tighten nut securely Connect fuel line and tighten
securely Clean up any sp=lled fuel Run the engine
compartment fan (blower)
~
4 min, start the engine
and inspect thoroughly for any leakage.
12. Engine Fuel FHter. The fuel filter B is located in
the fuel line before the fuel pump
NOTE! The fuel injected engine requires a special
marine filter w~th a 5-10 m~cron filtering capabilty.
Do not substitute any other type of filter
A
WARNING! Accumulation of water and other
fuel contaminants may form corrosive com-
pounds which can damage the fuel filter and
other fuel system components, resulting in
fuel leakage. For th~s reason, annual replace-
ment of the fuel filter is required to avoid risk
of explosion or fire
Unscrew fuel filter by turning counterclockwise, re-
move and discard Note~ The old filter contains
flammable fuel Please d~spose of old filter properly
Lightly lubricate the gasket on new fuel filter Screw
on fuel filter by turning clockwise and hand bghten,
following instrucbons on filter Clean up any spilled
fuel
Run the engine compartment fan (blower) for 4 mln,
start the engine and check for leakage
E
D
13. Backfire Flame Arrestor. Remove the backfire
arrrestor A each year for cleantng. Clean In solvent,
air dry, and respect for damage Replace if dam-
aged Reinstall flame arrestor making sure umt is
securely fastened.
z~
WARNmNG! To prevent fire or explosion in
the engine compartment, the backfire flame
arrestor must always be in place, properly se-
cured, and undamaged
