20
3. Move the lever to neutral position. Hold the lever
in this position.
Acknowledge the position by pressing in the
green button for at least three seconds.
4. Move the control lever to the position where
throttle ahead (forward) movement is to start.
Hold the lever in this position.
Acknowledge the position by pressing in the
green button for at least three seconds.

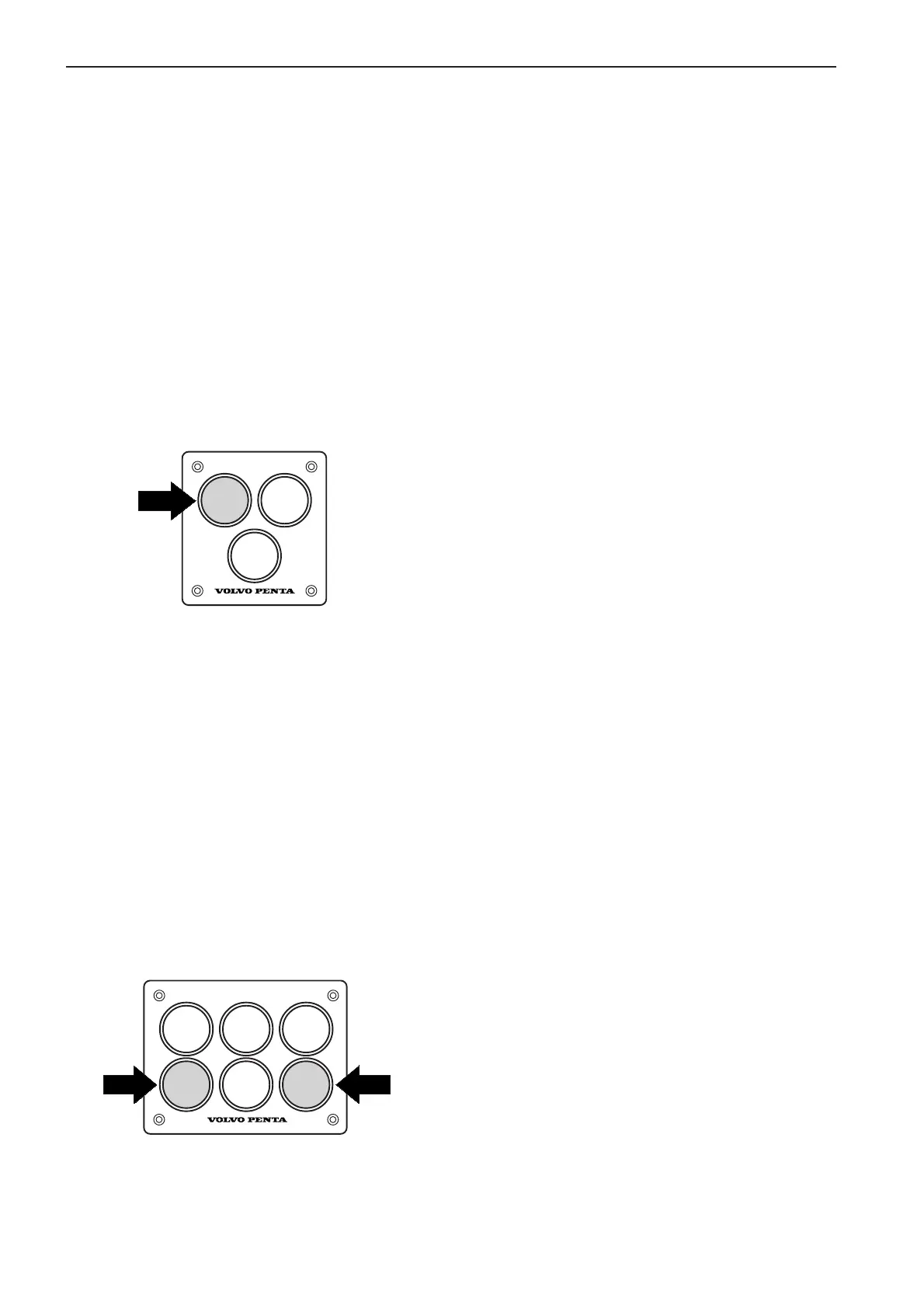

TAMD73P and TAMD74: EDC control panel for
one or more control stations (double installation)
1. Port engine
2. Starboard engine
NEUTRAL
12
NEUTRAL NEUTRAL
TAMD73P and TAMD74: EDC control panel –
Single engine
Calibrating electronic/mechanical dual
lever controls
NOTE! Ensure that the levers are parallel with
each other. This is to avoid faults when calibrat-
ing.
NOTE! Calibrate first at the Master Control Sta-
tion followed by the other control stations(s).
1. Set the EDC system to calibration mode accord-
ing to instructions in “Preparations” (see page
18).
2. Move the throttle lever to wide open throttle
(WOT) position. Hold the lever in this position.
Acknowledge the position by pressing in the
green button (Neutral) for at least three seconds.
3. Move the lever to idling position. Hold the lever in
this position.
Acknowledge the position by pressing the green
button. Hold for at least 3 seconds.
4. Move the shift function lever to the position at
which the reverse gear is engaged for Ahead
(forward) movement. Hold the lever in this posi-
tion.
Acknowledge the position by pressing the green
button. Hold for at least 3 seconds.
5. Move the shift function lever to the position
where the reverse gear is engaged for Astern
(rearward) movement. Hold the lever in this posi-
tion.
Acknowledge the position by pressing the green
button. Hold for at least 3 seconds.
6. Return the levers to neutral respectively idling po-
sition. Hold the levers in this position.
Acknowledge the position by pressing the green
button. Hold for at least 3 seconds.
7. Finish calibration by pressing the green button
(the green and the yellow lamps stop flashing).
5. Move the control lever to the position where
throttle astern (rearward) movement is to start.
Hold the lever in this position.
Acknowledge the position by pressing in the
green button for at least three seconds.
6. Return the lever to the Neutral position.
Acknowledge the position by pressing in the
green button for at least three seconds.
7. Finish calibration by pressing down the green
button (the yellow and green buttons then stop
flashing).
