Volvo 760 - Replacing Sealed Beam Headlamp Units

1987 Volvo 760
Replacing sealed beam headlamp units

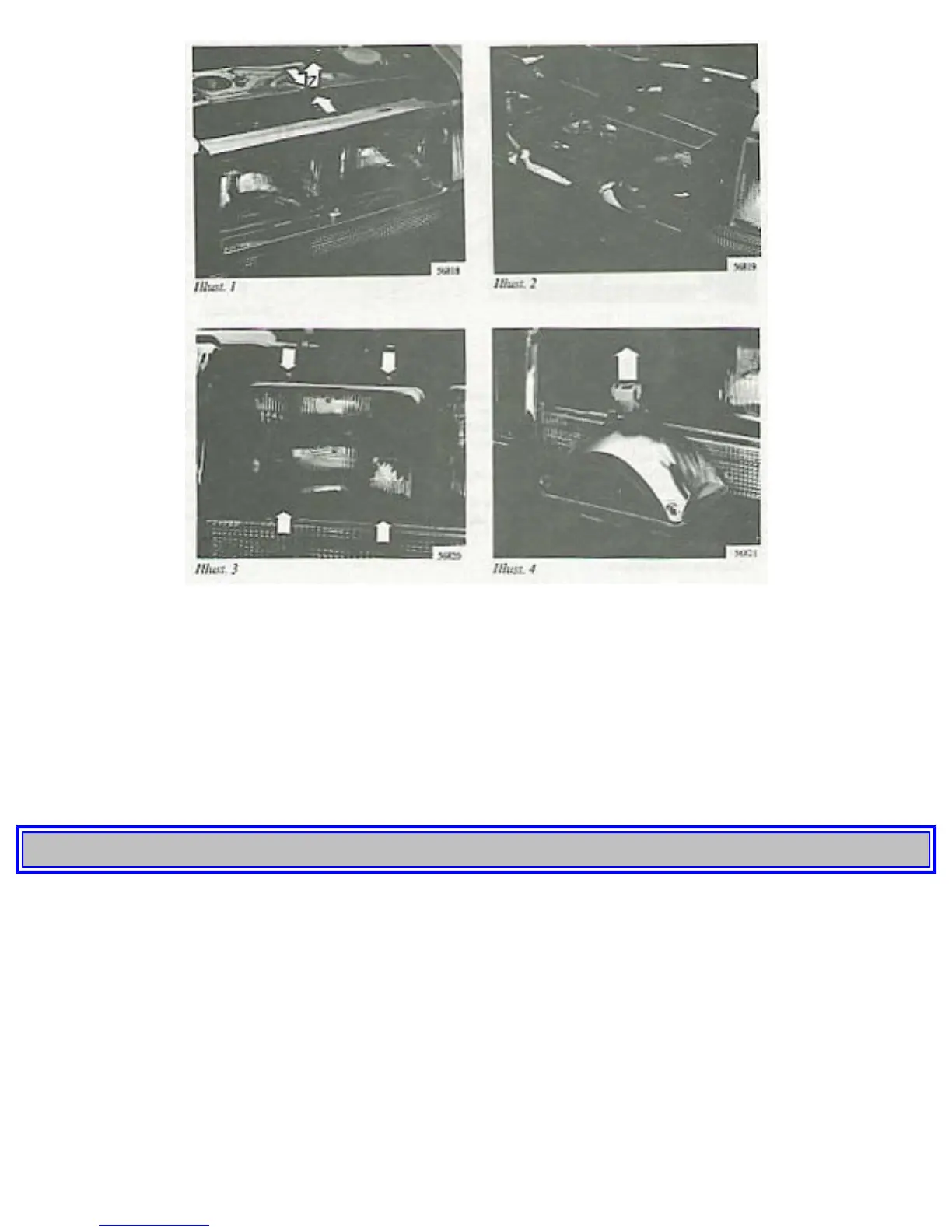

1 Squeeze the clip and pull it upwards.
2 Lift up the rim slightly and remove it forwards.
3 Remove the Phillips screws and rim. Lift out the headlamp unit.
4 Disconnect the socket contact.
Installation is done by reversing the procedure.
Check headlight alignment.
pg. 74 Replacing bulbs
