Volvo 850 User Manual

1996 Volvo 850

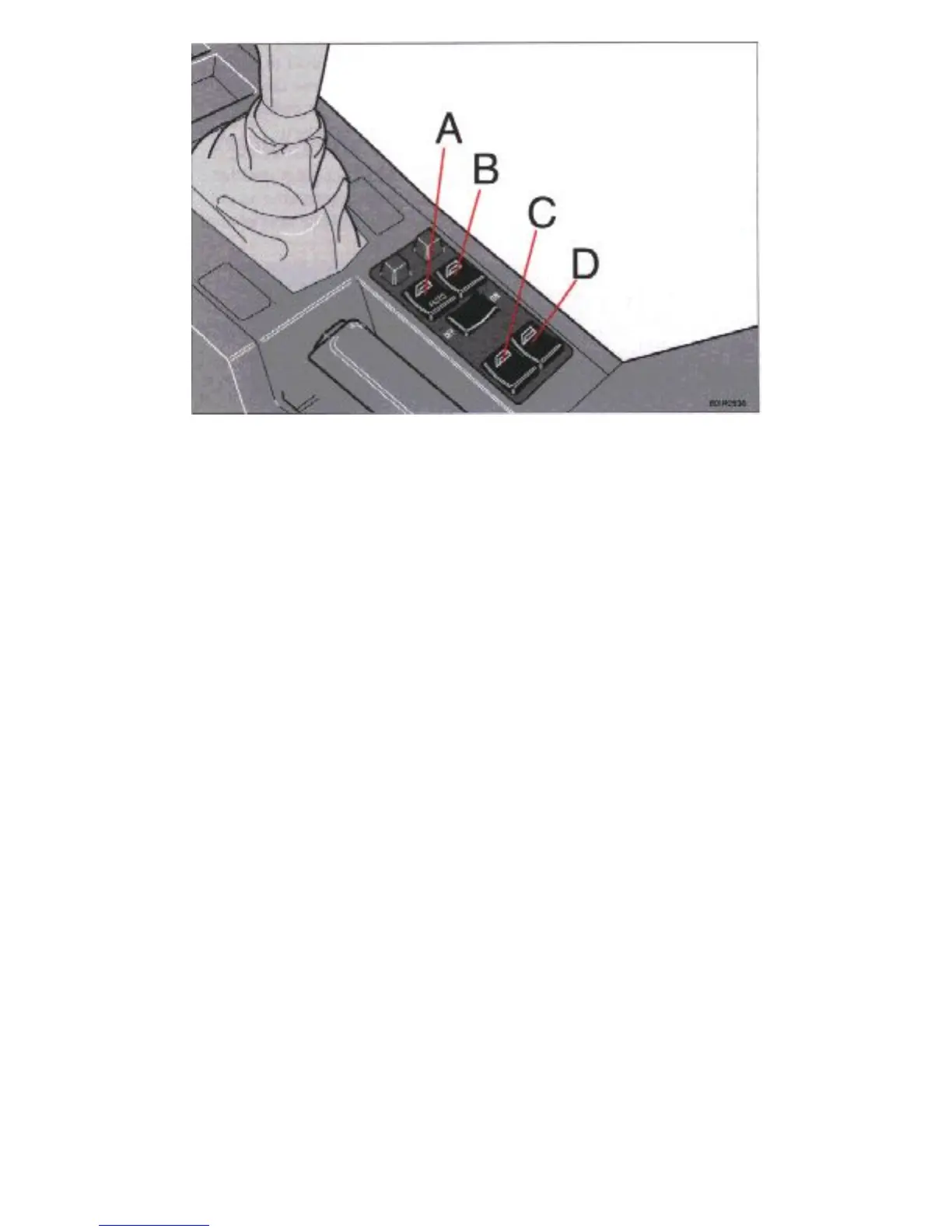

A-Left front, B-right front, C-left rear, D-right rear
Electrically-operated windows
The electrically operated windows are controlled by switches in the center console as shown in the
illustration above. The starting (ignition) switches must be ON (position II) for the electrically-operated
windows to function. The window is lowered if the rear part of the switch is pressed and raised if the
front part of the switch is pressed.
NOTE: Driver's window only (AUTO): The window can be opened completely by pressing the rear part
of the switch lightly and releasing it immediately. The window can be stopped by pressing the button
again. If the button is held down, the window will be lowered until the button is released.
The power window motors have an overload protecting circuit breaker which is activated when an object
blocks a window. Should this occur, remove the object and wait 20 seconds for the circuit breaker to
reset. The power windows should then function.
file:///K|/ownersdocs/1996/1996_850/96850_119.htm (9 of 10)12/30/2006 9:59:03 AM

Volvo 850 Specifications

Torque Specifications

ABS Sensor Torque	7 ft. lbs. (10 N.m)
Bearing Cap Torque	18 ft. lbs. (25 N.m)
Lug Nuts Torque	81 ft. lbs. (110 N.m)
Suspension Arm Nuts Torque	13 ft. lbs. (18 N.m)
Suspension Arm To Anti-Roll Bar Torque	37 ft. lbs. (50 N.m)
Suspension Arm To Anti-Roll Bar Center Nut Torque	80 ft. lbs. (120 N.m)
