1 Unscrew and remove tail lamp inside cover. Note that inside cover is hooked at the lower edge.
2 Remove plastic screw A and remove bulb holder and bulb (one unit).
3 Depress bulb in bulb holder, turn it slightly counterclockwise, and remove it.
4 Install a new bulb. Install bulb holder in tail lamp.
5 Check that bulb lights. Replace tail lamp inside cover.

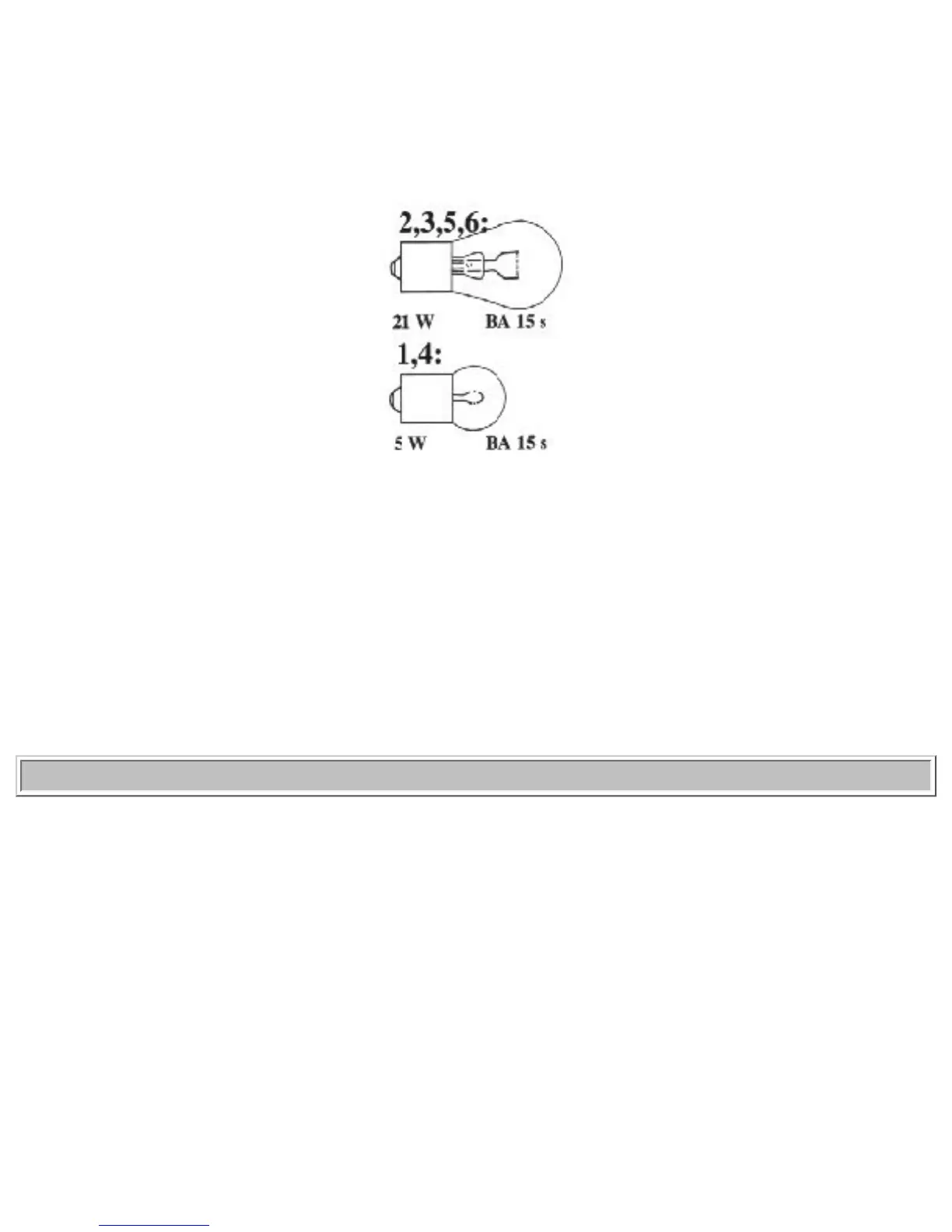

Bulbs Power Socket US Bulb No
CP(W)
1,4 Tail light 4 (5) BA 15s 67
2 Rear turn signal 32 (21) BA 15s 1156
3 Brake light 32 (21) BA 15s 1156
5 Back-up light 32 (21) BA 15s 1156
6 Rear foglight* 32 (21) BA 15s 1156
* One light only, on left side
pg. 6:8 Replacing bulbs, Wagons
