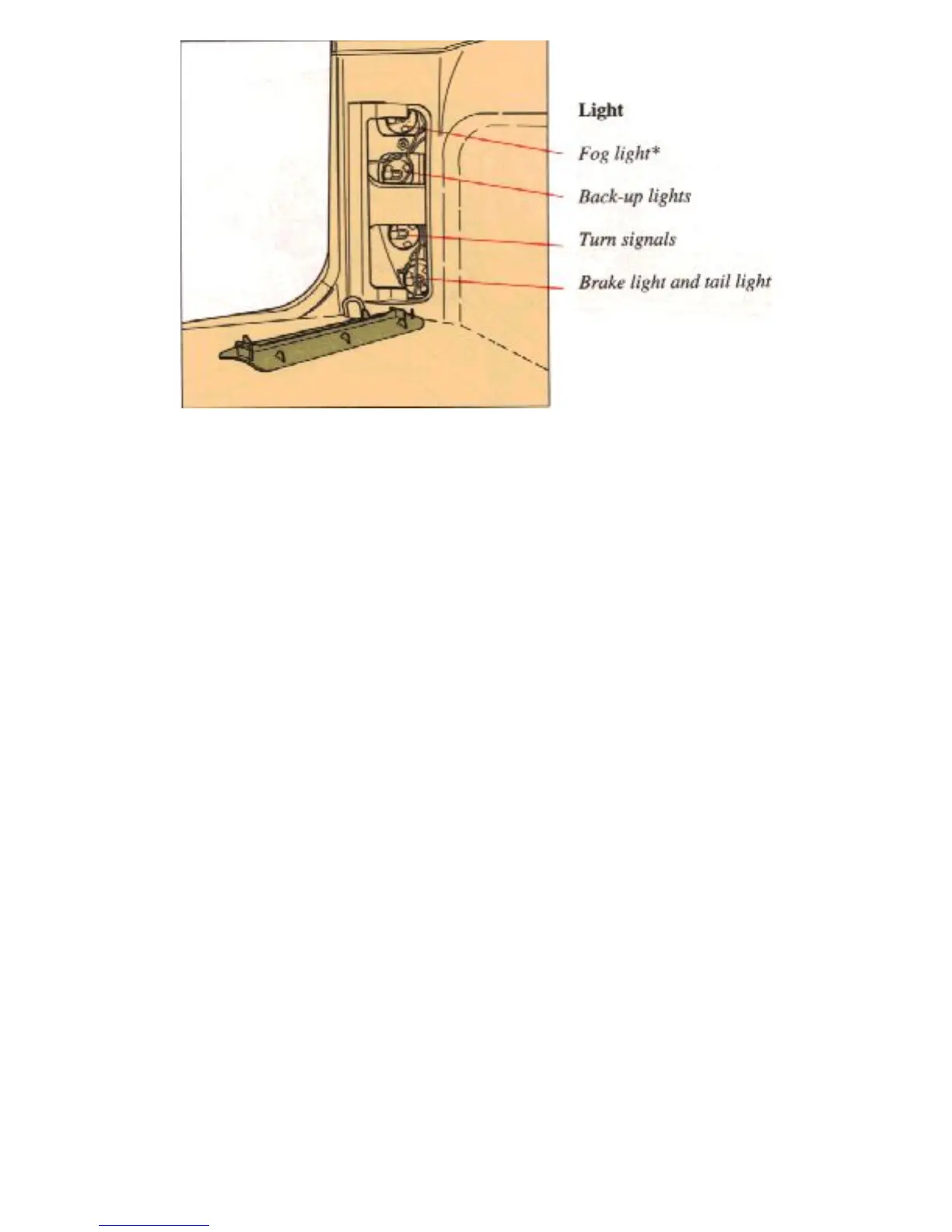

All tail light bulbs are replaced from inside the vehicle
Light Wattage Socket
fog light * 21W 32CP BA15s
Back-up lights 21W 32CP BA15s
Turn signals 21W 32CP BA15s
Brake light and tail light 21/5W 32/3CP BAY15d
White lamp holders on the right side, black holders on the left side.
* Left side only
Replacing tail light bulbs (wagon models)
To avoid confusion, replace the bulbs one at a time.
● Turn off the lights
● Remove the cover with a screw driver
● Rotate the bulb holder about 1/2" (1 cm) counterclockwise and remove the holder from the tail light
cluster.
● Gently press the bulb into the holder, then rotate the bulb counterclockwise in order to release it.
● Install a new bulb in the holder and replace the bulb holder in the tail light cluster.
● Turn the bulb holder clockwise
● Check that the bulb lights
● Re-install cluster cover
