Volvo B 21 - Spark Plug Thread Repair

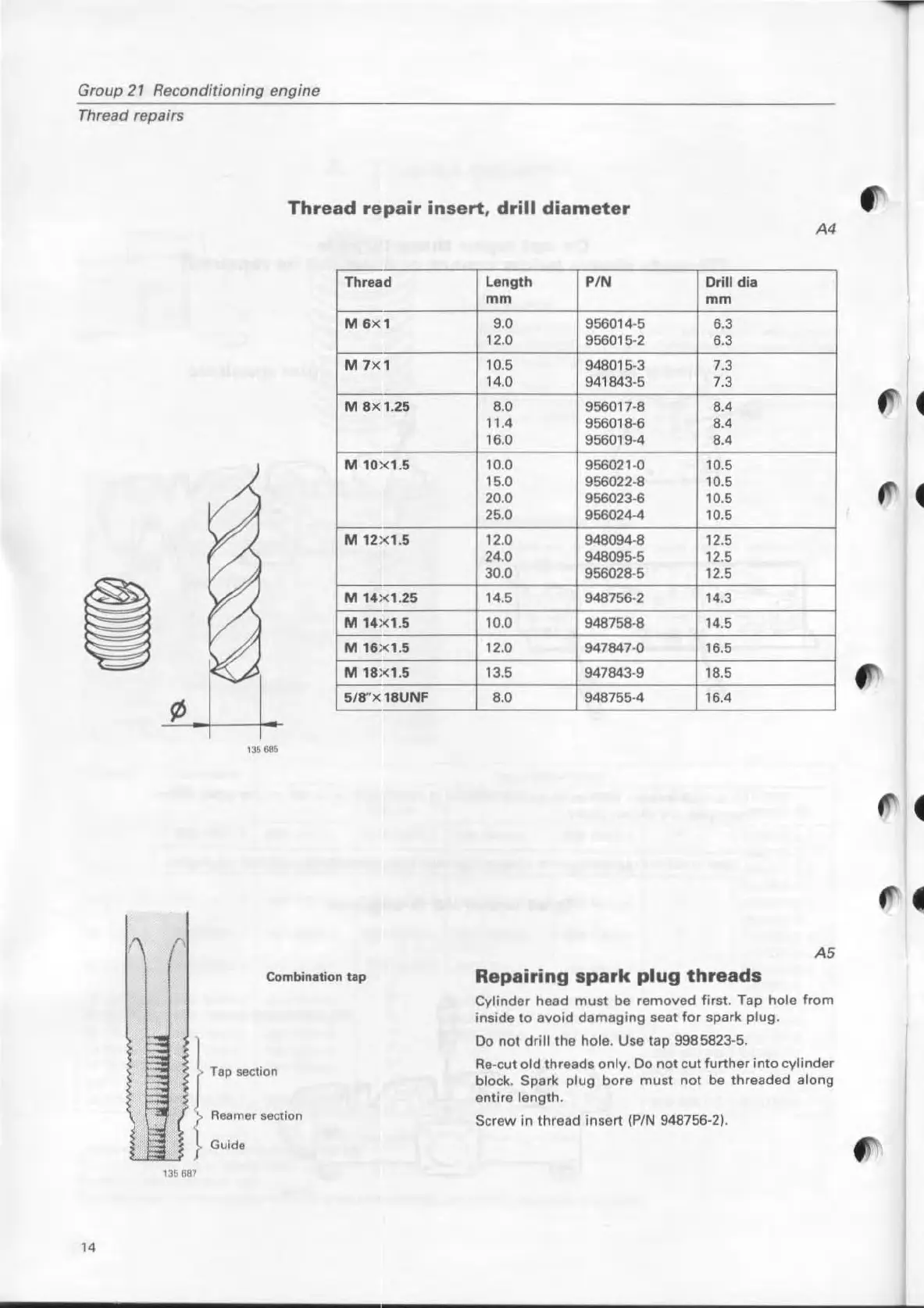

Group 21 Reconditioning engine
Thread repairs
Thread repa ir i nsert , drill diameter
Thre ad
M 6x l
M 7Xl
M 8x l .25
M
10 :< 1.5
M 12x l .5
M 14Xl .25
M 14x l .5
M 16Xl .5
M 18 ;< 1.5
5/ S" x 18UNF
Tap smion
Asamer section
Guide
14
A4
Le ngth PIN Drill dia
mm
mm
9.0 956014-5
6.3
12.0
956015·2
6.3
10.5
948016-3
7.3
14.0
941843-5 7.3
8.0
956017·8
8.4
11.4
956018·6 8.4
16.0 956019-4 8.4
10.0
956021-0 10.5
15.0
956022-8
10.5
20.0
956023·6 10.5
25.0
956024-4 10.6
12.0
948094-8
12.5
24.0 948095-5
12.5
30 .0 956028-5 12.5
14
.5 948756 -2 14.3
10.0 948758-8
14.5
12.0 947847-0 16.5
13.5
947843·9
18.5
8.0
948755-4
16.4
AS
Repairing spark plug threads
Cylinder head must be removed fi r st . Tap ha le from
inside
to avoid damaging seat for spark plug.
Do not drill the hole. Use tap 9985823 · 5.
Re ·c ut old threads only. Do not cut further inta cylinder
block.
Spark plug bore must not be threaded along
entire length.
Screw in thread insert (PIN 948756-2).
