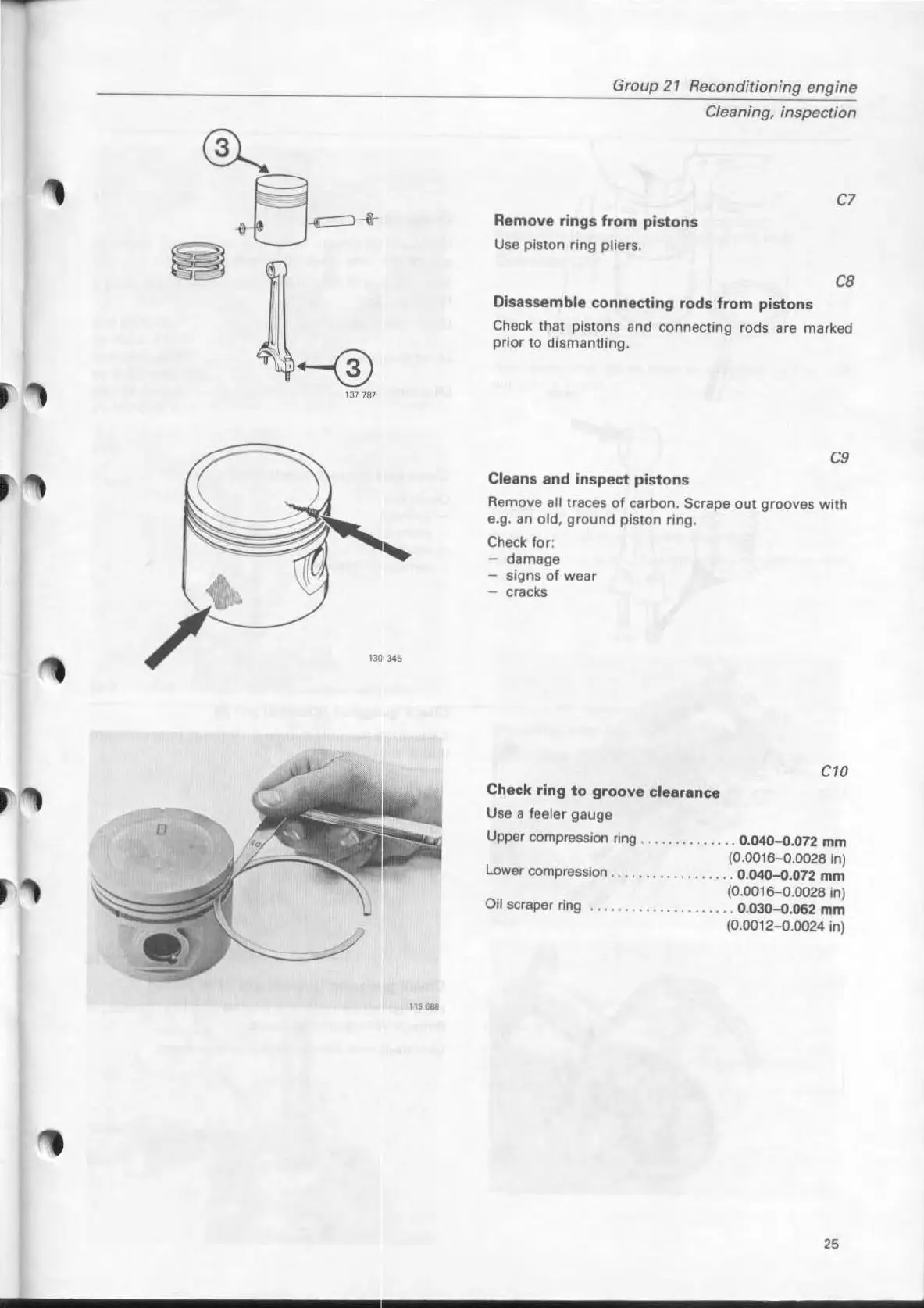

Group 27 Reconditioning engine
Remove rings from pistons
Use piston ring pliers.
C/eaning, inspection
C7
ca
Disassemble connecting rods from pistons
Check that pistons and connecting rads are marked
prior to dismantling.
C9
Cleans and inspect pistons
Remove all traces of carbon. Scrape out grooves with
e.g. an old , ground piston ring.
Check for:
damage
signs
of wear
cracks
Cl0
Cheek ring to groove clearanee
Use a feeler gauge
Upper compression
ring ..
lower compression ....
Oil scraper ring ...... .
. . .. 0.040-0.072 mm
(0.0016-0.0028 in)
. . 0.040-0.072 mm
(0. 0016-0 .0028 in)
. . 0.030-0.062 mm
(0. 0012-0 .0024 in)
25
