Group 21 Reconditioning engine
Cleaning, inspection

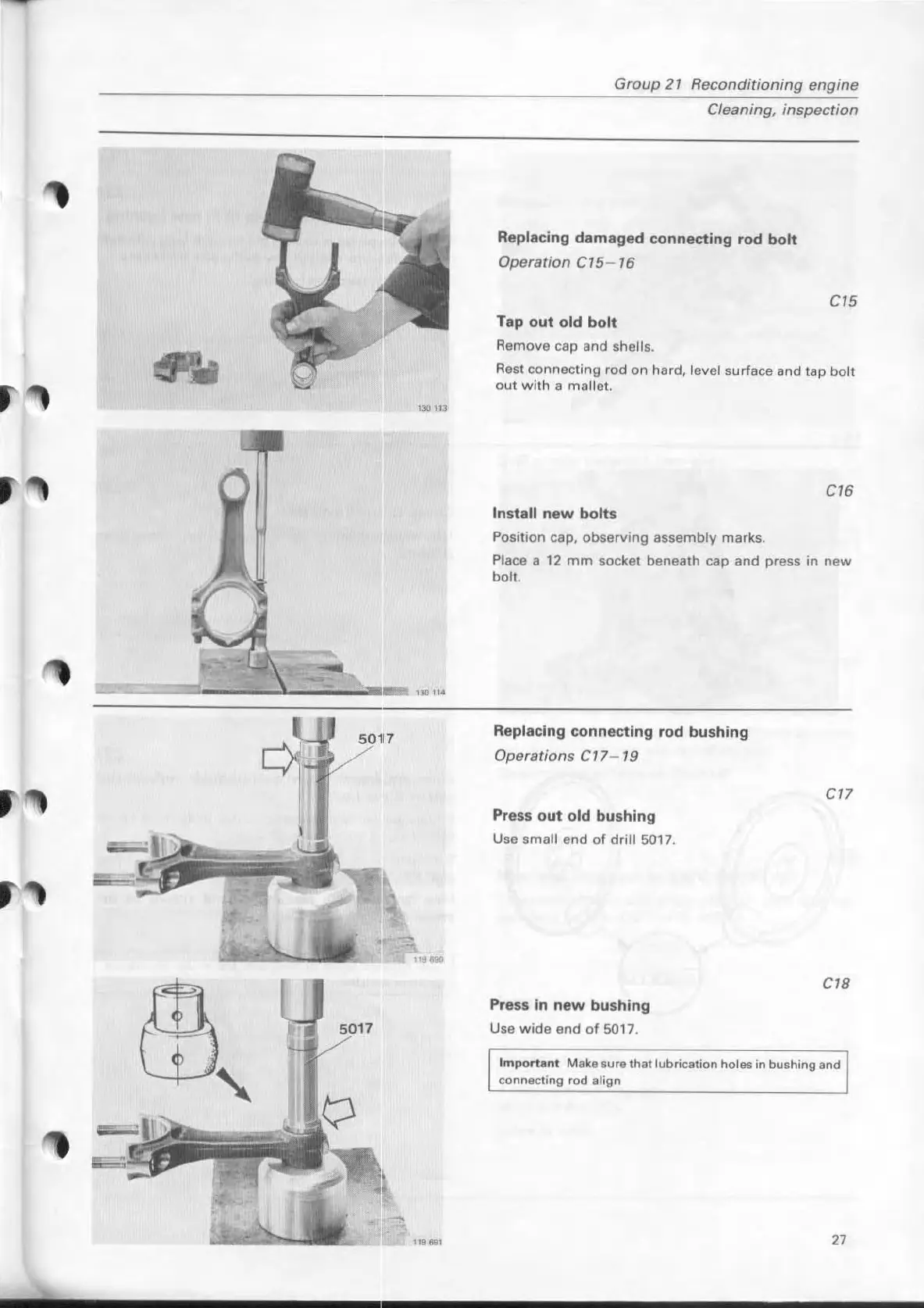

Replacing damaged connecting rod bolt
Operation C15- 16
Tap out old bolt
Remove cap and sheiis.
e15
Rest connecting rod on hard, level surface and lap bolt
oul with a mallet.
e16
Install new bolts
Position cap, observing assembly marks.
Place a 12 mm socket beneath cap and press in new
bolt.
Replacing connecting rod bushing
Operations C17- 19
Press out old bushing
Use small end of drill 5017.
Press in new bushing
Use wide end of 5017.
e17
e18
Important Make sure that lubrication holes in bushing and
connecting rod
align
