Volvo B 21 - Engine Assembly Procedures; Crankshaft Installation Steps

Group 21 Recondit ioning engine
Assemb/y
5
32
I"
,,'
,\
I J

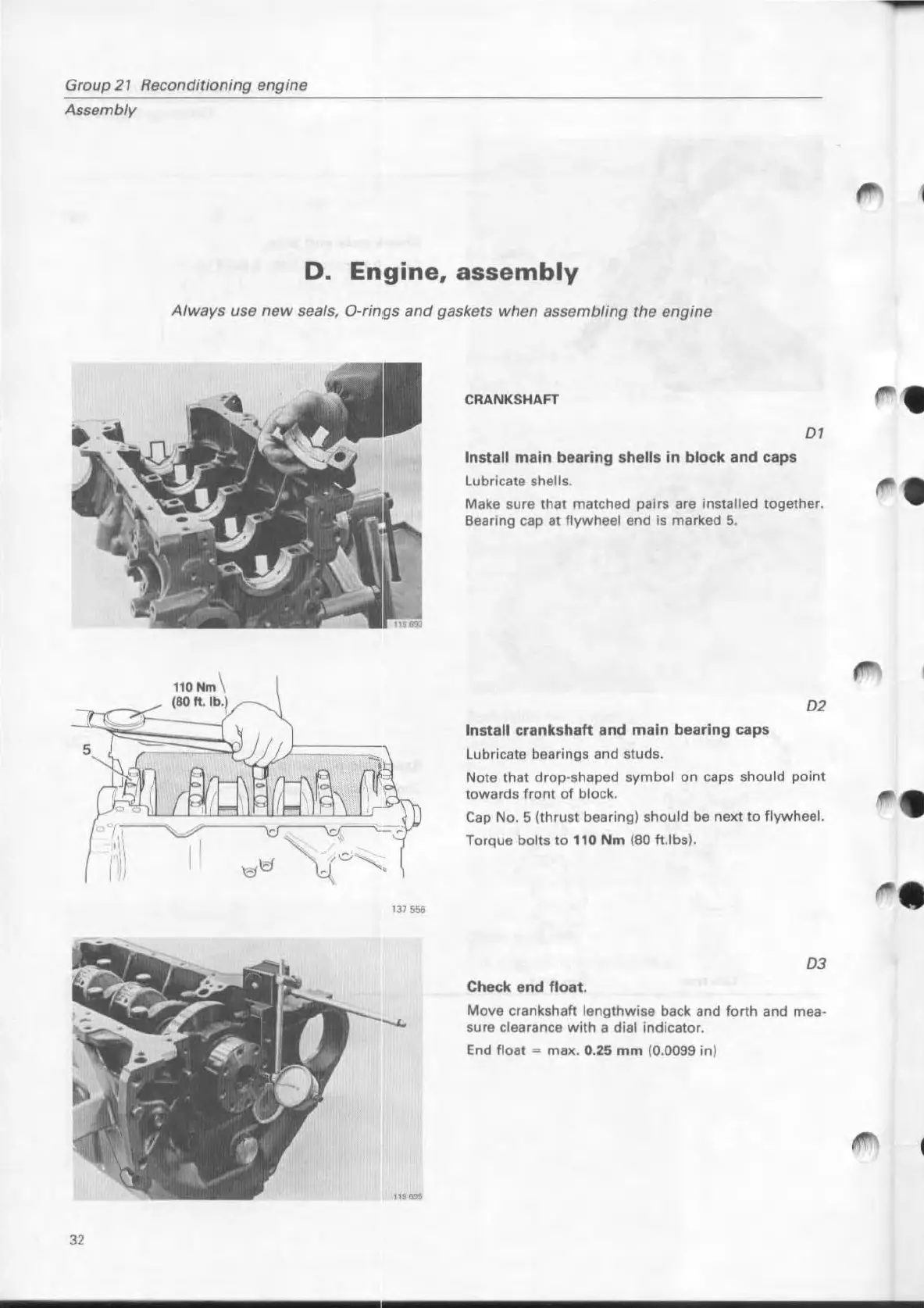

D. Engine, assembly
A/ ways use new sea/s, O-rings and gaskers when assembling the engine
" ' Hm \
( 80 II. I • . ,
1375!w6
CRANKSHAFT
Install ma in bearing shelIs in block and caps
Lubricate shelIs.
DI
Make sure that matched pairs are installed together.
Bearing cap at
flywheel end is marked 5.
Install crankshatt and main bearing caps
Lubricate bearings and studs.
02
Nate that drop-shaped symbol on caps should point
towards
front of block.
Cap
No. 5 (thrust bearing) should be next to flywheel.
Torque ba lt s to 110 Nm (80 tUbs) .
03
Check end float .
Move crankshaft lengthwise back and forth and mea-
sure
dearance wi th a dial indicator.
En d floal '" max. 0.25 mm (0.0099 in)
1
