Working under raised
loader arm
191 Service Information 2014/3/20
Profile:
BHL, BL70 [GB]
Working under raised loader arm
Always secure the loader arm with safety strut before beginning any work.

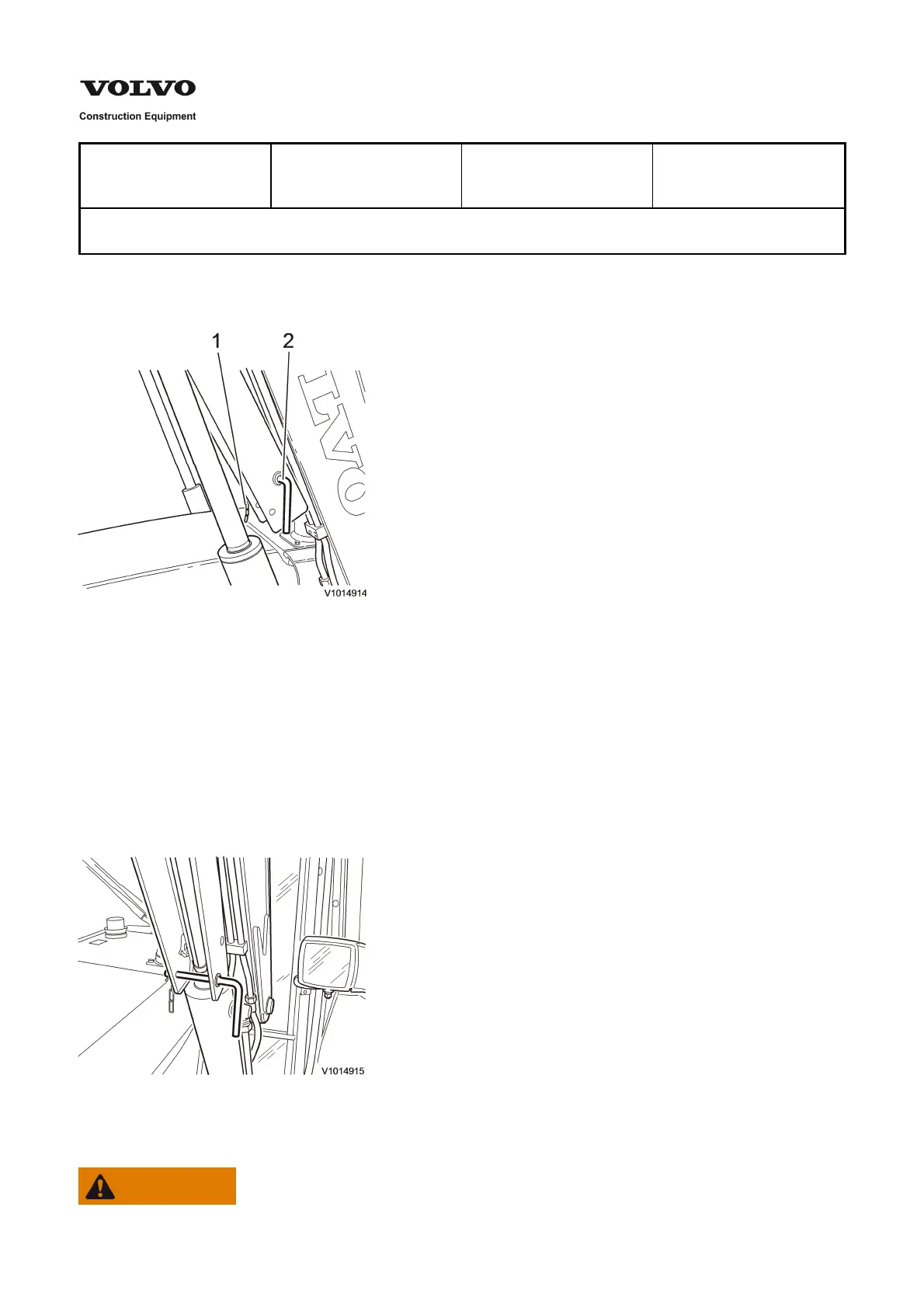

Figure 1
Securing loader arm
1.
2.
Spring cotter
Pin
1.
2.
3.
4.
Raise the loader arm to the upper position.
Disconnect the spring cotter.
Remove the pin and lower the safety strut in position over cylinder rod.
Fit the pin and connect the spring cotter.
Lower the loader arm until it rests on the safety strut.
Figure 2
Securing loader arm
WARNING
Check that the safety strut is positioned correctly on the loader arm.
