Volvo D20 - Cleaning and Checking Engine

tapar
Group 27 Reconditioning engine
Cleaning, checking

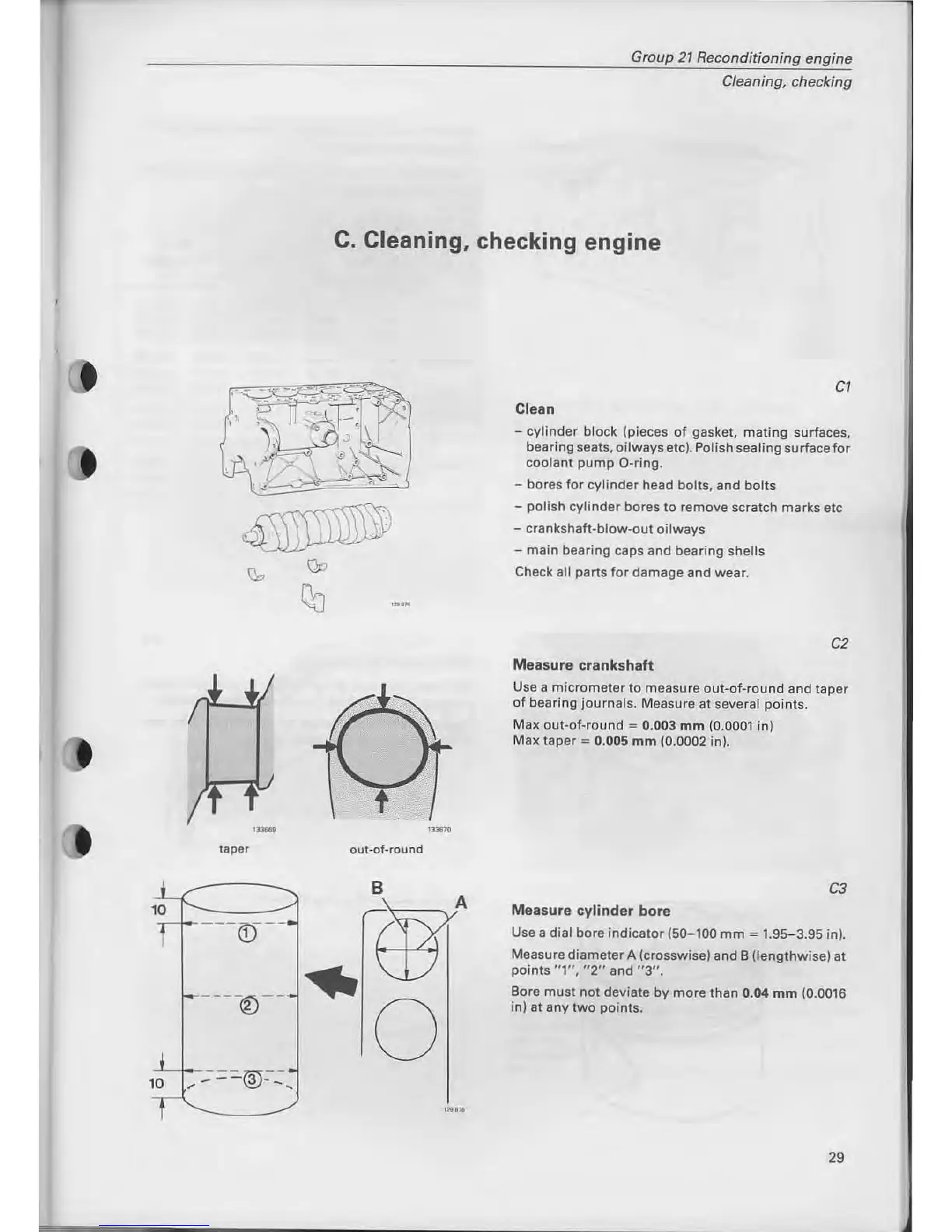

C. Cleaning, checking engine
out-af-round
" ....
el
Clean
- cylinder block (pieces of gasket, mating surfaces,
bearing seats,
oilways etc). Polish sealing surface for
coolant pump O-ring.
- bores for cylinder head balts, and balts
- polish cylinder bores to remove scratch marks etc
- crankshaft-blow-out
oilways
- main bearing caps and bearing she Ils
Check all
parts for damage and wear.
e2
Measure crankshaft
Use a micrometer to measure out-af-round and taper
of bearing journals. Measure at several points.
Max
out·of-round = 0.003 mm (0.0001 in)
Max taper
= 0.005 mm (0.0002 in).
e3
Measure cylinder bore
Use a dial bore indicator (50-100 mm "" 1.95-3.95 in).
Measure diameter A (crosswise) and B
(lengthwise) at
points "1", "2" and "3".
Bare must not deviate by more than 0.04 mm (0.0016
in) at any two points.
29
