Volvo D20 - Page 34

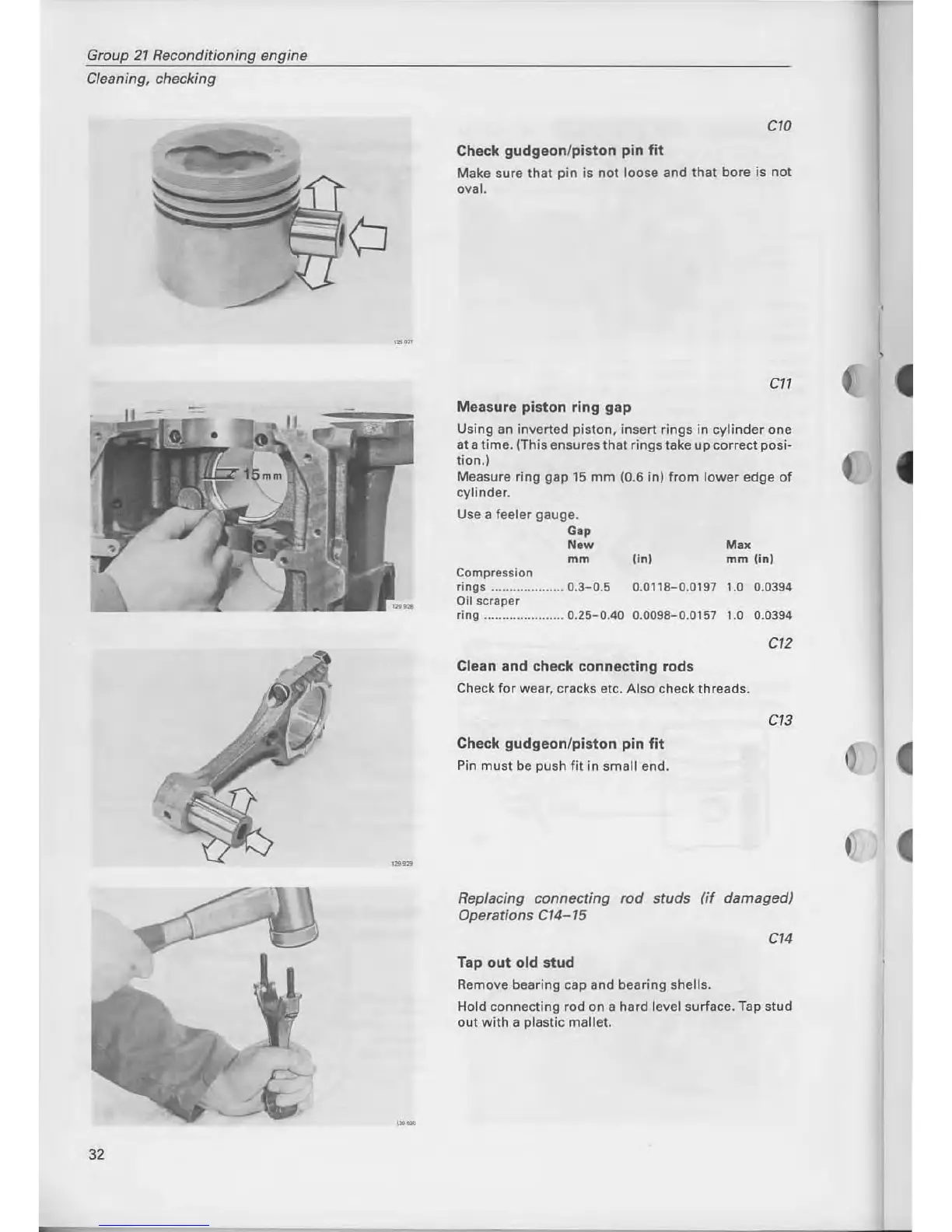

Group 21 Reconditioning engine
Cleaning, checking
,.~
,.~
,.~
32
GlO
Check gudgeon / piston pin fit
Make sure that pin is not loose and that bore is not
oval.
Gll
Measure piston ring gap
Using an inv erted piston, insert rings in cylinde r one
at a
time. (This ensures that rings take up correct posi-
tion.)
Measure ring gap
15 mm (0.6 in) from lower ed ge of
cylinde r.
Use a feeler gauge.
Compress ion
G.,
N,w
mm
Uni
Mu
mm linl
rings ........ .. .... 0.3-0.5 0.0118-0.0197 1.0 0.0394
Ojl sera per
ring ......................
0.25-0.40 0.0098-0.0157 1.0 0.0394
Clean and check connecting rods
Check for weaT, cracks etc. Also check threads.
Check gudgeon/piston pin fit
Pin must be push fit in small end.
G12
G13
Replacing connecting rod studs (if damagedJ
Operations C14-15
G14
Tap out old stud
Aemove bearing cap and bearing shelIs.
Hold
connecting rod on a hard lev el surface. Tap stud
out with a plastic mall et.
