Volvo D20 - Cylinder Head Disassembly

II
A+B = 18!:O,8mm
•

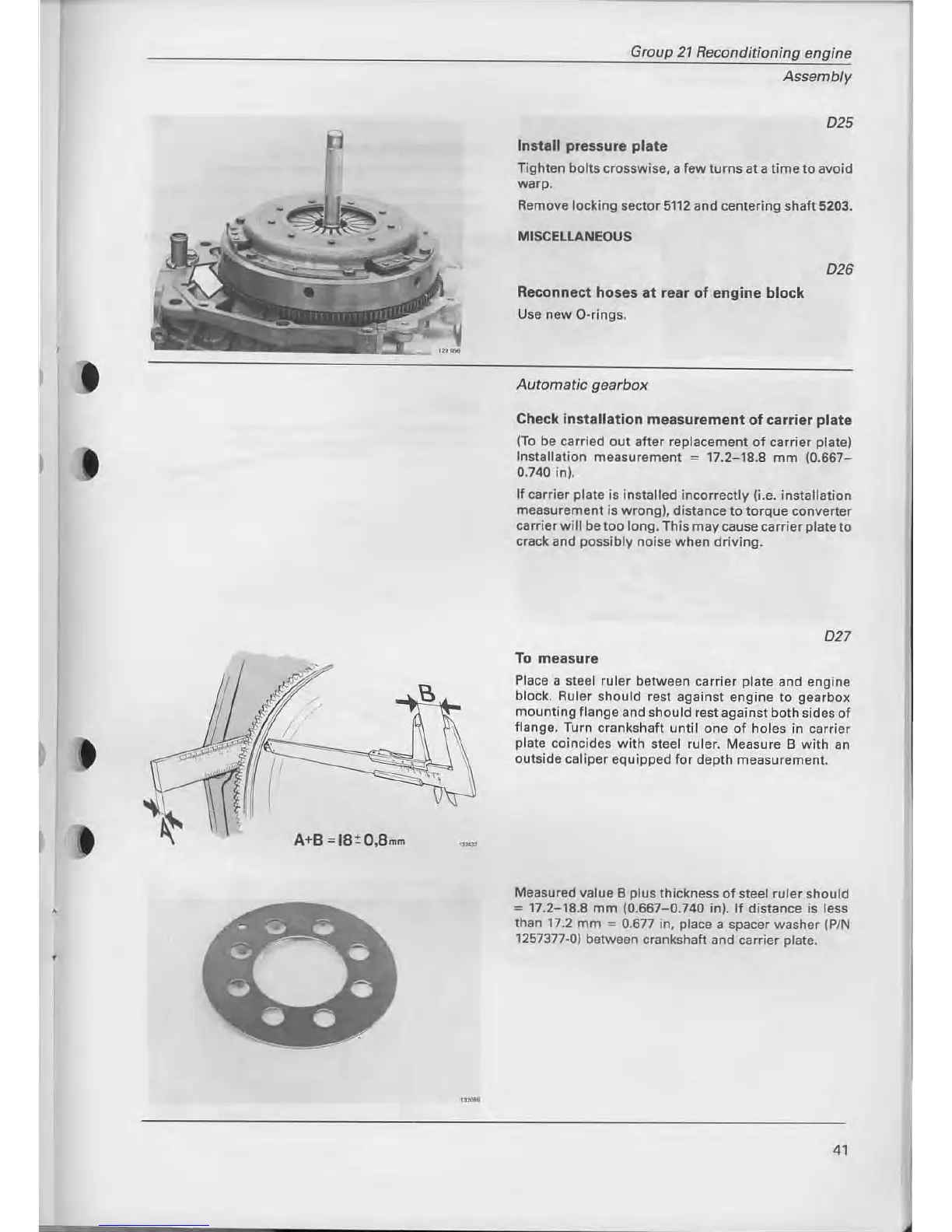

Group 21 Reconditioning engine
Assembly
025
Install pressure plate
Tighten bolts crosswise, a few turns at a time to avoid
warp.
Remove locking sector 5112 and centering shaft 5203.
MISCElLANEOUS
Reconnect hoses at rear of engine block
Use new Q-rings.
Automatic gearbox
026
Check installation measurement of carrier plate
(To be carried out af ter replacement of carrier plate)
Installation measurement = 17.2-1a.8 mm (0.667-
0.740 in).
If carrier plate is installed incorrectly (Le. installation
measurement is wrong), distance to torque converter
carrierwill be too long. This may cause carrie r plate to
crack and possibly noise when driving.
027
To measure
Place a steel ruler between carrier plate and engine
block. Ruler should rest against engine to gearbox
mounting flange and should rest against both sides of
fl ange. Turn crankshaft until one of holes in carrier
plate coincides with steel ruler. Measure B with an
outside caliper equipped for depth measurement.
Measured value B plus thickness of steel ruler should
= 17.2-18.8 mm (0.667-0.740 in). If distance is less
than 17.2 mm = 0.677 in, place a spacer washer (PIN
1257377·0) between crankshatt and carrier plate .
41
