Group 21 Reconditioning engine
Assembfy
64
- ,' -,-,-
,-q ,r (~. "
..:I .~ . r.. l.. . ~ t
, :;r-rr -, --r,
. .:::"" II /: "'\1 •
08,5
222äJ ! eazz ,
c::;
J19

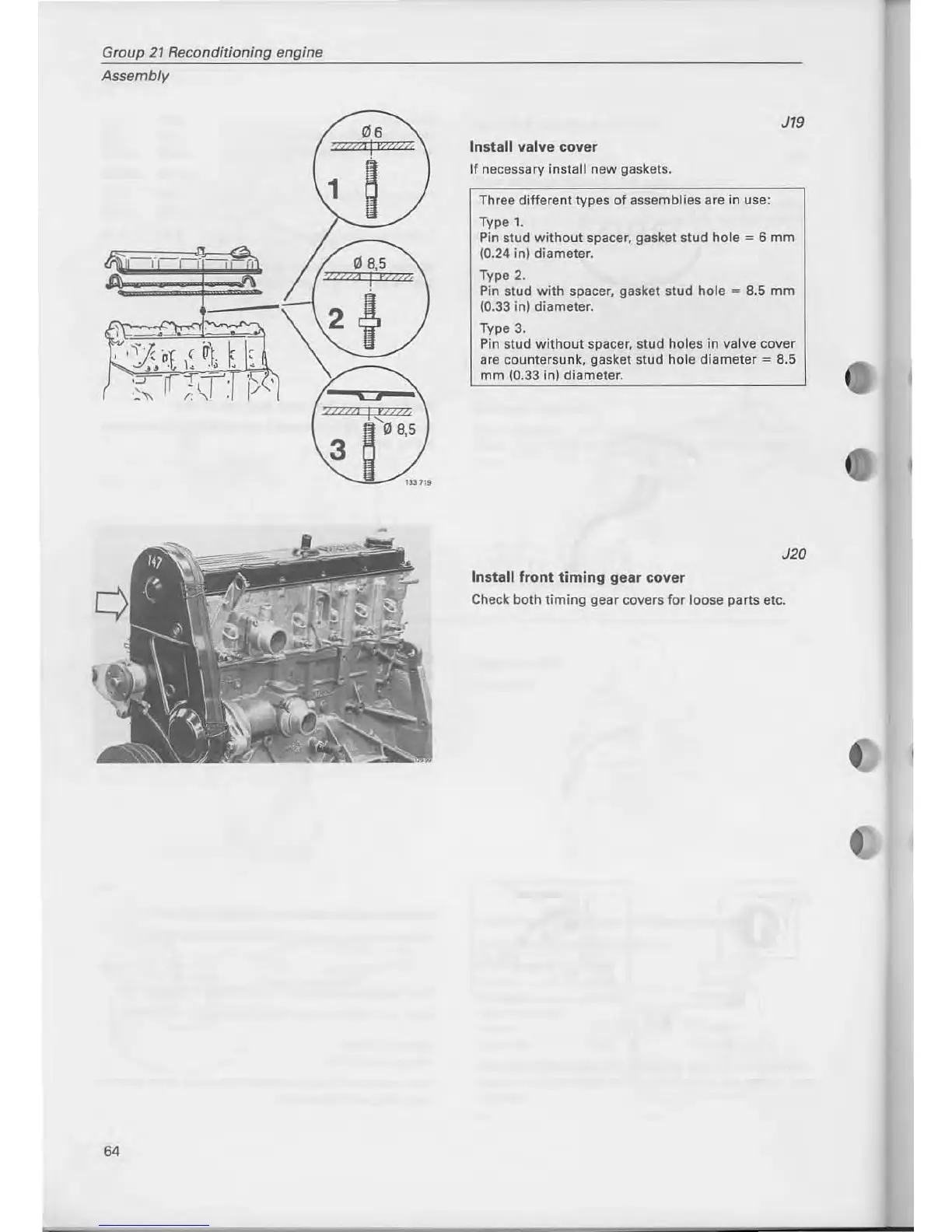

Install valve cover
If necessary install new gaskets.
Three different types
of assemblies are in use:
Type
1.
Pin stud with out spacer, gaskat stud hale = 6 mm
1 0.24 in) diameter.
Type 2.
Pin stud
with spacer, gaskat stud hote = 8.5 mm
(0 . 33 in) diameter.
Type
3.
Pin stud without spacer, stud hales in valve cover
are countersunk, gasket stud
hale diameter = 8.5
mm (0.33 in) diameter.
J20
Install front timing gear cover
Check both timing gear covers for loose parts etc.
