Group 21 Reconditioning engine
Installing parts

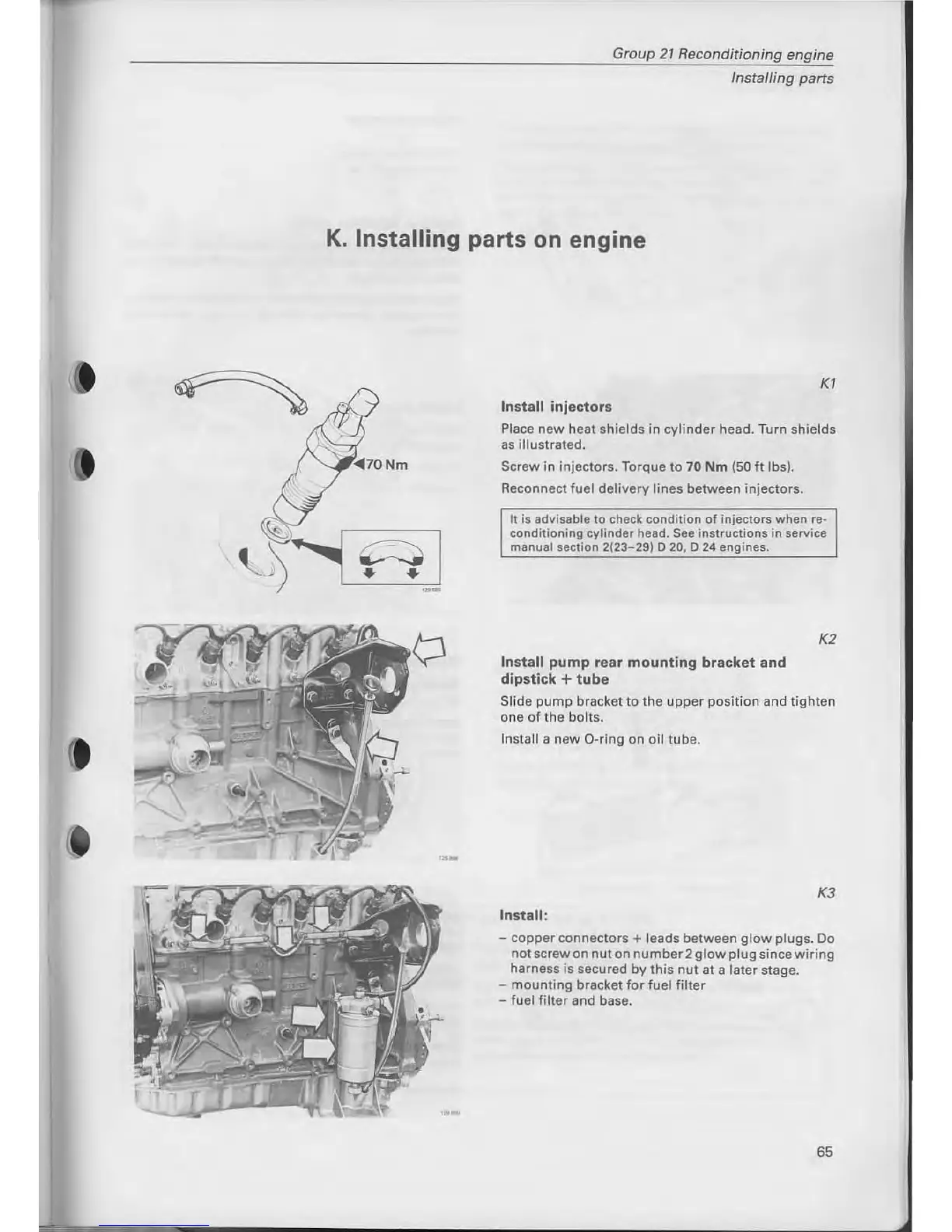

K. Installing parts on engine
Kl
Install injectors
Place new heat shields in cylinder head. Turn shields
as itlustrated.
Screw in injectors. Torque to 70 Nm (50 f t Ibs).
Reconnect fuel deli\lery lines between injectors.
II is advisable lo check condition of injeclors when re-
condilioning cylinder head. See instructions in service
manual sec tion 2(23-29) D 20, D 24 engines.
Install pump rear mounting bracket and
dipstick + tube
K2
Slide pump bracket to the upper position and tighten
one
of the balts.
Install
a new Q-ring on oil tube.
K3
Install:
- copper connectors + leads between glow plugs. Do
notscrewon nut on number 2 glow plug sincewiring
harness is secured by this nut at a later stage.
-
mounting bracket for fuel filter
- fuel filter and base.
