Volvo EWR150E User Manual

I

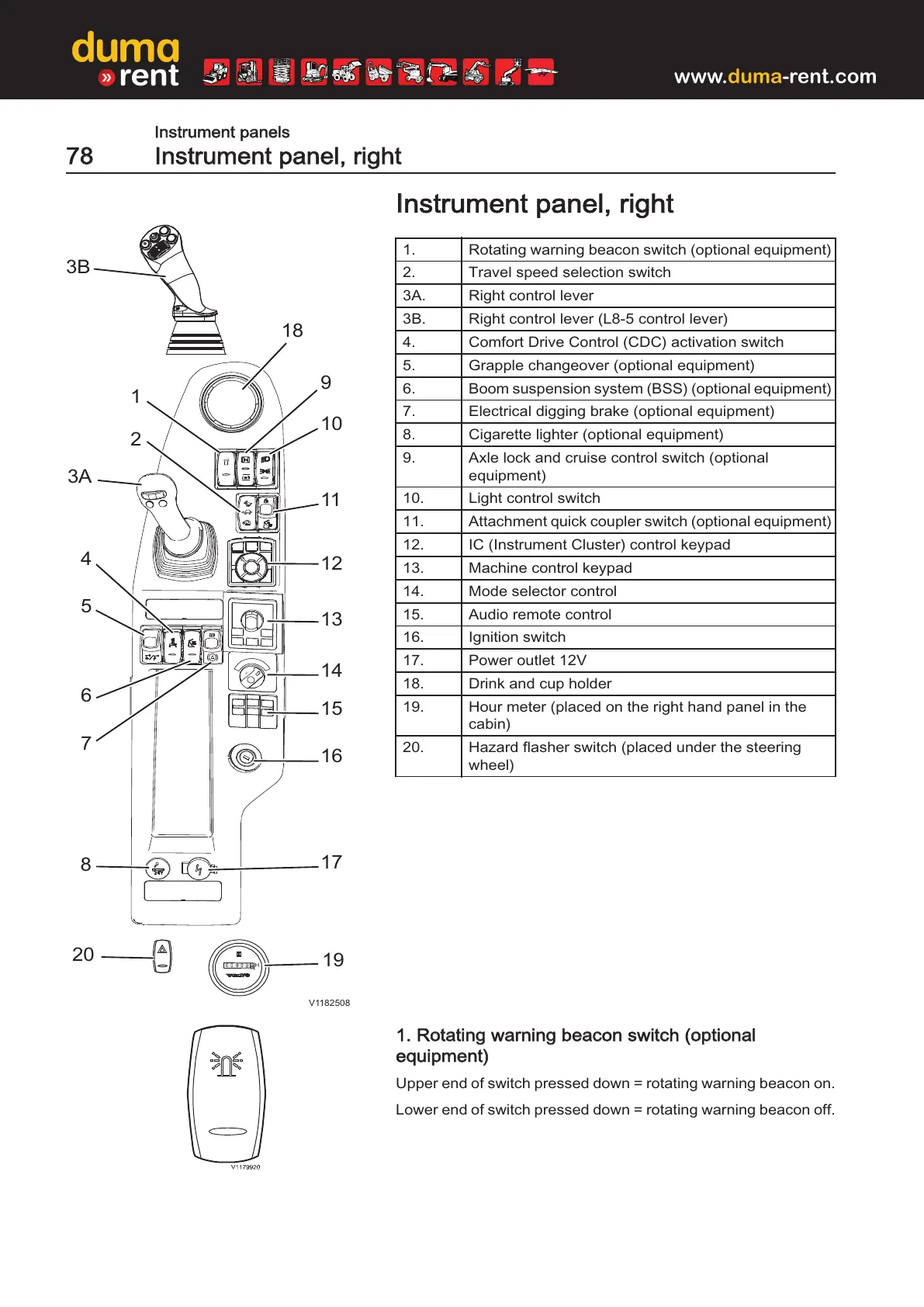

Instrument panel, right
1. Rotating warning beacon switch (optional equipment)
2. Travel speed selection switch
3A. Right control lever
3B. Right control lever (L8-5 control lever)
4. Comfort Drive Control (CDC) activation switch
5. Grapple changeover (optional equipment)
6. Boom suspension system (BSS) (optional equipment)
7. Electrical digging brake (optional equipment)
8. Cigarette lighter (optional equipment)
9. Axle lock and cruise control switch (optional
equipment)
10. Light control switch
11. Attachment quick coupler switch (optional equipment)
12. IC (Instrument Cluster) control keypad
13. Machine control keypad
14. Mode selector control
15. Audio remote control
16. Ignition switch
17. Power outlet 12V
18. Drink and cup holder
19. Hour meter (placed on the right hand panel in the
cabin)
20. Hazard flasher switch (placed under the steering
wheel)
