Instrument panels

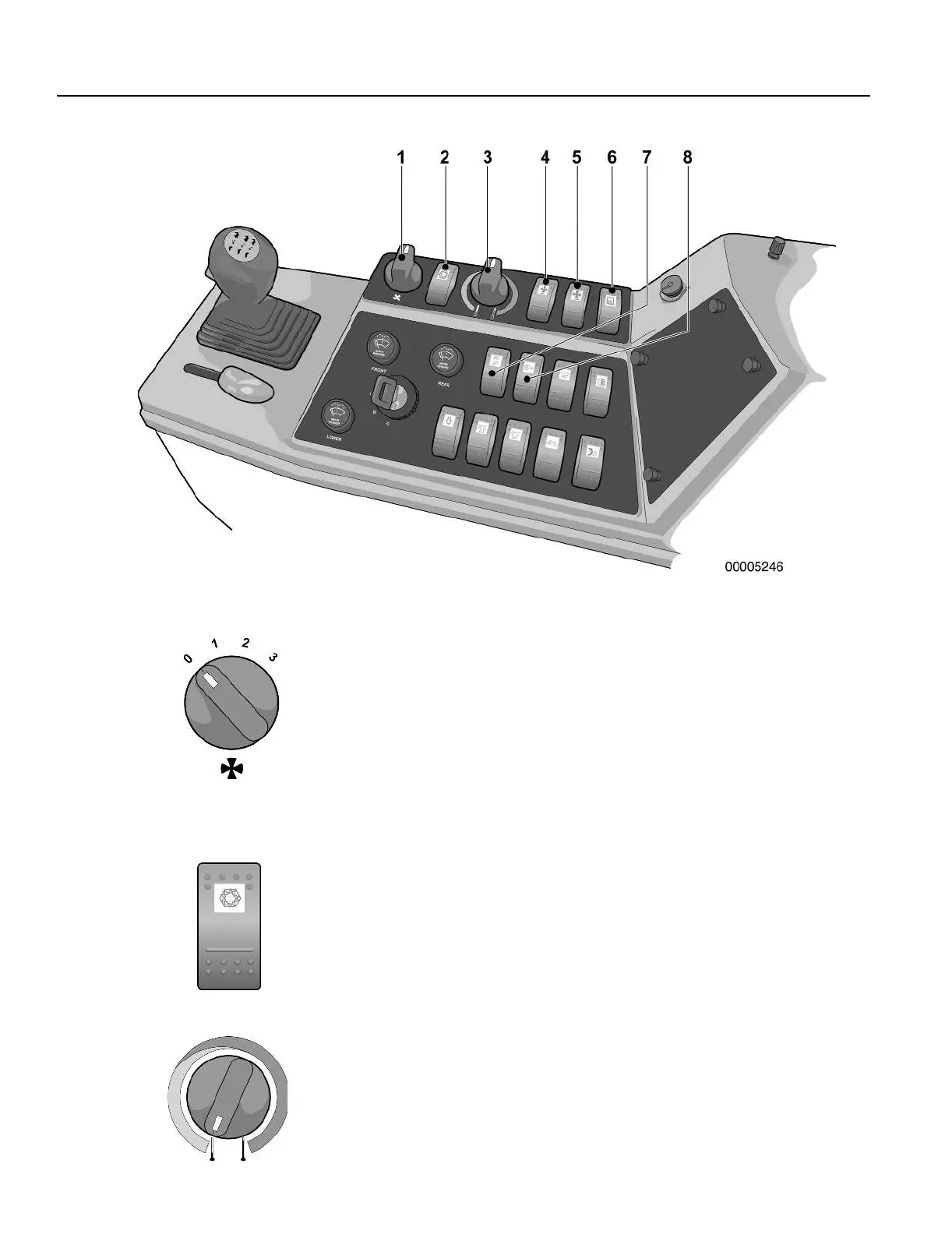

46 Side console instrument panel
1
Heater air conditioner fan speed switch
(optional)
Turn the knob to increase or decrease the heater air/conditioner
fan speed.
0 = System off
1 = Low fan speed
2 = Medium fan speed
3 = High fan speed
2
Air conditioner switch
(optional)
The air conditioning system is turned on and off using the rocker
switch. Depress the top of the switch to turn the system on. De-
press the bottom of the switch to turn it off. An indicator lamp in the
switch illuminates when the switch is activated.
3
Heater/air conditioner temperature control
(optional)
Turn the knob clockwise to raise the air temperature (warmer).
Turn it counterclockwise to lower the air temperature (cooler).
