Instrument panels
Side console instrument panel 45

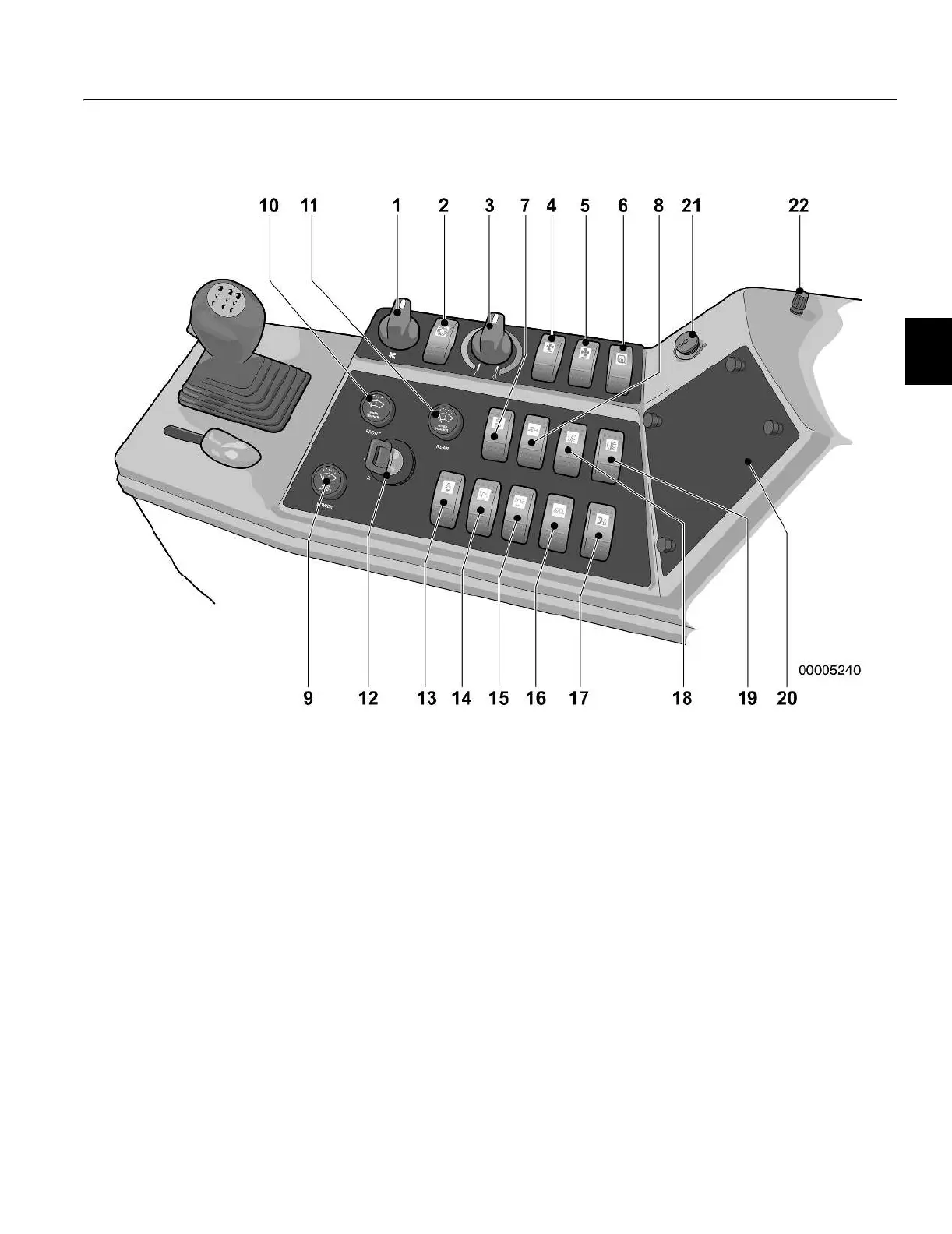

Side console instrument panel
1 Heater/air conditioner fan speed switch 12 Ignition switch
2 Air conditioner switch 13 Engine preheat switch
3 Heater/air conditioner temperature control 14 Amber revolving beacon switch
4 Front defroster fan switch 15 Blue revolving beacon switch
5 Rear defroster fan switch 16 Wing lights switch
6 Heated mirrors switch 17 Tire pump switch
7 Headlights and parking light switch 18 Moldboard lights switch
8 Extra headlights or EEC headlights and parking lights switch 19 Rear flood lights switch
9 Lower windows wiper/washer 20 Fuse and relay center access panel
10 Front windshield wiper/washer 21 Socket for service display unit
11 Rear windshield wiper/washer 22 Instrument lighting level
23 24V Remote electrical receptacle (not
shown)
