Instrument panels
52 All Wheel Drive control panel
All Wheel Drive control panel
General
The All Wheel Drive control panel is mounted on the right-hand
side of the cab in the door post. It contains all the controls and
warning lamps needed to operate the All Wheel Drive system.
The All wheel Drive System is activated by a rocker switch on the
front of the control panel (7).
Green lamps indicate system (1) and Creep mode activation (4).
The control panel has additional lamps that warn of excessive oil
temperature (5), low charge pressure (6), low oil level (2) and
clogged filter (3). These lamps alert you that a problem exists. Low
oil level and low charge pressure lamps are accompanied by an
audible alarm.
At the bottom of the control panel is the All Wheel Drive 16-posi-
tion aggression dial (9). This dial allows the operator to adjust the
power applied to the front wheels in comparison to the rear. For
further information on the operation of the All Wheel Drive system,
refer to Operating instructions, All Wheel Drive models page 91.
Warning lamps
These warning lamps indicate a malfunction with the system. If
any of these lamps energize during normal operation of the All
Wheel Drive system and remain on, perform the following:
n Turn the system off.
n Stop the grader and report the malfunction.
n Investigate the cause.
n Have the system repaired by qualified service personnel.
n Do not attempt to use the All Wheel Drive system until the fault
is repaired.
1
System activation lamp
This lamp indicates the All Wheel Drive system is activated.
2
Low oil level lamp
This warning lamp will energize, the buzzer will sound and the sys-
tem automatically shuts down when the oil level in the hydraulic oil
reservoir is too low.
3
Oil filter clogged lamp
This warning lamp will energize when the filter becomes clogged.
It may also energize during a cold start but will correct itself when
the oil temperature increases.

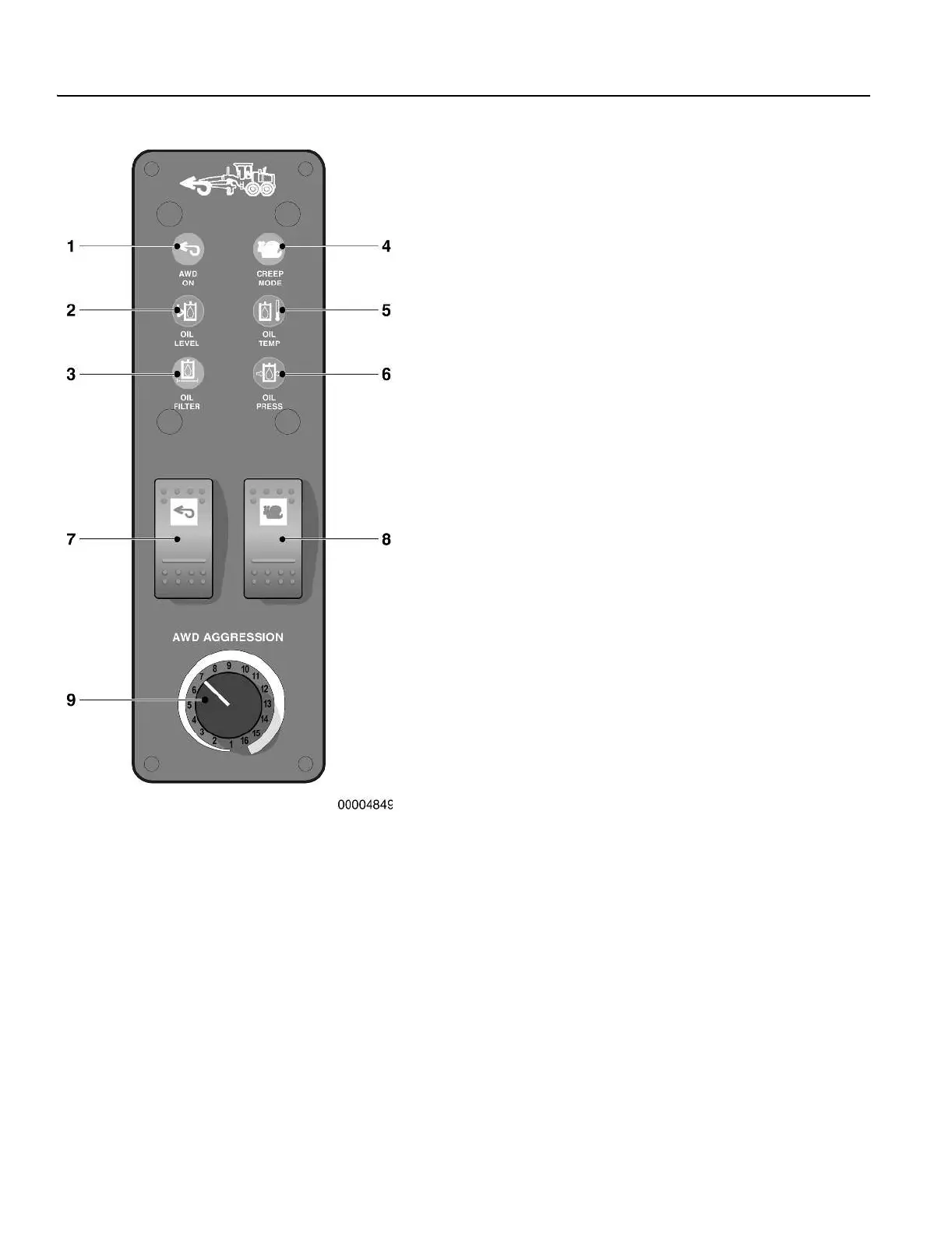

1 System activation lamp (green)
2 Low oil level lamp (red)
3 Oil filter clogged lamp (amber)
4 Creep mode activation lamp (green)
5 High oil temperature lamp (red)
6 Low oil pressure lamp (red)
7 System activation switch
8 Creep mode activation switch
9 All Wheel Drive aggression dial
