VA10800/VA10820 Evaluation Board User’s Manual
V3.0
5
statements from the VA108x0 MCU can either be logged into a file or shown on a terminal
window. See Figure 3 - Software interaction for REB1.

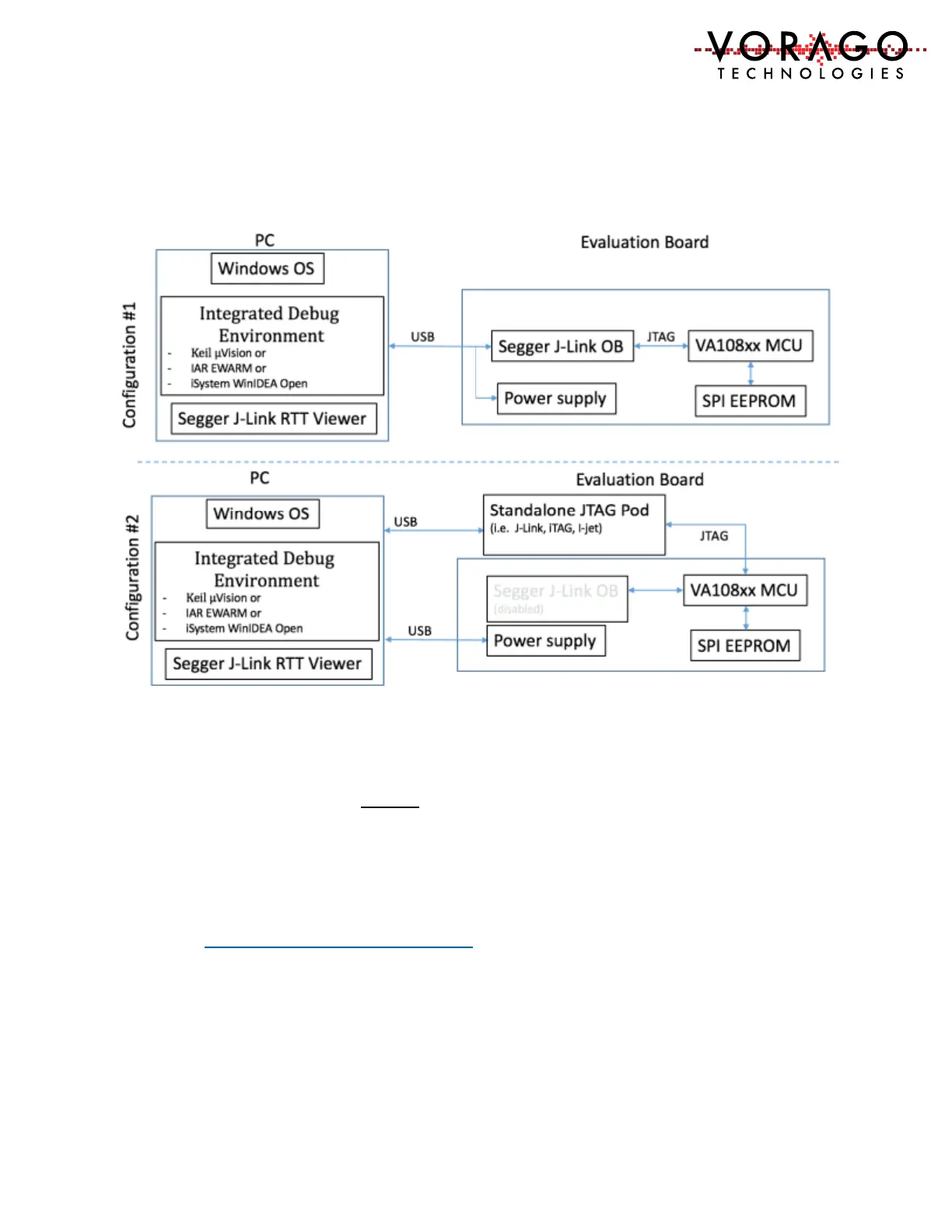

Figure 3 - Software interaction for REB1
2.1 Required Downloads
The following downloads are required to allow full functionality of the evaluation board. These
tools are evaluation versions and are free of charge. Three IDE options are provided. Only one
IDE is needed. Please download one IDE, the Segger J-Link software and the VORAGO REB1
software development code as outlined in the below sections.
2.1.1 Keil 𝜇Vision Integrated Development Environment
Keil offers an evaluation version of the IDE for free that will support compiled code of 32kbytes
and below. http://www.keil.com/arm/mdk.asp (approximately size = 400 Mbytes)
